VT460 / Smoke, humidity, temperature sensor
Physical description

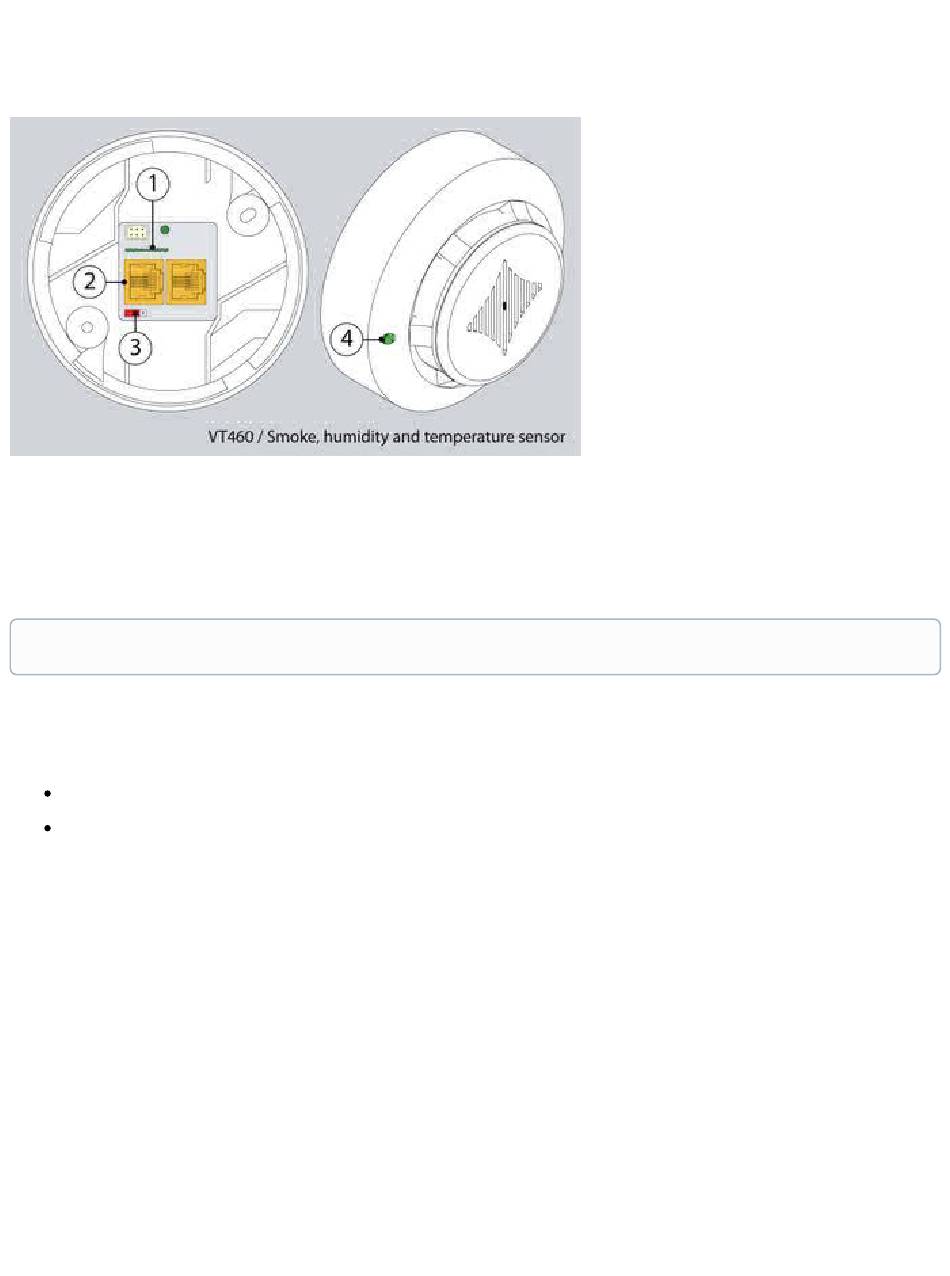

From the picture above:
1.
Temperature & humidity sensor
2.
CAN bus ports
3.
Pinheads (3 pins)
4.
LED (More info in "LEDs section" in the article:
The sensor can not be used on its own. It must be used together with Vutlan monitoring systems.
Installation procedure
Notes on assembly
It is vital to ensure that the smoke alarm is always assembled with the sensor head pointing downwards. In any other
position, there is no guarantee that smoke will be detected.
The smoke alarm must also be positioned so that it is ventilated with an adequate amount of air and the ventilation
slots are not covered.
Installation with the mounting plate provided
The sensor is installed using the mounting plate provided.
CAN devices connection
)

Advertisement

loading
Need help?

Need help?

Do you have a question about the VT460 and is the answer not in the manual?

Questions and answers

Summary of Contents for Vutlan VT460

  • Page 1 Pinheads (3 pins) LED (More info in "LEDs section" in the article: CAN devices connection The sensor can not be used on its own. It must be used together with Vutlan monitoring systems. Installation procedure Notes on assembly It is vital to ensure that the smoke alarm is always assembled with the sensor head pointing downwards. In any other position, there is no guarantee that smoke will be detected.
  • Page 2 Uncover the smoke detector head from the base. Attach smoke sensor base to the mounting plate using the M4 x 10 screws provided. Replace the sensor head onto the base and secure it by twisting until it locks home. Secure the mounting plate to the enclosure frame using the 4.8 x 19 screws. Remove the red protective cap! Drawings...
  • Page 4 After the system will start, configure the CAN bus, after configuration, the LED on the smoke detector will blink dimly once a second. Using the pictures below, install a jumper on VT460.
  • Page 5 a) For all sensors except the last sensor in the chain put "pinhead jumper" on pins: 2 and 3. TR is OFF. b) For the last sensor in the chain put "pinhead jumper" on pins: 1 and 2. TR is ON. Connecting CAN sensors CAN sensors and CAN units connection Connect CAN devices to any port CAN1 or CAN2 on the monitoring system using a cable supplied.
  • Page 6 Read more about Setting up CAN sensors. Used cable and limit line length The maximum length of the CAN line in Vutlan monitoring systems is 225 m due to limitations on the ohmic resistance of cables with RJ12 connectors. It is advisable to use two or three pairs of cables such as UTP Cat3.5.6 with 24AWG with a copper core. It is possible to use a...
  • Page 7 TR switched OFF. FR should always be OFF. TR switch is always the DP switch nearest to the CAN bus. Only older Vutlan models have an FR switch. pic.1.1: FR is OFF, TR is ON. pic.1.2: FR is OFF, TR is OFF.
  • Page 8 Go to panel "System Tree" to see the new devices or new sensors. The article numbers for CAN devices are VT4xx. If they do not appear, wait, or refresh.
  • Page 9 If after clicking the "Configure" button the poll is reset to the phrase "Update", then the line is not connected or the terminators on the bus are not agreed. It is necessary to check and change the condition of the TR terminators (See "TR termination switch"...
  • Page 10 VT408 / Extension unit VT408DIN / Extension unit VT430 / Rack control unit VT440 / Dry contacts unit VT460 / Smoke, humidity, temperature sensor VT490 / Humidity and temperature sensor VT450 / Pressure, humidity and temperature sensor CAN-12V-1A / CAN Power Supply...
  • Page 11 Operating humidity Min. 5% - Max. 95% (Non-Condensing) Power consumption 100 mW Status Indicators Red LED Max. distance m 225 m HS Code 8531 10 950 Components Manufactured in E.U. Special Features Daisy chain Mounting On the сeiling Safety instructions Please observe the valid regulations for installation in the country in which the smoke alarm is installed and operated, and the national regulations for accident prevention.
  • Page 12 Each station tab contains current information on the status of the node and a list of sensor modules connected to this node. The following operations can be carried out on the CAN bus node: Refresh - updates the current information on the status of the node Configure - launches configuration process of the nodes for CAN sensor modules connected to it, the old configuration is lost...
  • Page 13 Copyright: Vutlan s.r.o. Remote Infrastructure Monitoring and Control 43 ul.Svornosti, 821 06 Bratislava, Slovak Republic, E.U. www.vutlan.com...
