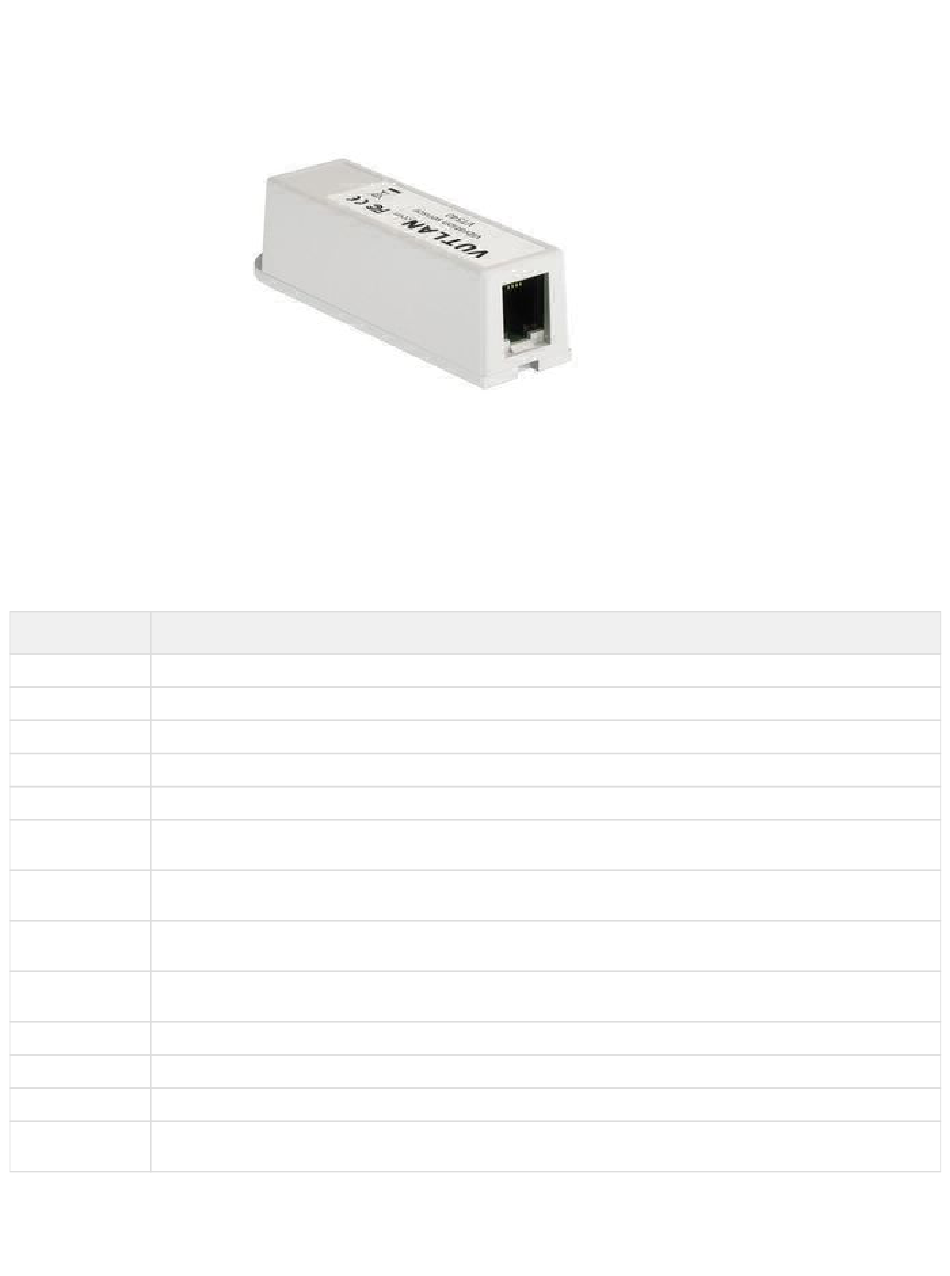

VT540 / Vibration sensor
Product page:
https://vutlan.com/analog-sensors/19-vt540-vibration.html
Function and purpose
Detects vibration. For installation on walls, windows, etc., the sensor controls vibration. For example, detects the breaking of
the window by an intruder if installed on the window glass.
Technical specifications
Feature
Description
Sensor type
Analog sensor
Dimensions
60×18×18 mm
Weight
60 g
Input
RJ-12 / RJ-11 (6p4c)
Outputs
RJ11 / RJ12 (6p4c)
Operating
-10 °C to +80 °C
temperature
Operating
5% to 95% (Non-Condensing)
humidity
Mounting
Mounting bracket, sticker, and screws are included. Installed on the surface where possible vibration is
possible. E.g. windows, doors, etc.
Power
60mW
consumption
Max. distance m
150 m
HS Code
9025 11 800
Components
Manufactured in E.U.
Daisy chain
No
possible
Package includes
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Vutlan VT540
Summary of Contents for Vutlan VT540
- Page 1 VT540 / Vibration sensor Product page: https://vutlan.com/analog-sensors/19-vt540-vibration.html Function and purpose Detects vibration. For installation on walls, windows, etc., the sensor controls vibration. For example, detects the breaking of the window by an intruder if installed on the window glass. Technical specifications...
- Page 2 Package content Description Sensor RJ11 6P4C telephone cable Screw B4,2 x 16 1pc Sticker 1pc Drawing...
- Page 3 Connecting vibration sensor The sensor uses a standard Vutlan analog RJS5 RJ11 sensor cable for connecting to the monitoring unit. Installation using a sticker and a bracket Option 1. There's a round bump at the bottom of the plastic enclosure of the sensor. It is used for fastening when the sensor is mounted together with the on walls using a screw.
- Page 4 Option 2. a) Stick the mounting sensor to the surface using the sticker. b) Stick a sensor to the surface using a screw. Option 3. Mount the sensor to the surface using a mounting bracket. The mounting bracket and the sensor can be either attached by the stickers or together with screws and nuts.
- Page 5 Analog sensor connection Connect the analog sensor by a supplied RJ-11 (6P4C) cable to any analog port "A1 .. A8" or "Sensor" port. The determination of the sensor type and connection will occur automatically. If strong electromagnetic interference is present, we recommend using a 3-pair cable CAN FTP for sensor connection! 6P4C RJ11 cable wiring/pinouts...
- Page 6 1- Yellow, 2- Green, 3- Red, 4 - Black Colors are true for this telephone cable. Both ends match the colors and pinouts (identical). Please refer to the RJ connectors comparison table:...
- Page 7 DC voltage monitor VT420 Converter 4-20mA VT500 Temperature sensor VT501 Outdoor temperature sensor VT510 Humidity sensor VT530 Access sensor VT540 Vibration sensor VT550 Wind velocity meter VT560 Smoke detector VT570 PIR sensor VT590 Spot water detector VT591 Water leak sensor Extending the number of analog sensors Using CAN extension "...
- Page 8 Configuring the sensitivity of the sensor The sensor is very sensitive. At times this may prove to be too sensitive. In this case, it is possible to lower the sensor's sensitivity: 1) Unplug the sensor from the cable. 2) Open sensor cover using a flat screw. 3) Take the two-pin jumper header out.
- Page 9 If the sensitivity is still too high, Vutlan can produce a custom vibration sensor will a much lesser sensitivity on demand. In this case, please contact the sales team. Sensor configuration Settings tab To configure a sensor, go to "Main menu" >> "System tree" and click on the sensor element in the tree. A modal window with...
- Page 10 All sensors include: Name The name is given by the system automatically. You can change it to anything you want. System ID of the element. Type Example: temperature, humidity, vibration. Class Examples: analog, CAN, switch, discrete. Hardware port The external port number on the device panel to which the sensor is connected (if the sensor is external). All sensors have threshold controls:...
- Page 11 In the picture above, the "Current value" equals 41.0 and is represented by the small triangle. Currently, the triangle is green because it is situated in the "Normal" range. Hence the sensor says that "Current state" is "Normal". This value is used by the system "Logic schemes"...
- Page 12 If the temperature goes just above 25.5 °C You will have a “Warning” state. Sometimes the temperature may stay at 25.5 °C and jump up and down by 0.1-0.3 °C. In this case, You will get too many notifications that the sensor is showing a Warning or Normal state. In this case, we need to use a Hysteresis.
- Page 13 Each fuel tank has its own formula for volume vs height. Please see this useful resource for finding out such a formula. https://www.calculatorsoup.com/calculators/construction/tank.php In this can, You need to use non-linear formula. Copyright: Vutlan s.r.o. (LLC) Remote Infrastructure Monitoring and Control 43 ul.Svornosti, 821 06 Bratislava, Slovak Republic...
