VT408DIN / Extension unit
Content
Content
Function and purpose
Physical description
Product page:
VT408DIN / Sensor extension unit
Datasheet page:
https://vutlan.atlassian.net/wiki/spaces/DEN/pages/edit-v2/1340440577
Function and purpose
Increases the number of analog sensors connected to any Vutlan monitoring unit. Each unit connected adds 8 analog
sensors. Connects on CAN port and allows further CAN daisy chain connection. Sensors connected to the extension unit
appear in the system automatically.
Up to x24 VT408 units can be connected on a CAN bus line.
additional power on a CAN bus line.

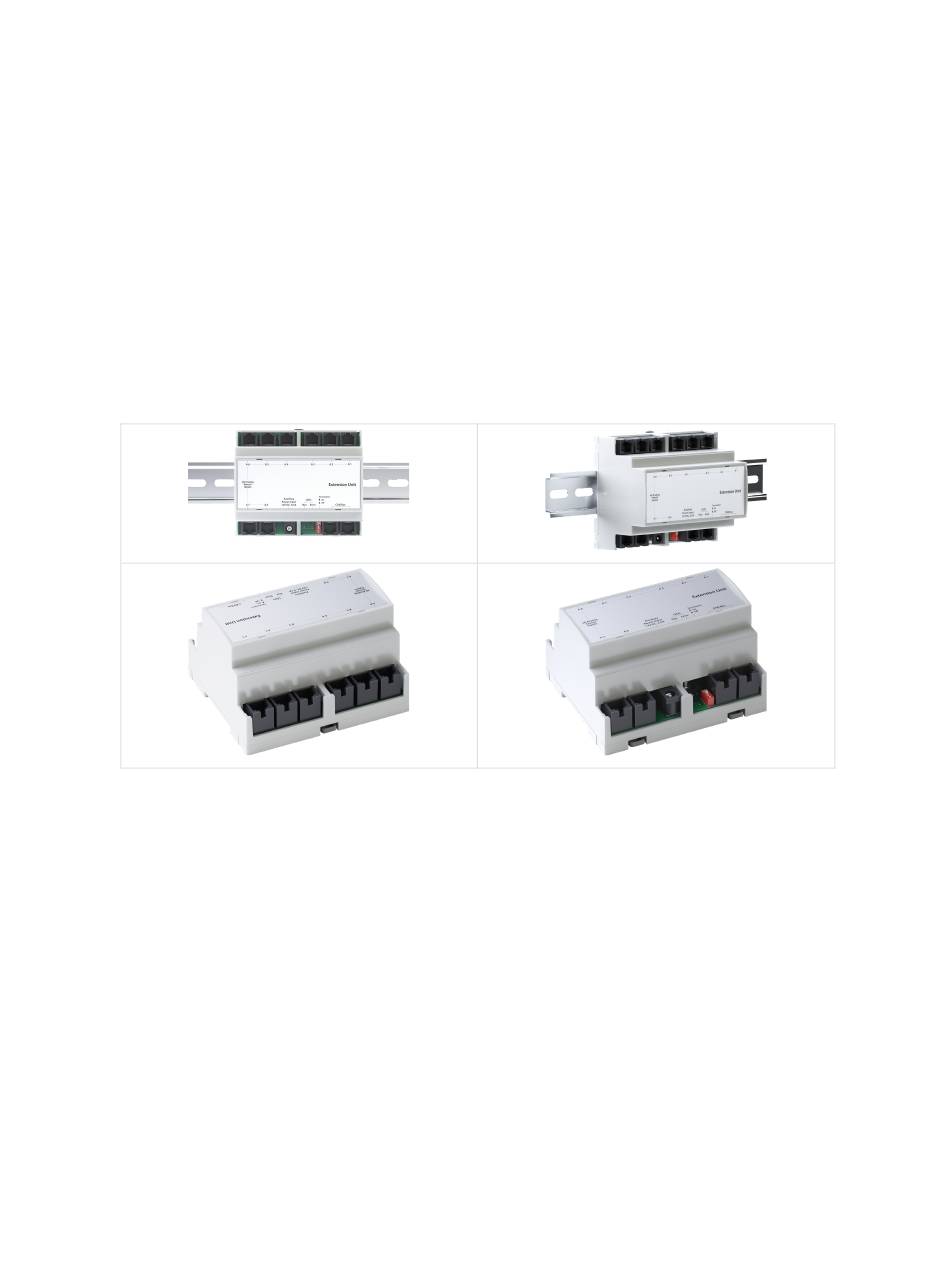

Physical description
Module VT408DIN is designed to expand the number of analog sensors connected to monitoring systems.
CAN-12V-1A / CAN Power Supply
has to be used to provide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VT408DIN and is the answer not in the manual?

Questions and answers

Related Manuals for Vutlan VT408DIN

Summary of Contents for Vutlan VT408DIN

  • Page 1: Table Of Contents

    Function and purpose Increases the number of analog sensors connected to any Vutlan monitoring unit. Each unit connected adds 8 analog sensors. Connects on CAN port and allows further CAN daisy chain connection. Sensors connected to the extension unit appear in the system automatically.
  • Page 2 1. "A1..A8" - x8 RJ11 6P4C analog sensor input ports with auto-sensing. 2. "Power" - for connection of external power supply 12V DC, 05A.

  • Page 3: Function

    - x2 equivalent digital RJ11 6P4C connectors for the connection to the master module. Function VT408DIN module is developed to expand the number of analog sensors connected to the monitoring system. The picture below illustrates the expansion example: Mounting DIN rail mounting 1.

  • Page 4: Din Rail Unmounting

    DIN rail unmounting 1. Use a screwdriver and pull the x3 hooks on the enclosure outward. 2. Pull the enclosure away from the DIN rail.

  • Page 5: Installation

    The analog sensors connected to the VT408 are configured in the same way as the sensors connected to the monitoring module. Setting up CAN included page: https://vutlan.atlassian.net/wiki/spaces/DEN/pages/1016351/Setting+up+CAN Configuring VT408 Included page: https://vutlan.atlassian.net/wiki/spaces/DEN/pages/1999038/Configuring+VT408 Copyright: Vutlan s.r.o. (LLC) Remote Infrastructure Monitoring and Control 43 ul.Svornosti, 821 06 Bratislava, Slovak Republic SE mini reader...
