Data General DASHER D100 User Reference page 67

Keyboard
Interface
Data Format
Printer / Split Baud
Power Consumption
Display Refresh Rate
Display Scan
Line Cord
Keyboard Cable

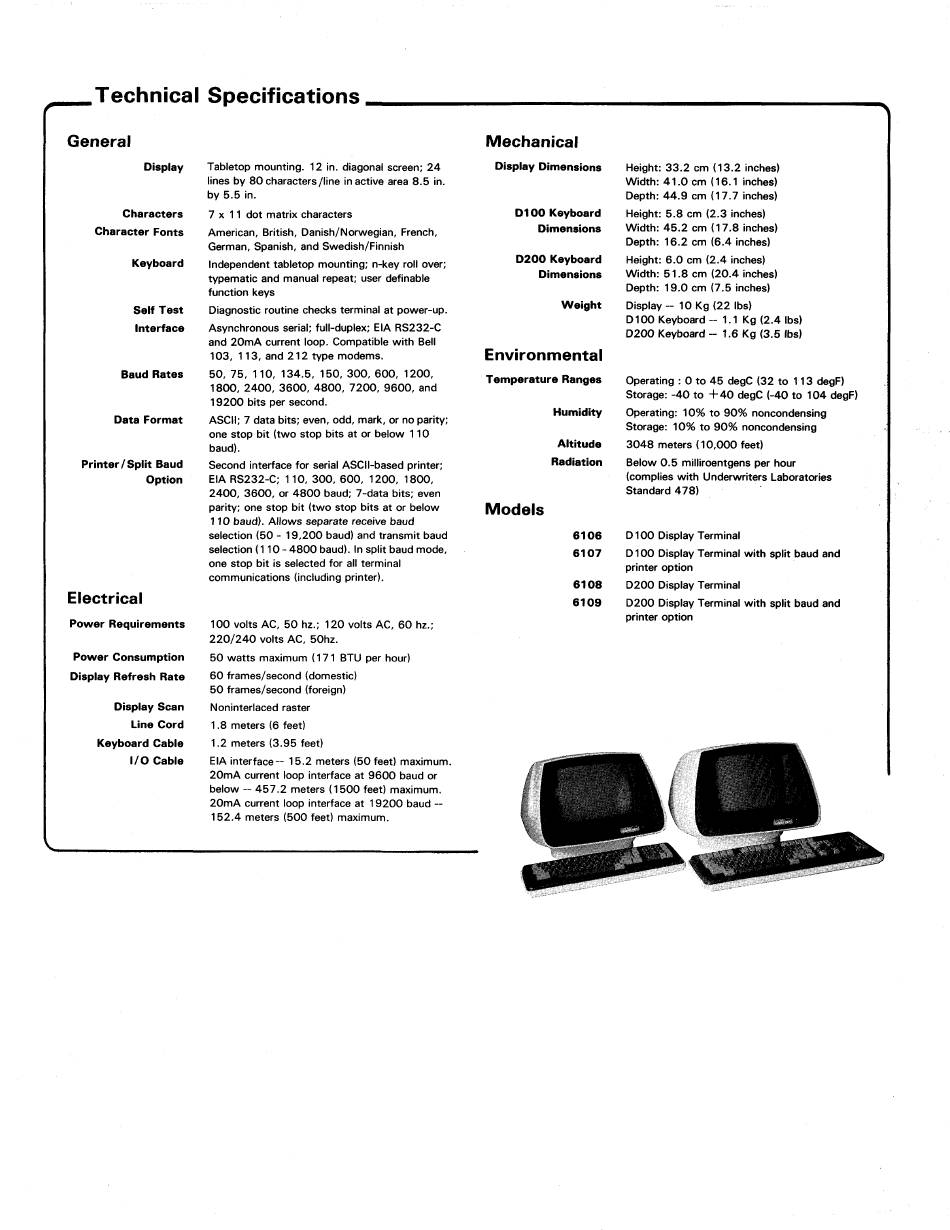

Technical Specifications
Tabletop mounting. 12 in. diagonal screen; 24
lines by 80 characters /line in active area 8.5 in.
by 5.5 in.
7 x 11 dot matrix characters
American, British, Danish/Norwegian, French,
German, Spanish, and Swedish/Finnish
Independent tabletop mounting; n-key roll over;
typematic and manual repeat; user definable
function keys
Diagnostic routine checks terminal at power-up.
Asynchronous serial; full-duplex; EIA RS232-C
and 20mA current loop. Compatible with Bell
103, 113, and 212 type modems.
50, 75, 110, 134.5, 150, 300, 600, 1200,
1800, 2400, 3600, 4800, 7200, 9600, and
19200 bits per second.
ASCH; 7 data bits; even, odd, mark, or no parity;
one stop bit (two stop bits at or below 110
Second interface for serial ASCIl-based printer;
EIA RS232-C; 110, 300, 600, 1200, 1800,
2400, 3600, or 4800 baud; 7-data bits; even
parity; one stop bit (two stop bits at or below
110 baud). Allows separate receive baud
selection (50 - 19,200 baud) and transmit baud
selection (110 - 4800 baud). In split baud mode,
one stop bit is selected for all terminal
communications (including printer).
100 volts AC, 50 hz.; 120 volts AC, 60 hz.;
220/240 volts AC, 50hz.
50 watts maximum (171 BTU per hour)
60 frames/second (domestic)
Noninterlaced raster
1.2 meters (3.95 feet)
EIA interface-- 15.2 meters (50 feet) maximum.
20mA current loop interface at 9600 baud or
below -- 457.2 meters (1500 feet) maximum.
20mA current loop interface at 19200 baud --
152.4 meters (500 feet) maximum.
D100 Keyboard
Dimensions
D200 Keyboard
Dimensions
Weight
Temperature Ranges
Humidity
6107
Width: 41.0 cm (16.1 inches)
Depth: 44.9 cm (17.7 inches)
Height: 5.8 cm (2.3 inches)
Width: 45.2 cm (17.8 inches)
Depth: 16.2 cm (6.4 inches)
Height: 6.0 cm (2.4 inches)
Width: 51.8 cm (20.4 inches)
Depth: 19.0 cm (7.5 inches)
Display -- 10 Kg (22 Ibs)
Operating : 0 to 45 degC (32 to 113 degF)
Storage: -40 to +40 degC (-40 to 104 degF)
Operating: 10% to 90% noncondensing
Storage: 10% to 90% noncondensing
(complies with Underwriters Laboratories
D100 Display Terminal
D100 Display Terminal with split baud and
printer option
D200 Display Terminal
