Operational Checkout - Data General DASHER D100 User Reference

CAUTION Hazardous voltages. Wait at least 5 minutes after
Support
1.Turn off terminal, unplug power cord, and wait at
least five minutes.
2.Remove the power ON/OFF knob by pulling it
straight out. Push switch in to the OFF position.
3.Loosen the two screws underneath the front of
4.While holding the bottom of the case, lift the top of
the case up until the support wires lock in place.
DG-06386
Enable 1
Disable 0
XN
POSITION O
Switches
23 4
Printer Interface and/or
iDisplay Transmit Baud Rate
3600
2400
1800
600
300
110
O o o o s o w u aO 0 0 , 3 O C O u 4 s o r O 0 7 0 2 0 —
To close case:
1.Unlock the support wires by pushing out on the top
of each wire.
2.Lower the top of the case until it is in closed position.
3.Replace the power ON/OFF knob.
4.Tighten the two screws underneath the front of the
case.
5.Plug in the power cord.

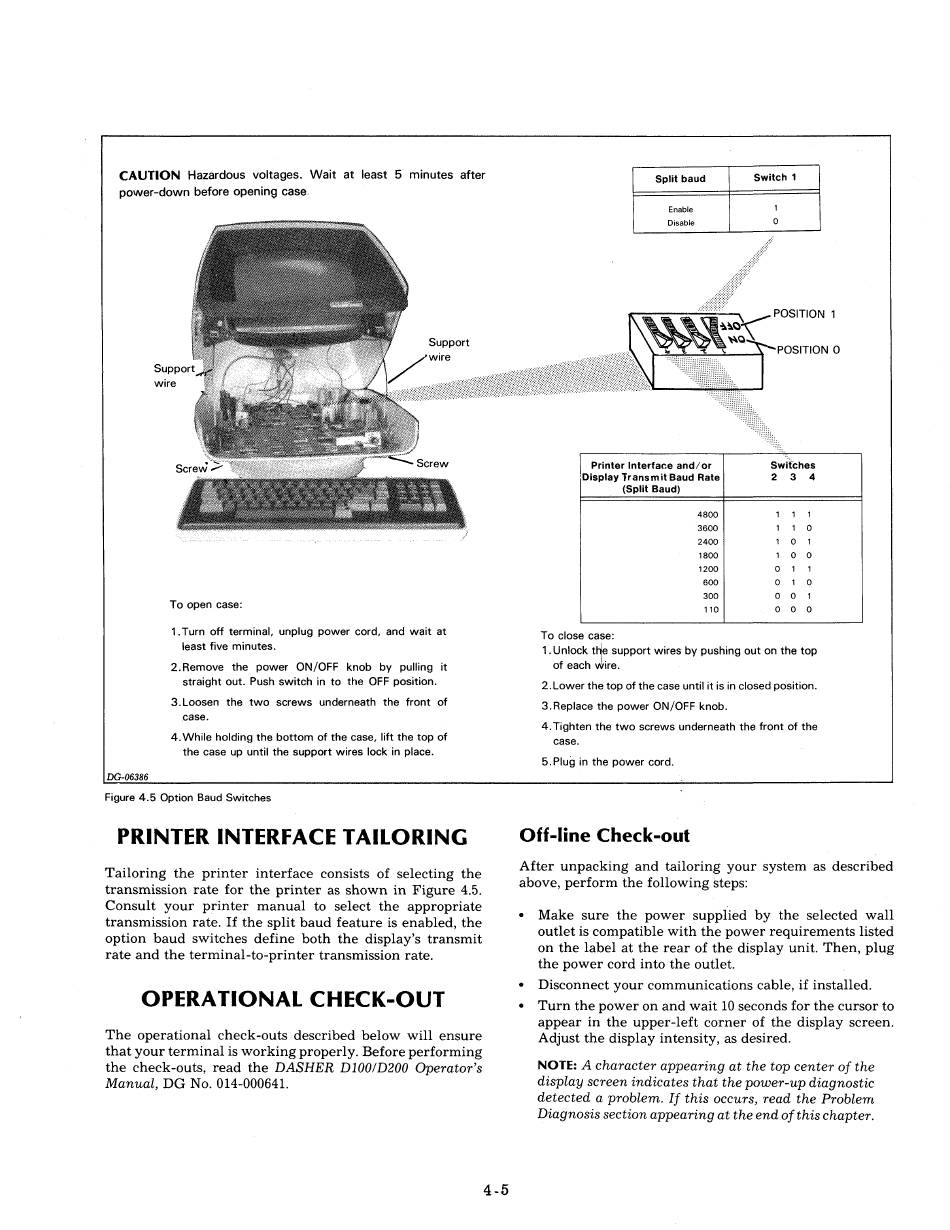

Figure 4.5 Option Baud Switches
PRINTER INTERFACE TAILORING
Tailoring the printer interface consists of selecting the
transmission rate for the printer as shown in Figure 4.5.
Consult your printer manual to select the appropriate
transmission rate. If the split baud feature is enabled, the
option baud switches define both the display's transmit
rate and the terminal-to-printer transmission rate.
OPERATIONAL CHECK-OUT
The operational check-outs described below will ensure
that your terminal is working properly. Before performing
the check-outs, read the DASHER D100/D200 Operator's
Manual, DG No. 014-000641.
Off-line Check-out
After unpacking and tailoring your system as described
above, perform the following steps:
e Make sure the power supplied by the selected wall
outlet is compatible with the power requirements listed
on the label at the rear of the display unit. Then, plug
the power cord into the outlet.
e Disconnect your communications cable, if installed.
e Turn the power on and wait 10 seconds for the cursor to
appear in the upper-left corner of the display screen.
Adjust the display intensity, as desired.
