DIMENSIONS: POWER REQUIREMENTS:
Display (Domestic)
; . Voltage: 85-132 VAC
Width Depth Height
Millimeters 410 449 332 Fred: A763 He
Inches 161 17.7 13.2 Current: 1.5 Amps at 120 VAC, 60 Hz
Startup Surge: 15 Amps at 120 VAC, 60 Hz
D100 Keyboard: for 2 cycles
(Export)
Width Depth Height Voltage: 187-264 VAC
Millimeters 452 162 58 Freq.: 47-63 Hz
Inches 17.8 6.4 2.3 Current: 0.75 Amps at 240 VAC, 50 Hz
D200 Keyboard: for 2 cycles
Width Depth Height OPERATING ENVIRONMENT:
Millimeters 518 190.5 60 Temperature (max) O% 45°C 32° 113°F
Inches 20.4 7.5 2.4 Humidity (max) 10% - 90% non-condensing
WEIGHT: kg Ibs CABLES:
Display: 10 22 Primary Power Mating
D100 keyboard: 1.1 2.4 Length Conn Conn
D200 keyboard: 1.6 3.5 .
Domestic 60Hz 1.8m(6') 5-15P 5-15R
HEAT OUTPUT (Max.): Watts BTU/hr Export 50Hz 1.8m(6') — —

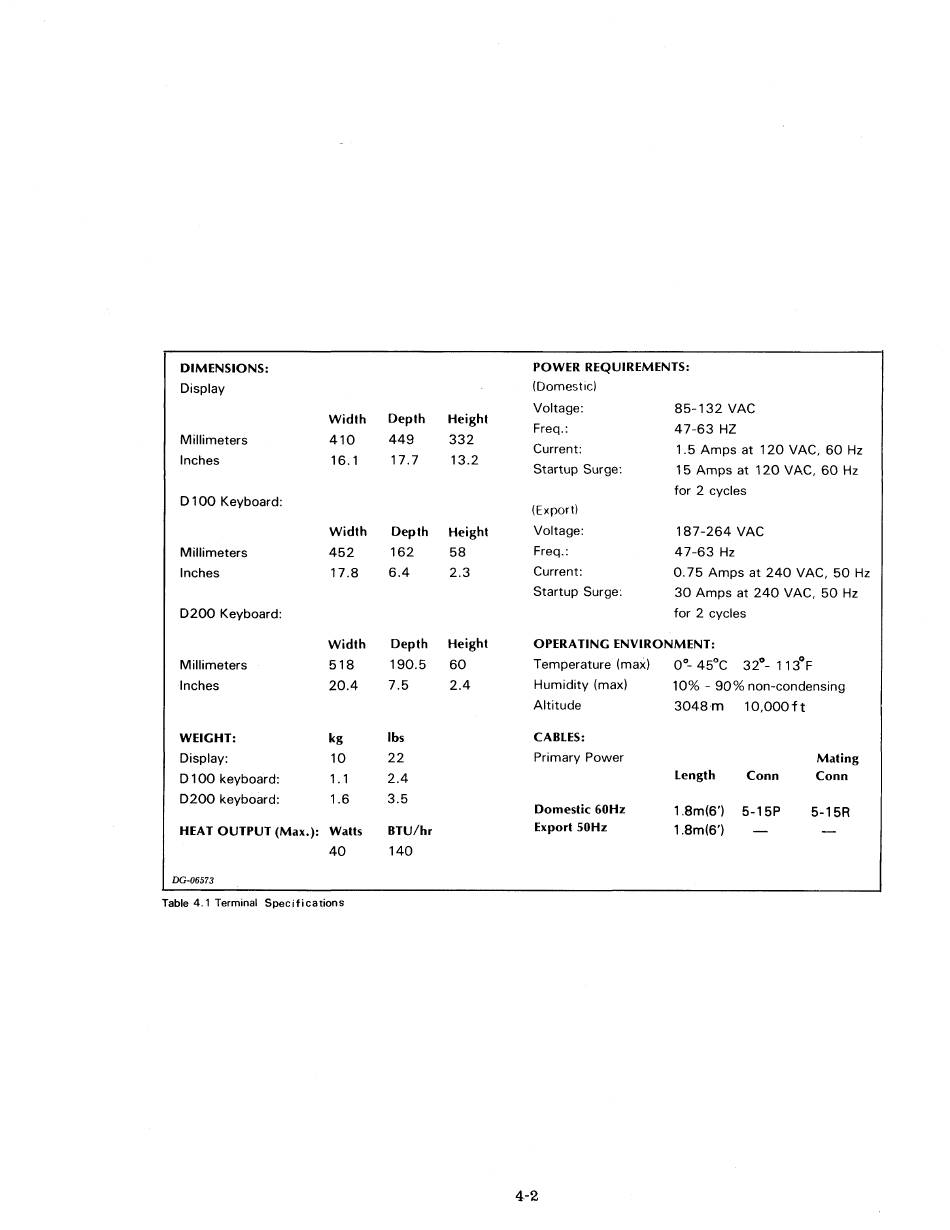

Table 4.1 Terminal Specifications
4-2
