Data General DASHER D100 User Reference page 12

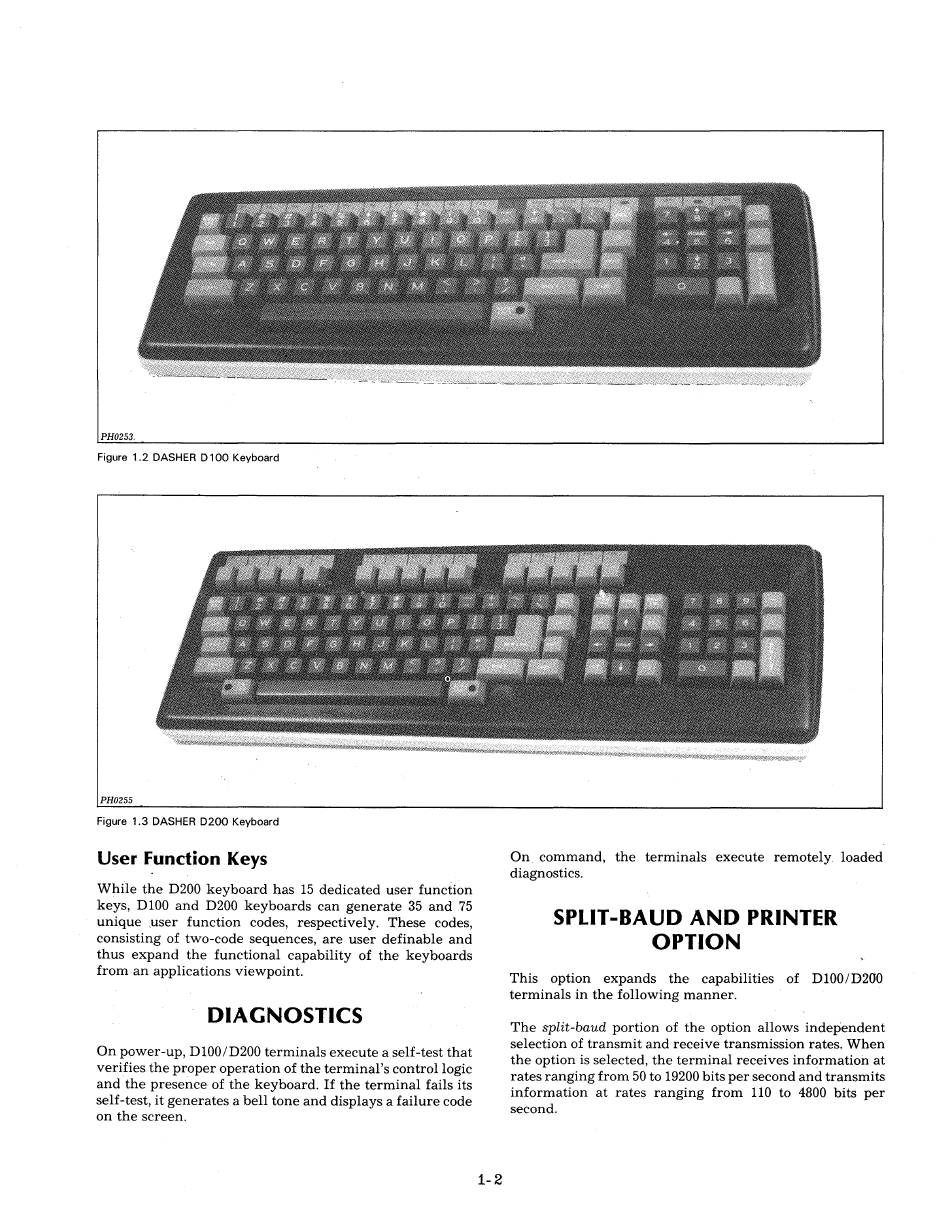

Figure 1.2 DASHER D100 Keyboard
PH0255
Figure 1.3 DASHER D200 Keyboard
User Function Keys
While the D200 keyboard has 15 dedicated user function
keys, D100 and D200 keyboards can generate 35 and 75
unique user function codes, respectively. These codes,
consisting of two-code sequences, are user definable and
thus expand the functional capability of the keyboards
from an applications viewpoint.
On power-up, D100/D200 terminals execute a self-test that
and the presence of the keyboard. If the terminal fails its
self-test, it generates a bell tone and displays a failure code
1-2
On. command,
diagnostics.
the terminals execute remotely. loaded
SPLIT-BAUD AND PRINTER
OPTION
This option expands the capabilities of D100/D200
terminals in the following manner. .
The split-baud portion of the option allows independent
selection of transmit and receive transmission rates. When
the option is selected, the terminal receives information at
rates ranging from 50 to 19200 bits per second and transmits
information at rates ranging from 110 to 4800 bits per
