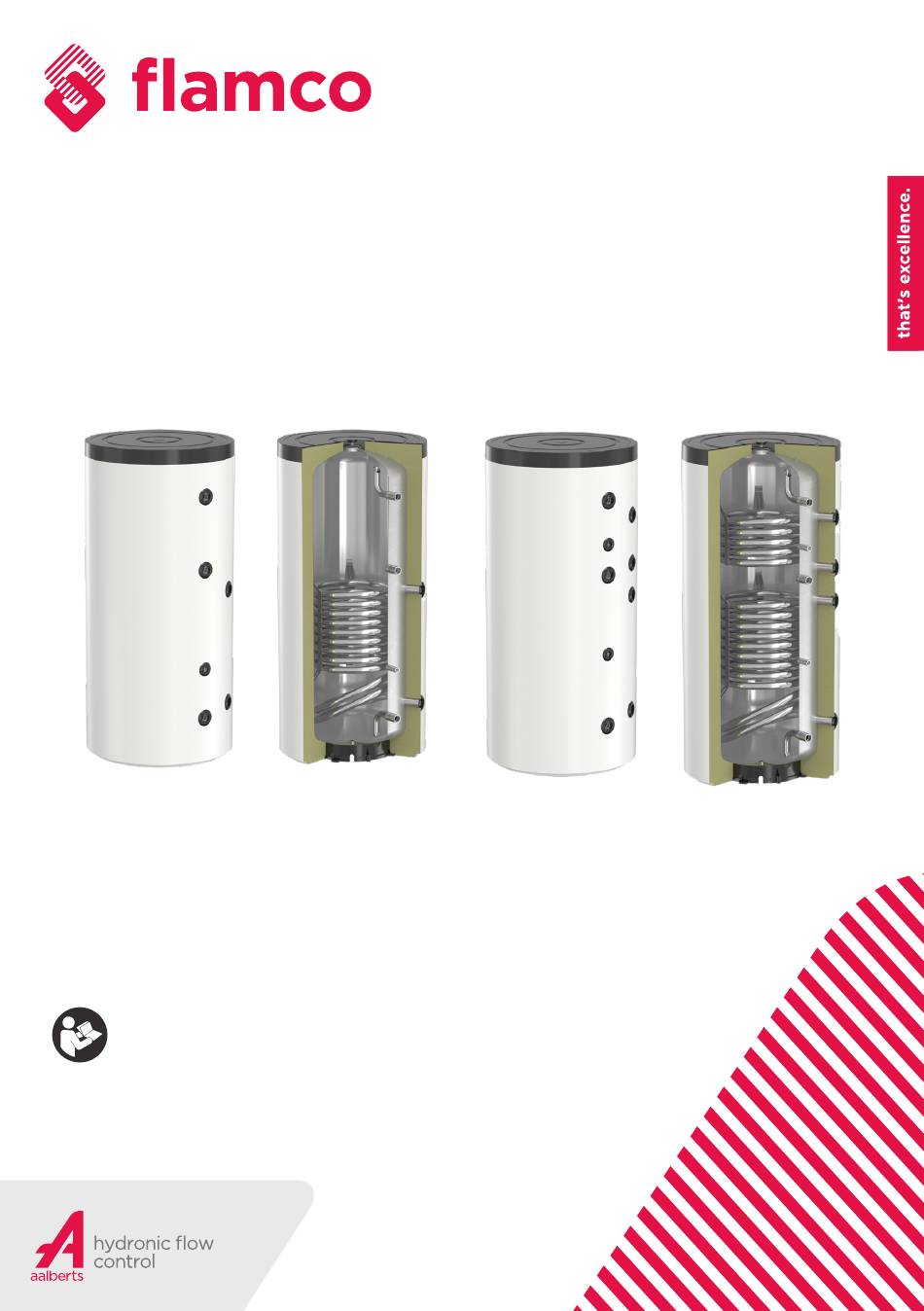

- Page 1 Flextherm Stainless Steel Storage vessels & water heaters Installation and operationg manual...
-
Page 2: Table Of Contents
Table of contents Technical data ....................5 2. Safety requirement ................... 6 3. Installation ..................... 7 4. Description of connection ..............8 5. Commissioning ................... 10 6. Inspection & maintenance............... 11 We reserve the right to change designs and technical specifications of our products. - Page 3 Flextherm Stainless Steel Storage vessels & water heaters...
- Page 4 We reserve the right to change designs and technical specifications of our products.
-
Page 5: Technical Data
Flextherm Stainless Steel Storage vessels & water heaters 1. Technical data Tanks and indirectly heated stainless steel tank AISI 316L with up to two fixed welded tube heat exchangers in stainless steel AISI 316L too. Complete with thermal insulation with variable thickness from 50 to 100 mm in accordance with the size. All the units are equipped by an inspection flange on the top. -
Page 6: Safety Requirement
2. Safety requirement Read these instructions carefully before commencing installation. For any additional questions, please consult our customer service department (see contact details). WARNING: Do not expose the insulation to open fire! We reserve the right to change designs and technical specifications of our products. -
Page 7: Installation
Flextherm Stainless Steel Storage vessels & water heaters 3. Installation Installation, commissioning and maintenance must be carried out by specialists according to the applicable regulations (including EN 1717, DIN 1988, EN 12828 and VDI 2035, the relevant regulations for local distributors, national legislation and other regulations). -
Page 8: Description Of Connection
4. Description of connection See the sticker applied to the specific tank. Flextherm LS-E KW – Cold water Inlet WW - Hot water Outlet Z – Recerculation PV – Boiler supply PR – Boiler return s – Probe for sensor HZL –... - Page 9 Flextherm Stainless Steel Storage vessels & water heaters Flextherm Duo HLS-E Solar KW – Cold water Inlet WW - Hot water Outlet Z – Recerculation PVl – Boiler supply PRl – Boiler return PVu – Solar collector supply PRu – Solar collector return s –...
-
Page 10: Commissioning
5. Commissioning The entire system must be thoroughly flushed before commissioning. The system may only be set up in frost-free rooms and a surface that is sufficiently able to bear the load of the completely filled tank. Any unused connections must be professionally sealed. A drainage device is to be provided at the cold water inlet. -
Page 11: Inspection & Maintenance
Flextherm Stainless Steel Storage vessels & water heaters 6. Inspection & maintenance No liability shall be accepted for damage that is caused by failure to follow the installation and operating instructions. The boiler must be installed to allow easy access for maintenance, operation, repairs or replacement. - Page 12 Contact us ! We supply products for the installation industry in more than 70 countries. This is done from Flamco sales offices and via distributors who know the local market, and can give you the right advice at all times.
