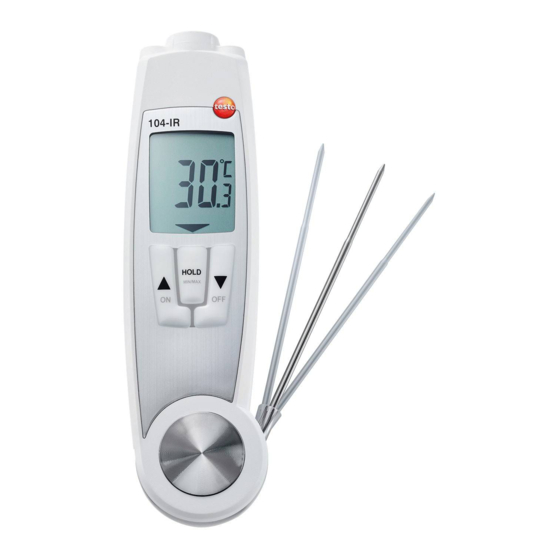

TESTO 104-IR BT Instruction Manual
Combined infrared and penetration thermometer
Hide thumbs
Also See for 104-IR BT:
- Instruction manual (17 pages) ,
- Quick start manual (2 pages) ,
- Quick start manual (2 pages)
Subscribe to Our Youtube Channel
Related Manuals for TESTO 104-IR BT
Summary of Contents for TESTO 104-IR BT

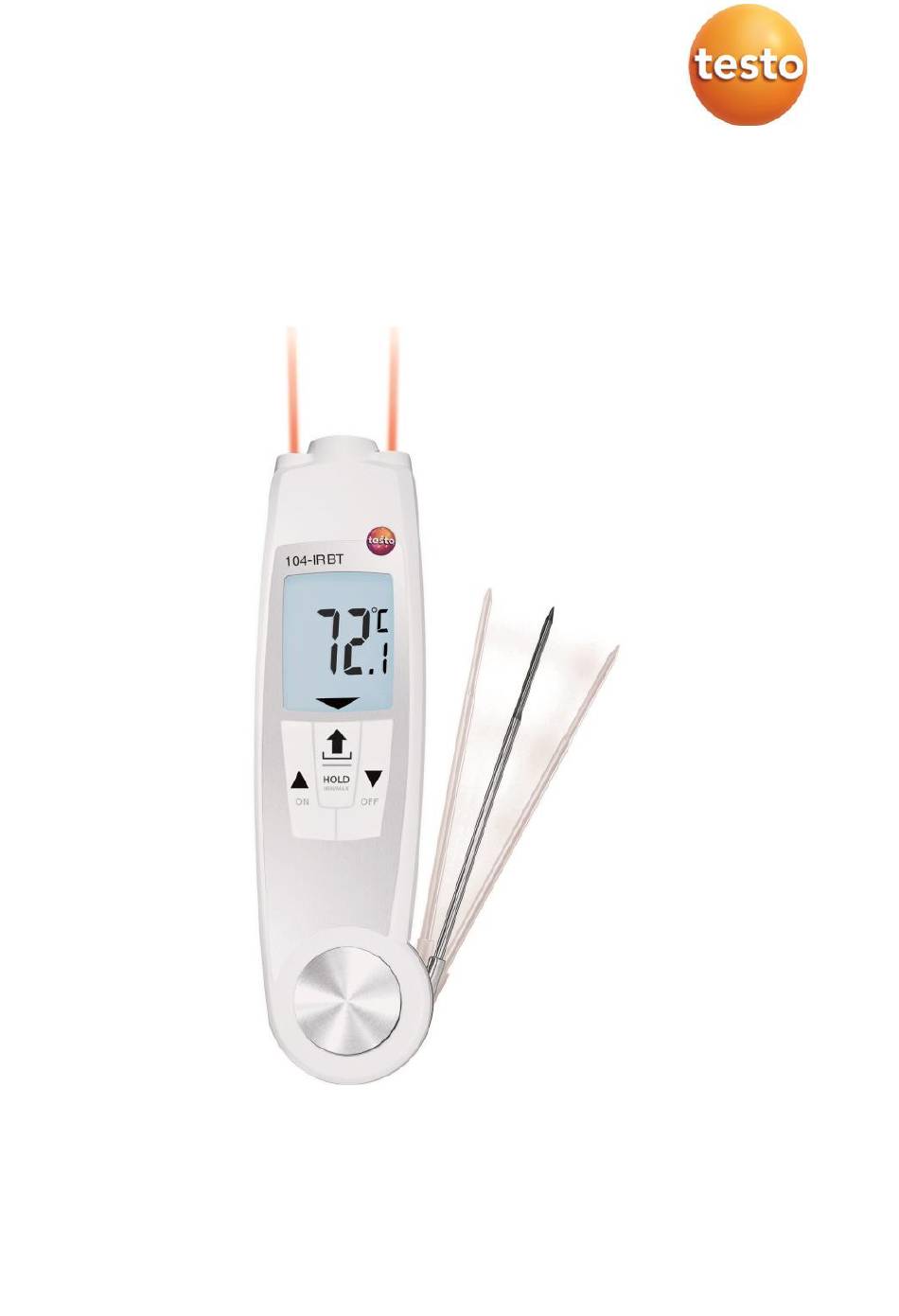

- Page 1 104-IR BT Combined infrared and penetration thermometer 0560 1045 Instruction manual...
-
Page 3: Table Of Contents
Measuring control points ..............19 Exporting readings ................20 Maintaining the product ..............21 Inserting / changing batteries ............... 21 Cleaning the instrument ............... 21 Technical data for testo 104-IR BT ............ 22 ® 10.1 Bluetooth module ................22 10.2 General technical data ................. - Page 4 Contents Tips and assistance ................24 11.1 Questions and answers ............... 24...
-
Page 5: About This Document
Only perform maintenance and repair work on this instrument that is described in this documentation. Follow the prescribed steps exactly when doing the work. • Use only original spare parts from Testo. Batteries • Improper use of batteries may cause the batteries to be destroyed, or lead to injury due to current surges, fire or escaping chemicals. -
Page 6: Disposal
• At the end of its useful life, deliver the product to the separate collection point for electric and electronic devices (observe local regulations) or return the product to Testo for disposal. • WEEE Reg. No. DE 75334352... -
Page 7: Product-Specific Information
Only open the measuring instrument if this is expressly described in the documentation for the purposes of maintenance or servicing. 4 Intended use The testo 104-IR BT is a robust food thermometer. The product is designed for the following tasks/areas: •... -
Page 8: Product Description
[▼]: switch to contact measurement • [HOLD/ MIN/ MAX/ ]: holds reading, shows minimum / maximum value, sends readings to the ® testo Smart App (Bluetooth Battery Fold-out/fold-away immersion/penetration probe, compartment folding out the probe switches the instrument on. (on rear) - Page 9 5 Product description CAUTION Laser radiation! Class 2 laser - Do not look into the laser beam Explanation of icons Refer to instruction manual Do not dispose of old instruments with household waste ® Symbol of the Bluetooth Special Interest Group (SIG) Declaration of conformity: products marked with this symbol comply with all applicable Community regulations of the European Economic Area.
-
Page 10: First Steps
6 First steps First steps Inserting / changing batteries WARNING Serious risk of injury to the user and/or destruction of the instrument. There is a risk of explosion if the batteries are replaced with the wrong type. - Only use non-rechargeable alkaline batteries. The instrument is switched off. -
Page 11: Getting To Know The Product
6 First steps Getting to know the product 6.2.1 Switching the instrument on and off Switching on via fold-out probe Fold out the probe. All display segments light up briefly. Contact measurement is enabled ( lights up). Switching on/off via control keys Switch instrument on: press the [ON] key. -
Page 12: Implementing Settings
[▼]. The instrument switches to IR measurement. ® Bluetooth is enabled and the instrument is visible to the testo Smart App. When the connection is established, a beep sounds and the ® Bluetooth symbol is shown on the display. -
Page 13: Establishing A Bluetooth Connection
6 First steps ® Establishing a Bluetooth connection The instrument can be connected to the testo Smart App via ® Bluetooth connection The measuring instrument is switched on. ✓ ® 6.3.1 Establishing a Bluetooth connection to the testo Smart App ®... -
Page 14: Using The Product
7 Using the product 7 Using the product Changing the measuring mode The measuring instrument is switched on. ✓ Contact measurement → IR measurement: press [▲]. IR measurement → contact measurement: press [▼]. Measuring 7.2.1 Information on infrared (IR) measurement Measuring method IR measurement is a visual measurement: •... -
Page 15: Carrying Out An Ir Measurement
* optimized measuring distance; in italics = laser; not in italics = measuring range 7.2.2 Carrying out an IR measurement ® To transfer the displayed reading to the testo Smart App in Bluetooth mode, press ✓ Instrument is switched on, IR measurement is enabled ( lights ®... -
Page 16: Information On Contact Measurement
• Avoid using in aggressive acids or alkalis. 7.2.4 Carrying out a contact measurement ® To transfer the displayed reading to the testo Smart App in Bluetooth mode, press Instrument is switched on, contact measurement is enabled ( ✓ ®... -
Page 17: Controls Via Testo Smart App
8 Controls via testo Smart App 8 Controls via testo Smart App With the testo Smart App, you can extend the range of functions of your testo 104-IR BT and save readings digitally, create reports and make settings. There is a separate measurement program in the testo Smart App for digital CP/CCP control point measurements and documentation. -
Page 18: Overview Of Temperature Control Points (Cp/Ccp) Configuration Page
8 Controls via testo Smart App Overview of temperature control points (CP/CCP) configuration page Possibility to define certain 1 Choice of applications measurement programs as favourites Program for temperature Possibility to define the actual view control points as default site... -
Page 19: Overview Of Operating Controls
8 Controls via testo Smart App Overview of operating controls Switch between the views: - Live = actual contol point 1 Choice of applications - Overview = Overview of selected control points Measurement results (Measured value and alarm interpretation are... -
Page 20: Configuring Control Points
8 Controls via testo Smart App Configuring control points Temperature Control Points (CP/CCP) measurement program makes it possible to create multiple measuring points and then measure them one after the other in a measurement round. Click in the testo Smart App. -
Page 21: Measuring Control Points
8 Controls via testo Smart App Measuring control points Temperature Control Points (CP/CCP) measurement program allows you to measure multiple selected measuring points one after the other in one session and to add a comment and/or a signature to the measurement results. -
Page 22: Exporting Readings
8 Controls via testo Smart App If necessary, enter a signature beforehand. Measurement finalized menu is displayed. The readings are now available for reporting. Exporting readings Determined measurement results can be displayed and exported as reports in PDF format for one or more control points and freely definable time periods. -
Page 23: Maintaining The Product
9 Maintaining the product 9 Maintaining the product Inserting / changing batteries WARNING Serious risk of injury to the user and/or destruction of the instrument. There is a risk of explosion if the batteries are replaced with the wrong type. - Only use non-rechargeable alkaline batteries. -
Page 24: Technical Data For Testo 104-Ir Bt
10 Technical data for testo 104-IR BT Technical data for testo 104-IR BT ® 10.1 Bluetooth module The use of a wireless module is subject to the regulations and stipulations of the relevant country of use and the module may only be used in countries for which a national certification has been granted. -
Page 25: Contact Measurement (Penetration Probe)
10 Technical data for testo 104-IR BT 10.3 Contact measurement (penetration probe) Feature Value Sensor type Measuring range -50 to +250 °C Accuracy (± 1 digit) ±1.0 °C (-50.0 to -30.1 °C) ±0.5 °C (-30.0 to +99.9 °C) ±1% of the measuring range (+100.0 to +250.0 °C) Solution 0.1 °C/ °F/ °R... -
Page 26: Tips And Assistance
1 min after switching on in IR measurement mode. If we have not been able to answer your question: please contact your local dealer or Testo Customer Service. See the back of this document or the www.testo.com/service-contact web page for contact details. - Page 28 Testo SE & Co. KGaA Celciusstrasse 2 79822 Titisee-Neustadt Germany Phone: +49 (0)7653 681-0 E-mail: info@testo.de Internet: www.testo.com 0970 1042 en 02 – 09.2024...
