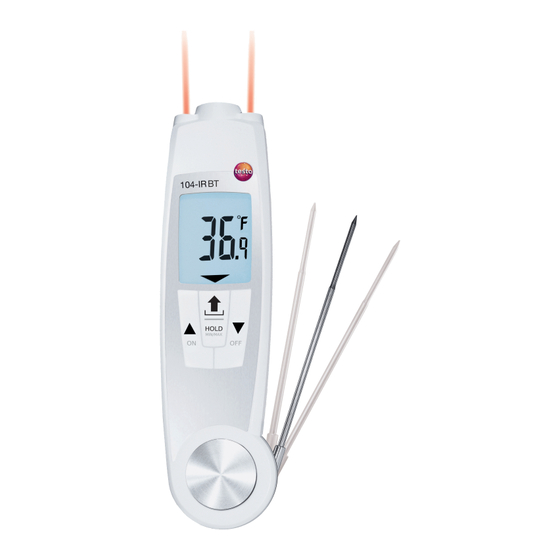

Combined infrared and penetration thermometer
Hide thumbs Also See for 104-IR BT:
Table of Contents

Advertisement

Quick Links

Download this manual
testo 104-IR BT
Combined infrared and penetration thermometer
Instruction manual
en-US

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 104-IR BT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TESTO 104-IR BT

Summary of Contents for TESTO 104-IR BT

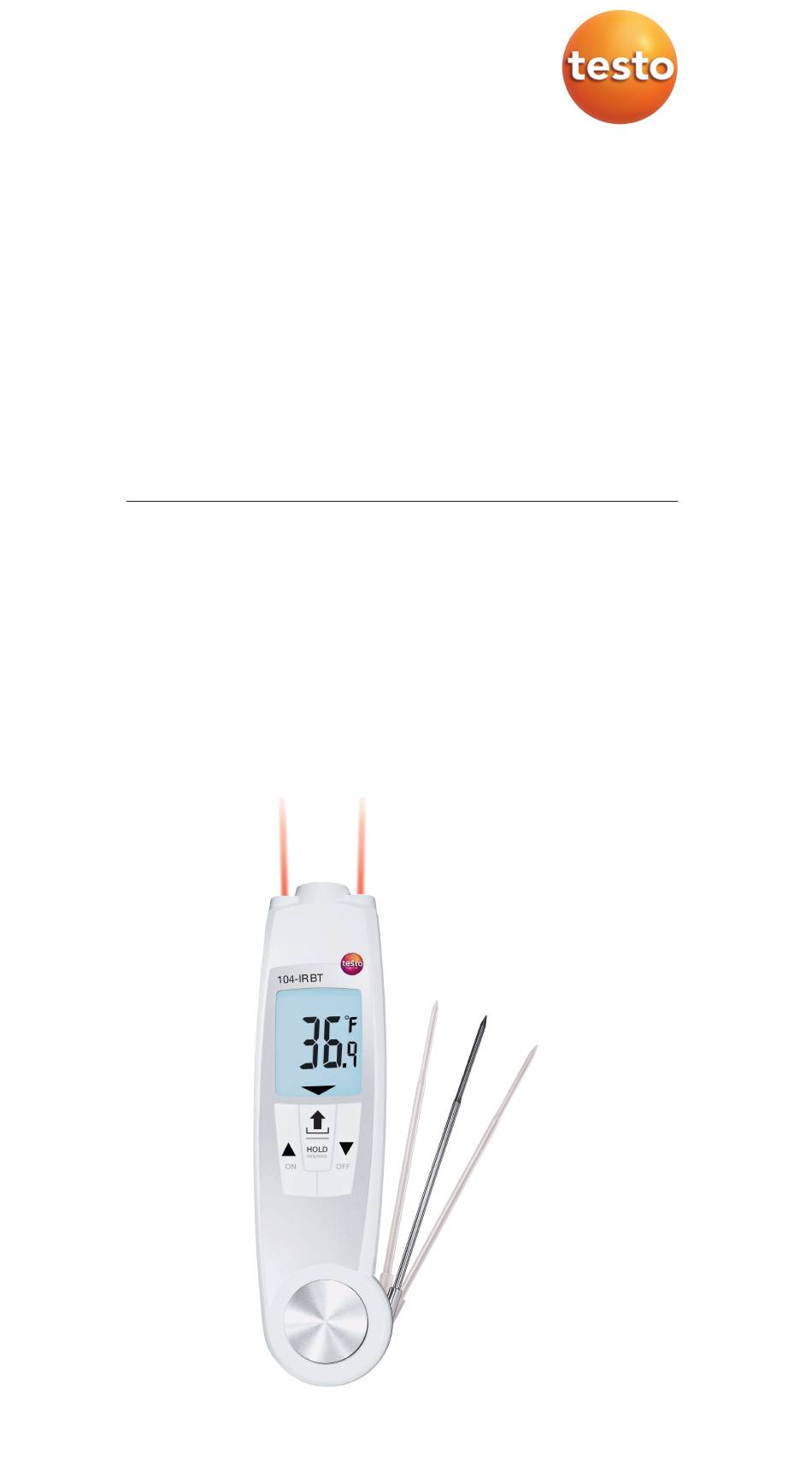

  • Page 1 104-IR BT Combined infrared and penetration thermometer Instruction manual en-US...

  • Page 2: General Information

    We will ensure that it is disposed of in an environmentally friendly manner. 3. Intended use The testo 104-IR BT is a robust food thermometer. The product is designed for the following tasks/areas: · Food sector: production, food service, spot check measurement, incoming goods.

  • Page 3: Technical Data

    Changes The FCC demands that the user be informed that any changes or modifications to the instrument that are not explicitly approved by Testo AG may void the user’s right to use this instrument.

  • Page 4: General Technical Data

    207 g / 0.433lbs (incl. batteries) Standards EN 13485 EC Directive 2014/30/EC Warranty 2 years, warranty terms: see www.testo.com/warranty Information on standards This product complies with the EN 13485 standard for penetration measurement. Suitability: S, T (storage, transportation) Environment: E (transportable thermometer) Accuracy class: 0.5...

  • Page 5: Product Description

    · [ ]: switches to contact measurement · [ /HOLD/MIN/MAX]: Hold reading, show minimum / maximum value, sends readings to the mobile Testo ® terminal (Bluetooth 5 Battery compartment (at the back) 6 Fold-out immersion/penetration probe, folding out the probe switches the instrument on 6.

  • Page 6: Operation

    Observe the information on IR measurement/contact measurement (see chapter below). ® Press [ ] to transfer the displayed reading in Bluetooth mode to the mobile Testo terminal. IR measurement - Instrument is switched on, IR measurement is enabled, ® Bluetooth mode is enabled.
  • Page 7 (on) or off (oFF): press [ ] or [ - The instrument switches to IR measurement. ® - Bluetooth is enabled and can be detected by mobile Testo ® terminals with a Bluetooth interface. When the connection ® is established, a beep is emitted and the Bluetooth icon is shown in the display.

  • Page 8: Service And Maintenance

    1 min after switching on in IR measurement mode. If we have not been able to answer your question, please contact your local dealer or Testo Customer Service. For contact details, please visit www.testo.com/service-contact.

  • Page 9: Measuring Method

    11. Information on infrared (IR) measurement 11. Information on infrared (IR) measurement 11.1 Measuring method IR measurement is a visual measurement Keep lens clean. Do not carry out measurement with a foggy lens. Keep the measuring range (the range between the instrument and the measurement object) free of obstacles.
  • Page 10 12. Information on contact measurement 11.3 Measuring range, distance Depending on the distance of the measuring instrument from the measurement object, a specific measuring range is recorded. Measuring lens (ratio of distance : measuring range) In italics = laser Not in italics = measuring range * Optimized measuring distance 12.
  • Page 11 13.1 Scan Devices and Connect After starting the BLE scanner, all devices in range are detected. The testo 104-IR BT is labeled with the device name and the respective serial number. For connecting the device, the “connect” button must be pressed.
  • Page 12 14. Bluetooth® pairing 13.3.2 Custom Service Each characteristic Descriptor (1) (UUID: 0x2901) provides a string to describe what kind of data will be transferred on this characteristic. With the read button (2) the characteristic value will be read out and shown. To activate the notification, click on the “N”...
  • Page 13 13. Bluetooth® pairing 13.3.3 Write Emissivity To write a new emissivity value, press the “W” button on the characteristic, after that a new window pops up. Clicking “OK” sends the value to the device. Emissivity is valid in a range of 0.1 –...

  • Page 14: Declaration Of Conformity

    14. Declaration of Conformity 14. Declaration of Conformity...
