CHAPTER 3: HEADERS & JUMPERS SETUP
3.1 H S
OW TO

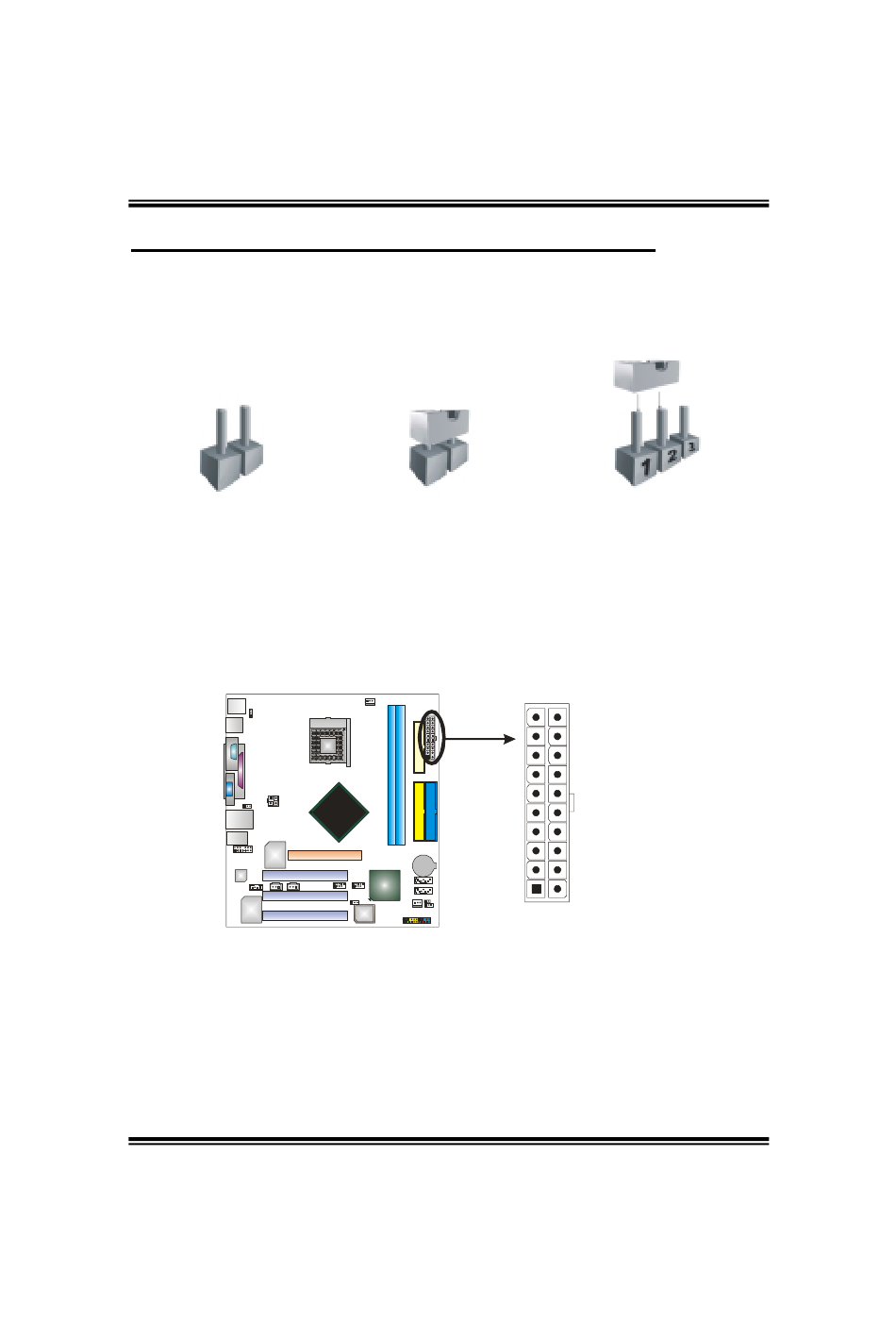

The illustration shows how to set up jumpers. When the jumper cap is
placed on pins, the jumper is "close", if not, that means the jumper is
"open".
Pin opened
3.2 D S
ETAIL ETTINGS
JATXPWR1: ATX Power Connector
This connector allows user to connect 24-pin power connector on the ATX
power supply.
865GV Micro 478
J
ETUP UMPERS
Pin closed
12
Pin1-2 closed
Pin Assignment
1 +3.3V
2 +3.3V
3 Ground
4 +5V
11 20
5 Ground
6 +5V
7 Ground
8 PW_OK
9 Standby
Voltage +5V
10 +12V
11 +3.3V
12 -12V
13 Ground
14 PS_ON
1 10
15 Ground
16 Ground
17 Ground
18 -5V
19 +5V
20 +5V
