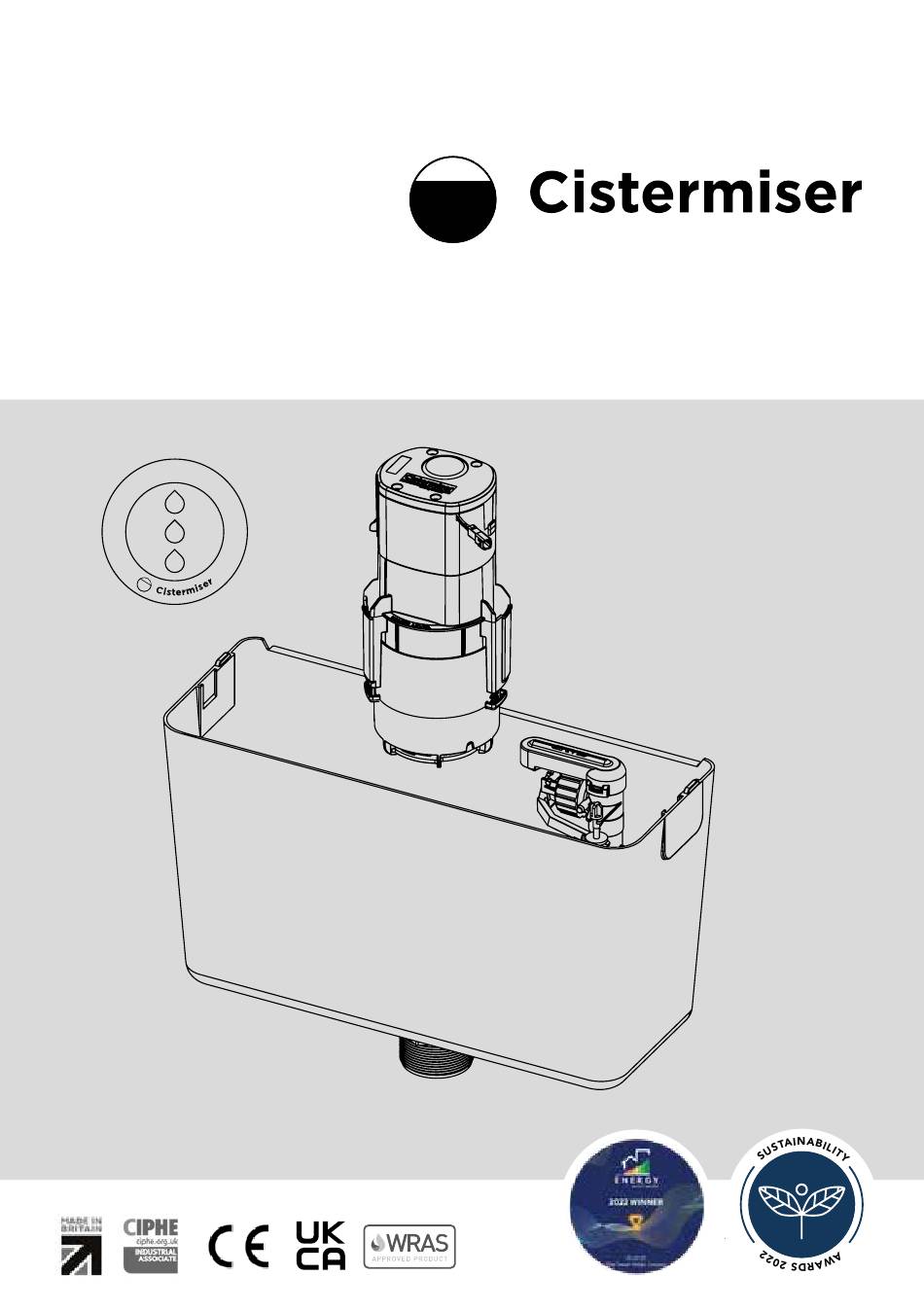

- Page 1 Easyflush EVO 1.5" EVO 2" EVO CISTERN...
- Page 2 15 IR activation label walk & wave 16 Mains transformer 17 Clamp plate fixing screw 18 Mains transformer fixing screws 19 Battery case 20 Adhesive pad 2 | cistermiser.co.uk Have a question? Call our customer support team on 0118 969 1611...
- Page 3 23 Adhesive pad Optional extras Remote Controller Programmer (ICU) Multi Product Power Supply Unit (PSUC) Side Front Adaptor (SFA) Easyflush IFS extension cable 1.5m (IFS/10) Have a question? Call our customer support team on 0118 969 1611 cistermiser.co.uk | 3...
-
Page 4: Valve Operation
If a flush is activated while the cistern is refilling, the sensor will remember the flush request and only activate when the cistern is full (to set refill time see page 16). This is indicated by three rising green LEDs. 4 | cistermiser.co.uk Have a question? Call our customer support team on 0118 969 1611... -
Page 5: Valve Installation
Outlet in cistern. Secure Ensure cistern is mounted by rotating clockwise. level. ✗ ✗ ✔ ✔ WARNING: Cistern must be level! All packaging must be removed after installation. Have a question? Call our customer support team on 0118 969 1611 cistermiser.co.uk | 5... - Page 6 To adjust height of Lift or lower upper body to Rotate anticlockwise to lock. Easyflush Flushing Valve adjust height. rotate upper body clockwise to release. 6 | cistermiser.co.uk Have a question? Call our customer support team on 0118 969 1611...
- Page 7 1 bar. Alternative restrictor for water pressure greater than WARNING: 1 bar. Do not over tighten. Do not use any sealing paste or compound. Have a question? Call our customer support team on 0118 969 1611 cistermiser.co.uk | 7...
-
Page 8: Sensor Positioning
Walkaway version only. Minimum distance applies. If x (see diagram) is less than 12cm it is recommended that the Hand Activation is disabled. Refer to section 12. 8 | cistermiser.co.uk Have a question? Call our customer support team on 0118 969 1611... - Page 9 Side/front adaptor NOTE: NOTE: For holes between 40-50mm please If a side/front adaptor is required, this contact Cistermiser for a hole adaptor. is available to purchase as an optional Diameters larger than 50mm is considered a non-standard installation. extra. Have a question? Call our customer support team on 0118 969 1611...
-
Page 10: Power Connections
Multiple power connections for Easyflush If installing multiple Cistermiser products, the PSUC Multi Product Power Supply Unit is available as an accessory. Contact Cistermiser for more details. Multi product power supply unit (Not supplied, contact Cistermiser for further details). -
Page 11: Testing And Commissioning
NOTE: For chemical water treatment. If the water system has been treated with chemical dosing, ensure the system is thoroughly flushed before fitting any Cistermiser products. Concentrated chemicals in dead legs can damage the product and result in failure. If the water is treated with Chlorine Dioxide (ClO2), ensure concentration levels are maintained below 5ppm. -
Page 12: Maintenance
9. Maintenance Fill valve (supplied with EVO CISTERN only): Periodically rinse the inlet filter and valve diaphragm. If the diaphragm is damaged contact Cistermiser for a replacement. 12 | cistermiser.co.uk Have a question? Call our customer support team on 0118 969 1611... - Page 13 Mains power supply: 100-250V AC 50/60Hz 1A MAX Fill Valve (supplied with EVO CISTERN only) Minimum working pressure: 0.1 bar Maximum working pressure: 10 bar Have a question? Call our customer support team on 0118 969 1611 cistermiser.co.uk | 13...
-
Page 14: Component Dimensions
The recommended optimal size is 350mm height x 200mm length. For alternative flush pipe configurations, refer to table. LENGTH (mm) 14 | cistermiser.co.uk Have a question? Call our customer support team on 0118 969 1611... - Page 15 Stand at the distance from the sensor Sensor you would like to set as maximum range. distance is green Wait 8 seconds until constant triple now set. LEDs show. Have a question? Call our customer support team on 0118 969 1611 cistermiser.co.uk | 15...
- Page 16 LEDs will show. The refill time has now been set. After configuration the LEDs will flash triple amber, giving opportunity to re-enter configuration mode. 16 | cistermiser.co.uk Have a question? Call our customer support team on 0118 969 1611...
- Page 17 13. Infrared Configuration Unit (ICU) guide NOTE: Not supplied but available from Cistermiser or any major plumbing merchant. Button descriptions Activates cleaning mode Activates ICU configuration mode Decreases setting Increases setting Checks the setting being altered Saves changes and exits ICU configuration mode...
- Page 18 Save setting and exit ICU configuration by by pressing the button. pressing the button. Exit without saving by pressing the button. Exit without saving by pressing the button. 18 | cistermiser.co.uk Have a question? Call our customer support team on 0118 969 1611...
-
Page 19: Frequently Asked Questions
Low or no battery power; change batteries. If operated by not at all when a hand is mains power, check wiring then contact Cistermiser. placed in front of it. Check fill valve and flush valve are aligned with water level. - Page 20 Sensor flashing triple red Sensor covered or heavily scratched. Uncover or polish out LEDs scratches. Sensor flashing double Servo motor obstruction or wiring fault - Call Cistermiser red top LEDs for advice. Cistermiser product warranty and extended warranty Cistermiser products are guaranteed for The warranty on Cistermiser products 12 months from the date of manufacture.
- Page 21 Commissioning check-list Easyflush The warranty on Cistermiser products can be extended within one year of date of manufacture, at no cost, to three years from the date of YEAR installation. Once the valve has been installed, complete the product extended...
- Page 22 Notes 22 | cistermiser.co.uk Have a question? Call our customer support team on 0118 969 1611...
- Page 23 Have a question? Call our customer support team on 0118 969 1611 cistermiser.co.uk | 23...
- Page 24 Cistermiser Limited Unit 1, Woodley Park Estate, 59-69 Reading Road, Woodley, Reading, Berkshire RG5 3AN t: +44 (0) 118 969 1611 e: sales@cistermiser.co.uk cistermiser.co.uk A Davidson Holdings company Cistermiser only use papers from sustainable sources. SIP/36 Rev 8...
