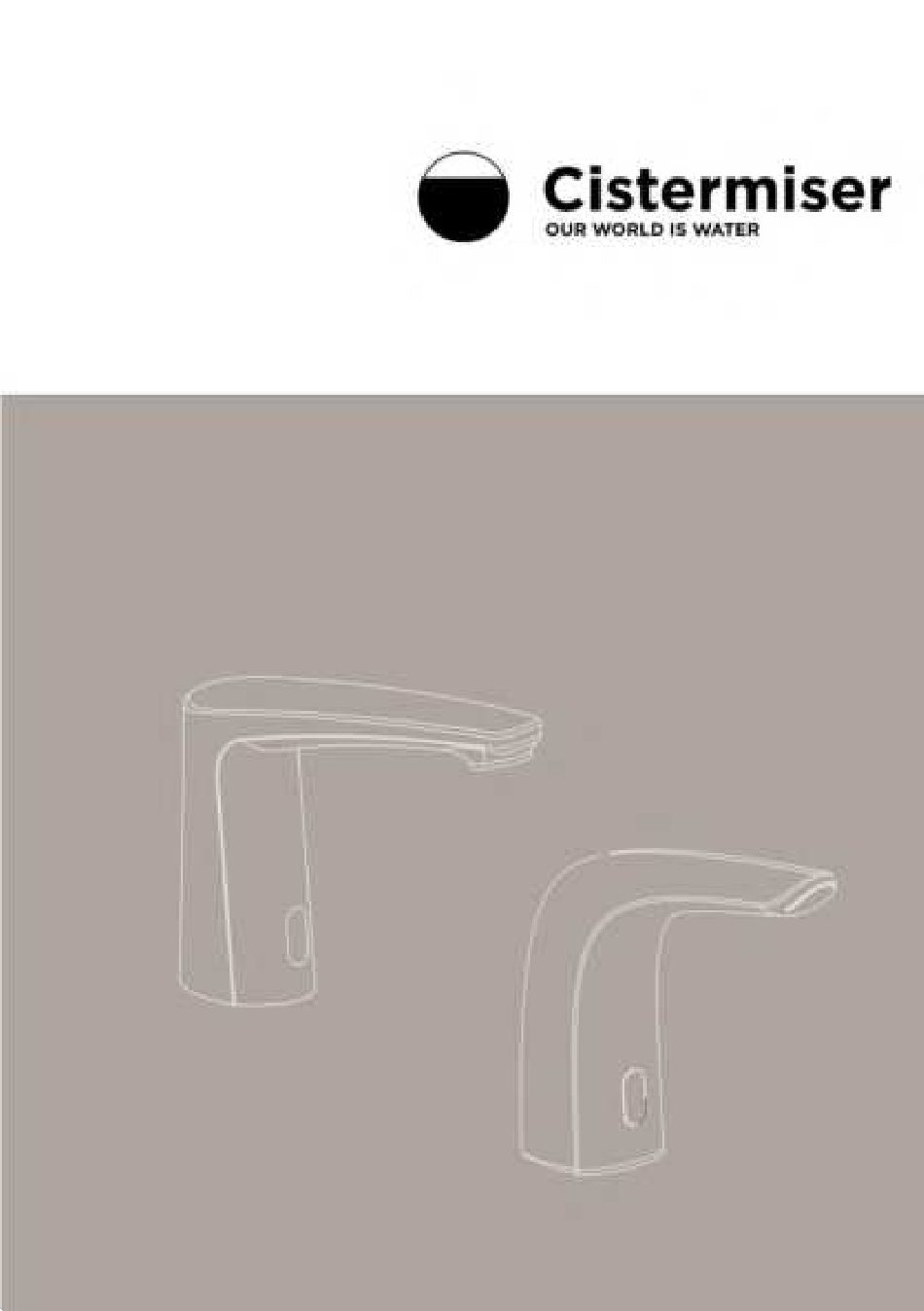

- Page 1 Infrared Tap s Installation Guide...
-
Page 2: Supplied Parts
1. Introduction Cistermiser’s infrared taps are available with either an internal or external valve. The taps all use infrared technology which ensures maximum hygiene and water efficiency. All taps are supplied configured with the 5 litres per minute aerators installed but also include a 3.5 litres per minute laminar nozzle. - Page 3 flush with tap body; no part should be protruding from the end of the tap. Ensure the nozzle is not over-tightened as this may pinch the “O” ring and cause the tap to leak. www.cistermiser.co.uk...
- Page 4 (blue) nozzle. Insert the 3.5 litre (blue) nozzle and tighten until flush with tap body; no part should be protruding from the end of the tap. Ensure the nozzle is not over-tightened as this may pinch the “O” ring and cause the tap to leak. www.cistermiser.co.uk...
-
Page 5: Power Connections
Infrared lens can be polished with a soft cloth. Electronic specification Control classification: Independent Maximum load: Internal valve models: 1.2W 0.2A (6VDC) External valve models: 2W 0.33A (6VDC) EMC emissions: Tested at above load Rated temperature range: 0-40° C Action classification: Type 1.Y Pollution classification: Degree 1 www.cistermiser.co.uk... -
Page 6: Component Dimensions
5. Component dimensions Novatap 200mm 45mm 120mm 12° www.cistermiser.co.uk... -
Page 7: Flow Rate Chart
Vectatap 205mm 46mm 110mm 7° Flow rate chart Supply pressure (bar) NOTE: Valve may fail to operate at under 0.5 bar 5 litres per minute aerated (blue) dynamic pressure. 3.5 litres per minute non-aerated (blue) www.cistermiser.co.uk... - Page 8 When the water has run for the desired run-on time, move your hand out of the line of sight of the sensor. The water will cease and the run-on time will be set. After configuration the unit will flash amber giving opportunity to AMBER re-enter configuration mode www.cistermiser.co.uk...
- Page 9 7. Infrared Configuration Unit (ICU) guide NOTE: Not supplied but available from Cistermiser or any major plumbing merchant. Button descriptions Activates cleaning mode Activates ICU configuration mode Decreases setting Increases setting Checks the setting being altered Saves changes and exits ICU configuration mode Quits ICU configuration mode without saving changes...
-
Page 10: Reset To Factory Settings
flashing green, see table. Exit without saving by pressing the button. Number of flashes 5 10 20 30 Run-on time (sec) Save setting and exit ICU configuration code by pressing the button. Exit without saving by pressing the button. 10 | www.cistermiser.co.uk... -
Page 11: Frequently Asked Questions
(note orientation of diaphragm when reinstalling), flush under cold water and visually inspect. Re-install. Diaphragm has been damaged by debris. Carry out procedure for ‘Debris or scale in diaphragm’, visually inspect then call Cistermiser for further instructions. Water flow diminishes Filter or aerator is blocked with scale or debris. -
Page 12: Other Alarms
Please make a note your product is faulty, please either contact of the serial number and take a photograph Cistermiser directly on 0118 969 1611 or at of the installation before you leave site. support@cistermiser.co.uk, with a photograph and the serial number, to help diagnose the cause of the problem. -
Page 13: Commissioning Checklist
Commissioning check-list The warranty on Cistermiser products can be extended within one year of date of manufacture, at no cost, to three years from the date of installation. YEAR Once the valve has been installed, complete the product commissioning checklist below to demonstrate compliance with the installation instructions. - Page 14 Cistermiser range Urinal flushing Hydraulic Valve Infrared Control Direct Flush Valve (IRC) Valve An automatic urinal flush An infrared sensor controlled control valve which reduces urinal valve. It automatically This valve automatically water consumption. The valve flushes individual urinals after...
-
Page 15: Remote Monitoring
Infrared Taps Novatap Vectatap A contemporary deck-mounted chrome tap. An elegantly designed infrared tap with The infrared control reduces water and energy the benefit of hygienic hands-free operation. usage and eliminates the risk that the tap may Vectatap improves water and energy efficiency be left running. - Page 16 12 ltrs/min. www.home-boost.co.uk Cistermiser Limited Unit 1, Woodley Park Estate, 59-69 Reading Road, Woodley, Reading, Berkshire RG5 3AN t: +44 (0) 118 969 1611 e: sales@cistermiser.co.uk www.cistermiser.co.uk A Davidson Holdings company IRT/15 C-03...
