Summary of Contents for RAEDIAN NORA

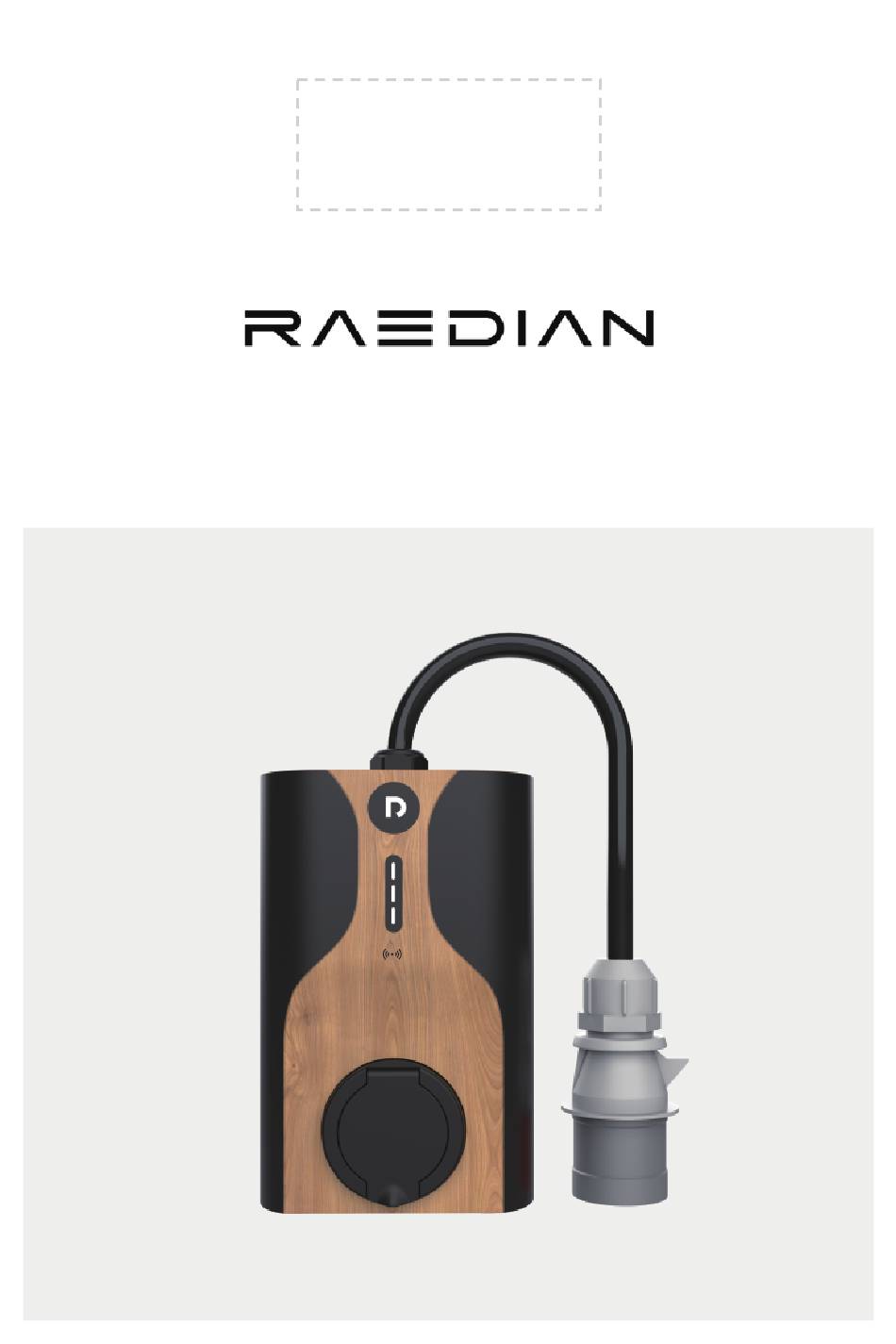

- Page 1 Quick Guide...
-
Page 2: What's In The Box
What’s in the box Tools suggestion φ 8mm Phillips Screwdriver Hex wrench: M4(3/32) - Page 3 Preparing Phillips Screwdriver φ 8mm 1.1 Measure 1.2m 1.2 Position 1.3 Mount wall bracket φ...
- Page 4 Installing Hex wrench : M4(3/32) An external at least Type A RCD is required to be installed in the upstream. Ensure the installation comply with all applicable laws and regulations. Un disjoncteur différentiel externe de type A au moins doit être installé en amont. Veillez à...
- Page 5 LEDs Logo LED Status LED Logo LED Description Status LED Description Status Standby, Available for charging White, steady Cable plugged in, waiting for Blue, steady Blue,running authorization or waiting for EV Cyan, breathing Cyan, breathing Charging in progress Error White, steady Red, steady Logo LED Description LED d'état Description...
- Page 6 Access 4.1 Plug and Charge Default access mode: Plug and Charge, plug in the charging cable and charging session will start immediately. Safe Start Current: Every time the wallbox is powered on, it will start charging at 10 amps per phase. Adjust the current according to your electrical supply. Mode d'accès par défaut : Plug and Charge, branchez le câble de charge et la session de charge commencera immédiatement.
- Page 7 4.3 RFID 4.4 Button START START STOP STOP...
- Page 8 Accessories EU adaptor pack 22kW EU adaptor pack 7kW CEE 16A, CEE 32A, household plug Household plug(Type E/F, Type G, (Type E/F, Type G, Type L) Type L) RFID card Charging cable 7kW/22kW Small enough to hang with your 5m/7.5m, Type 2 to Type 2 car keys, charging as you go Comes with a carry bag Cable hook...
