Summary of Contents for RAEDIAN NEX

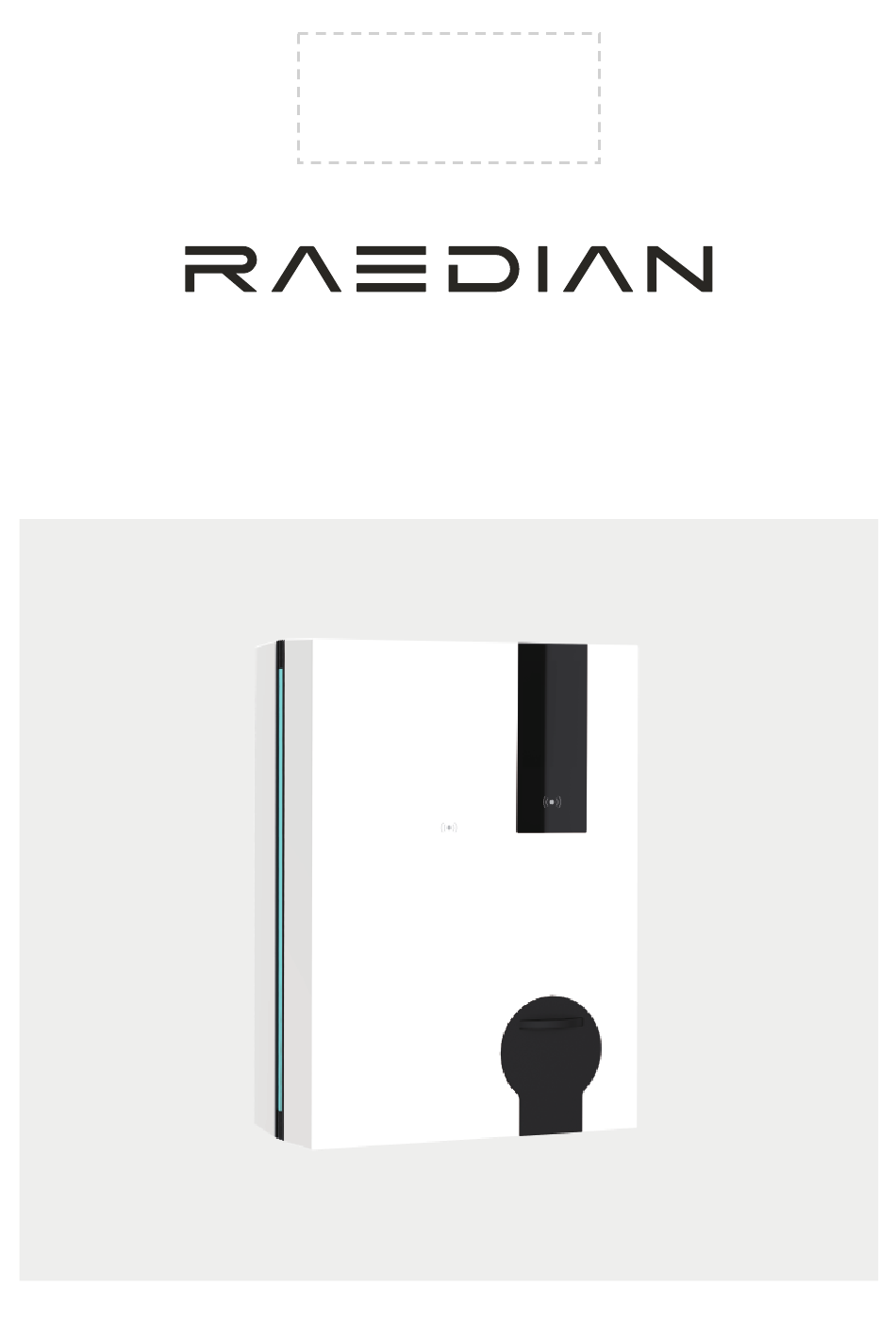

- Page 1 Quick Guide...
-
Page 2: What's In The Box
Hexwrench 4mm Phillips Screwdriver Slotted Screwdriver Disclaimer The information in this document is subject to change without notice and should not be construed as a commitment by RAEDIAN. RAEDIAN assumes no responsibility for any errors that may appear in this document. - Page 3 Preparing 1.1 Position and Power Entry φ 8mm 1.2m BOTTOM ENTRY TOP ENTRY REAR ENTRY...
- Page 4 1.2 Ethernet Cable Entry (Optional) Slotted Screwdriver Hole Saw Cutter(M25) Power Ethernet Mounting 50mm φ 8mm Phillips Screwdriver φ...
-
Page 5: Power Cable
Wiring 3.1 Power Cable Single Cable Gland Hexwrench 5mm BOTTOM ENTRY TOP ENTRY REAR ENTRY 1 Phase Connection 3 Phases Connection 16mm 16mm An external at least Type A RCBO according to IEC 61009 or RCCB according to IEC 61008 need to be installed in the upstream. Ensure the installation complies with all applicable laws and regulations. - Page 6 3.2.1 Ethernet Cable Entry (Optional) Dual Cable Gland...
- Page 7 3.2.2 Ethernet Cable Entry-Daisy Chain (Optional)
- Page 8 Installing Hexwrench 4mm Be sure to be fastened ”Clip!” Be sure to be fastened...
-
Page 9: Get Started
Get Started 5.1 LED Indicators LED Status Definition White Available Cable plugged in: Pending for authorization Green Waiting for EV Charging stopped by EV Cyan Charging in progress Fault state Purple Paring RFID cards 5.2 OLED Display V1.3.4 0FA6B1B1 15/05/2024 11:48:28 R E A D Y 00,000.00 kWh... - Page 10 FW Version V1.3.4 0FA6B1B1 Checksum 15/05/2024 11:48:28 R E A D Y Date Time 00,000.00 kWh ∑ Accumulative Energy Delivered Available Charging Connectivity Wi-Fi +000.000 kWh 00:00:07 4G (optional) 30/11/2023 08:43:34 229V 00/32A Schedule 00,000kW Energy Delivered(Current session) 00,000.00 kWh ∑...
- Page 11 Access 6.1 Plug And Charge (Default) 6.2 Authorization (Set In APP) Paring with APP PIN Code:XXXX Product Code:EAXXXXXX Start Quick Guide RAEDIAN APP Authorized with RFID...
- Page 12 Customization available uneven surfaces For CMS portal, For more information, For instruction videos, please scan the QR code or visit us: please scan the QR code or visit us: please scan the QR code or visit us: https://nebula.raedian.com https://raedian.com/support @EVWallboxRaedian...
