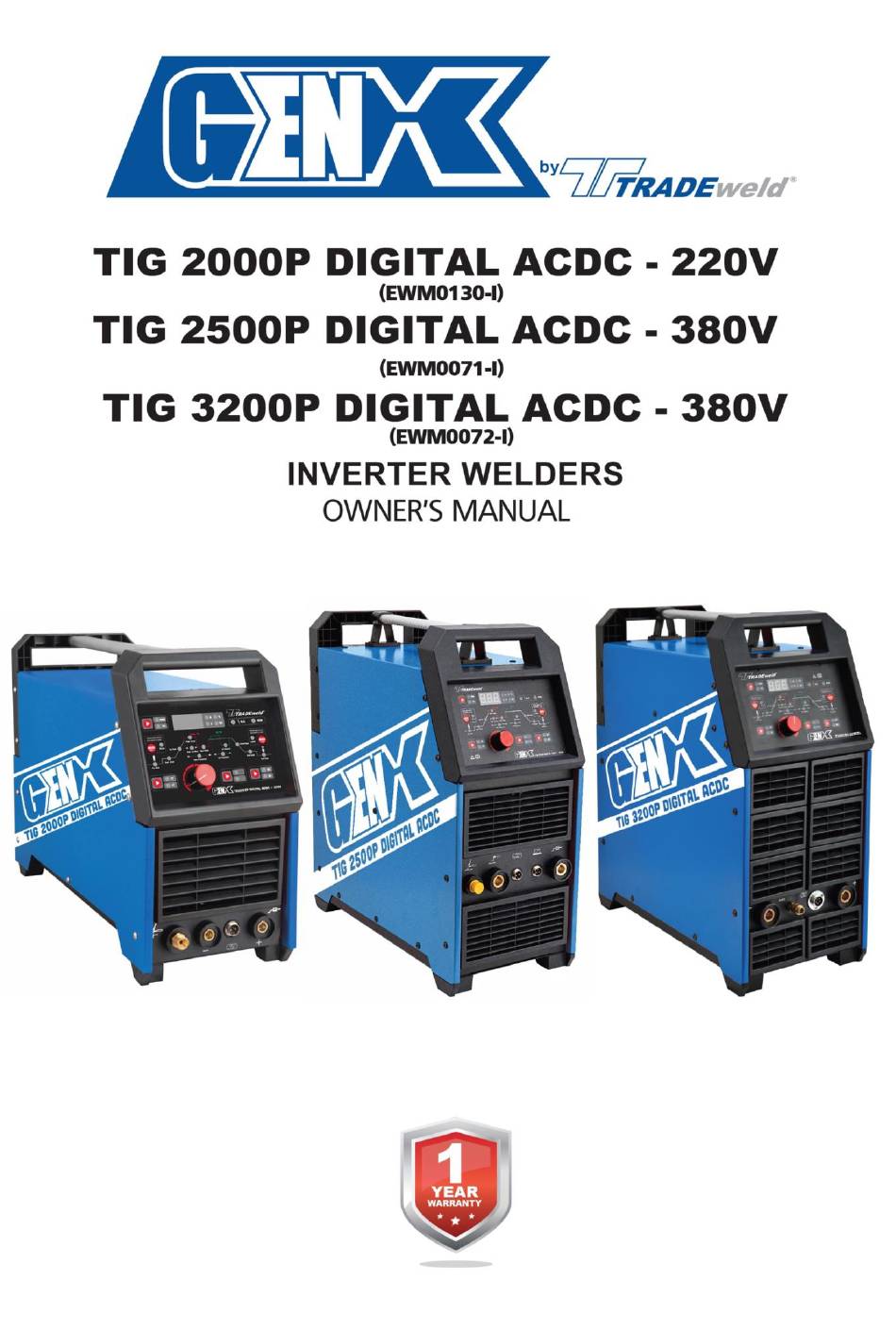

TradeWeld GENX TIG 2000P DIGITAL ACDC-220V Owner's Manual

Inverter welders
Hide thumbs
Table of Contents

Advertisement

Quick Links

1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GENX TIG 2000P DIGITAL ACDC-220V and is the answer not in the manual?

Questions and answers

Related Manuals for TradeWeld GENX TIG 2000P DIGITAL ACDC-220V

Summary of Contents for TradeWeld GENX TIG 2000P DIGITAL ACDC-220V

  • Page 2: Table Of Contents

    CONTENTS Contents & Explanation ··········································································································· 2 Safety Warning & Duty Cycle Explained ···················································································· 3 Machine Description ··············································································································· 4 Technical Specification ··········································································································· 5 Accessories & Consumables ··································································································· 6 Installation & Operation ··········································································································· 7 Installation of TIG & MMA ········································································································ 8 Panel Functions ······················································································································ 9 Operation of Panel Function ····································································································...

  • Page 3: Safety Warning & Duty Cycle Explained

    SAFETY WARNING In the process of welding, there could be possibilities of injury, so please take protection into consideration during operation. For more details please read the Operator Safety Guide, which complies with the preventive requirements of the manufacturer. Electric shock——Can kill ！ Set the earth fitting according to applying standard.

  • Page 4: Machine Description

    MACHINE DESCRIPTION Thank you for purchasing a TRADEweld product. The TRADEweld “GENX” TIG DIGITAL ACDC series is manufactured with the most advanced technology in the world. The principle of this technology is to transform the power frequency of 50Hz/60Hz into Direct Current (DC) and invert it into high frequency (50 KHz) through high-power IGBT device’s, then a voltage-drop will be created through the high-power D.C power...

  • Page 5: Technical Specification

    TECHNICAL SPECIFICATIONS TIG2000P TIG2500P TIG3200P MODEL DIGITAL DIGITAL DIGITAL ACDC ACDC ACDC AC220V±15% AC380V±15% AC380V±15% Rated Input Voltage 1Phase 3Phase 3Phase Frequency（Hz） 50/60 50/60 50/60 NO Load Voltage Rated Input Current 38.1A 12.2A Output Current 25A-180A 25A-220A 25A-280A Range Output Voltage 21V-27.2V 21V-28.8V 21V-31.2V...

  • Page 6: Accessories & Consumables

    ACCESSORIES & CONSUMABLES Supplied with the TIG machines in the box is the following: (ONE of the following torches) 1 x SR17 torch (200Amp) 1 x SR26 torch (250Amp) 1 x SR18 torch (315Amp) 1 x earth clamp and cable 1 x 2m gas pipe 1 x electrode holder and cable 2 x hose clamp...

  • Page 7: Installation & Operation

    INSTALLATION The machine is equipped with a power voltage regulator. When power voltage moves between ± 15 % of rated voltage, it will still work normally. Should an extension cable be required (not recommended), a cord gauge of not less than 2.5mm is suggested and not longer than 10 metres. To prevent the malfunction of the cooling system make sure the fan intake of the machine is not covered or blocked.

  • Page 8: Installation Of Tig & Mma

    INSTALLATION OF TIG / MMA TIG INSTALATION MMA INSTALATION...

  • Page 9: Panel Functions

    PANEL FUNCTIONS Digital Display Meter 7 Abnormal Indicator Light STICK/TIG Selector Button 8 Remote Control Indicator Light Move Left Selector Menu Button 9 Move Right Selector Menu Button 2T/4T Selector Button 10 AC/DC Selector Button Parameter Adjustment Knob (Press the knob in for coarse adjustment, 11 Pulse ON / OFF Selector Button not pressed in is for fine tuning.) Unit of parameter Indicator Light...

  • Page 10: Operation Of Panel Function

    OPERATION Picture 2 The picture 2 shows when the machine is switched on the digital display meter will show “LL”. Picture 3 The picture 3 shows TIG mode selected, the Peak Amps indicator light on, adjusting the parameter knob the display will show 5-200A/250A/315A adjustable.
  • Page 11 Press the Move Left or Right Selector “Menu” Button to choose other parameter settings. Picture 4 The picture 4 shows 4T mode selected, and “Up Slope” selected, adjusting the parameter knob the display will show 0-10sec adjustable. This is the time set for the “Start Amp” to reach the “Peak Amp” set in Picture 3 &...
  • Page 12 Picture 5 The picture 5 shows the “Start Amps” selected, adjusting the parameter knob the display will show 5-200A/250A/315A adjustable. This will be the amperage the machine will start at before reaching “Peak Amps”. Picture 6 The picture 6 shows Pulse mode selected, and “Peak on Time” selected, adjusting the parameter knob the display will show 10-90% adjustable.
  • Page 13 Picture 7 The picture 7 shows Pulse Frequency selected, adjusting the parameter knob the display will show 0.5-200 HZ adjustable. This is the speed the pulse will switch between Positive and Negative. Picture 8 The picture 8 shows “Pre Flow” selected, adjusting the parameter knob the display will show 0.1-1S adjustable.
  • Page 14 This is how long the gas will flow before welding starts, to cover the welding area in gas. Picture 9 The picture 9 shows “Post flow selected, adjusting the parameter knob the display will show 0-15Sec adjustable. This is how long the gas will continue to flow when you stop welding, to protect molten weld area and to cool the tungsten.
  • Page 15 The picture10 shows “Base Amps” selected, adjusting the parameter knob the display will show 5-95% adjustable. This is the % the negative part of the DC wave length. Picture 11 The picture11 shows “End Amps” selected, adjusting the parameter knob the display will show 5-200A/250A/315A adjustable.
  • Page 16 This is the time set for the “Peak Amp” to reach the “End Amp” set in Picture 11. Picture 13 The picture13 shows “AC” mode selected, and “AC Balance” selected, adjusting the parameter knob the display will show 30-70% adjustable. This is the cleaning and penetrating, lower the % less penetration for thinner material, higher the % more penetration and wider the arc for thicker material, higher % for more dirty material (oil).
  • Page 17 The picture14 shows “AC Frequency” selected, adjust the parameter knob, adjusting the parameter knob the display will show 40-200HZ adjustable. This is the speed the pulse will move a full cycle between peak Amp and Base Amp. Picture 15 The picture15 shows when “MMA” mode is selected, adjusting the parameter knob the display will show 20-180Amp/220A/280A, only AC/DC mode can be selected, other functions can’t be used.
  • Page 18 Picture 16 The picture16 shows when the temperature is too high or abnormal the digital display show "Err", abnormal light O.C lights up, there will be no welding output, leave the machine on when the temperature drops the O.C light will switch off and you can resume welding or restart the machine after 10 minutes to return to normal.

  • Page 19: Operating Precautions

    Save function - Press the left Menu button for 3seconds, "Save" light will shine, the digital display will show "P01". Adjusting the knob will show from "P01" to "P10". This means that 10 sets of parameters can be stored to memory. Select one of the memory options and press the left Menu button again, "Save"...

  • Page 20: Maintenance

    Avoid Overvoltage The specific power voltage can be found in the main technical specification chart listed above or on the rear plate of the machine. The automatic voltage compensation circuit will ensure that the welding current is functioning in the correct range.

  • Page 21: Daily Checking

    Pressure of compressed air must not be more than 5 bars in order to prevent damage to small components inside the machine. 2. Check inside the welding machine regularly and make sure the output terminals are connected tightly and connectors are not damaged. If burnt, lose or damaged please tighten or replace if necessary.

  • Page 22: Troubleshooting & Fault Finding

    TIG WELDING TIPS • Sharpen tungsten point length to 1.5 times the thick ness of the tungsten. Position Checking keys Remarks 1. Condition of switches and potentiometers. Control 2. Volt and Amp display. Replace if faulty. panel 3. Warning lights 1.

  • Page 23: Explosion Diagrams & Part List

    DO NOT REPAIR OR MODIFY MACHINE IF STILL UNDER WARRANTY Faults Remedy The cause of porosity is from oxygen (air) contaminating the weld. To prevent this check the following: 1) Make sure the valve of Argon cylinder is opened and has enough pressure. 2) Check if the flow meter is opened and has enough flow.
  • Page 24 EXPLOSION DIAGRAM TIG ACDC 2000P pictures or lay out may differ from actual machine...
  • Page 25 PART LIST NAME PART NO. NAME PART NO. NAME PART NO. BOTTOM CHASIE COPPER CONNECTOR POWER CABLE GLAND 10-25 DINSE CONNECT + EWC0060 RIGHT SIDE COVER ROCKER SWITCH EWS00019 10-25 DINSE PLUG EWC0058 MAIN CONTROL BOARD PLASTIC BACK PANEL 4 PIN METAL MIC PLUG EW00046 SUPPORTS 4 PIN CABLE MIC PLUG...
  • Page 26 EXPLOSION DIAGRAM TIG ACDC 2500P The pictures or lay out may differ from actual machine...
  • Page 27 PART LIST NAME PART NO. NAME PART NO. NAME PART NO. BOTTOM CHASIE COPPER CONNECTOR POWER CABLE GLAND 10-25 DINSE CONNECT + EWC0060 RIGHT SIDE COVER ROCKER SWITCH EWS00019 10-25 DINSE PLUG EWC0058 MAIN CONTROL BOARD PLASTIC BACK PANEL 4 PIN METAL MIC PLUG EW00046 SUPPORTS 4 PIN CABLE MIC PLUG...
  • Page 28 EXPLOSION DIAGRAM TIG ACDC 3200P The pictures or lay out may differ from actual machine...

  • Page 29: Circuit Diagram

    PART LIST NAME PART NO. NAME PART NO. NAME PART NO. BOTTOM CHASIE COPPER CONNECTOR POWER CABLE GLAND 10-25 DINSE CONNECT + EWC0060 RIGHT SIDE COVER ROCKER SWITCH EWS00019 10-25 DINSE PLUG EWC0058 MAIN CONTROL BOARD PLASTIC BACK PANEL 4 PIN METAL MIC PLUG EW00046 SUPPORTS 4 PIN CABLE MIC PLUG...
  • Page 30 CIRCUIT DIAGRAM TIG ACDC 2500P/ ACDC 3200P...

  • Page 31: Warranty

    WARRANTY L&G Tool and Machinery Distributors warrant to the original purchaser only, that this product is free from defects in material and workmanship. Subject to certain exceptions, L&G Tools & Machinery Distributors will repair or replace any part on this product which, after examination, is determined by us to be defective in material or workmanship for a period of twelve (12) months after the date of purchase unless otherwise noted.

This manual is also suitable for:

Genx tig 2500p digital acdc-380vGenx tig 3200p digital acdc-380vEwm0130-iEwm0071-iEwm0072-i
