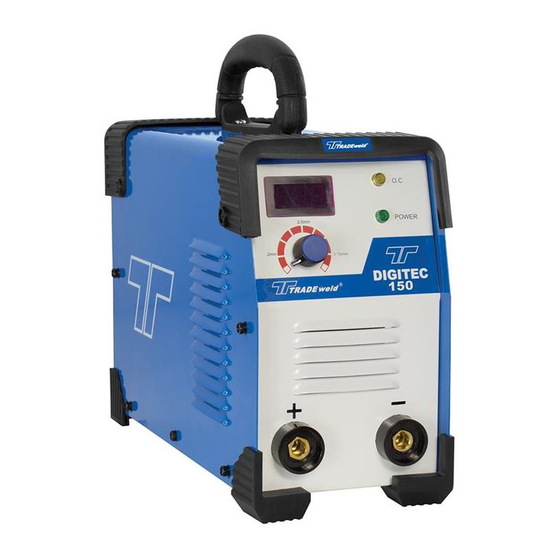

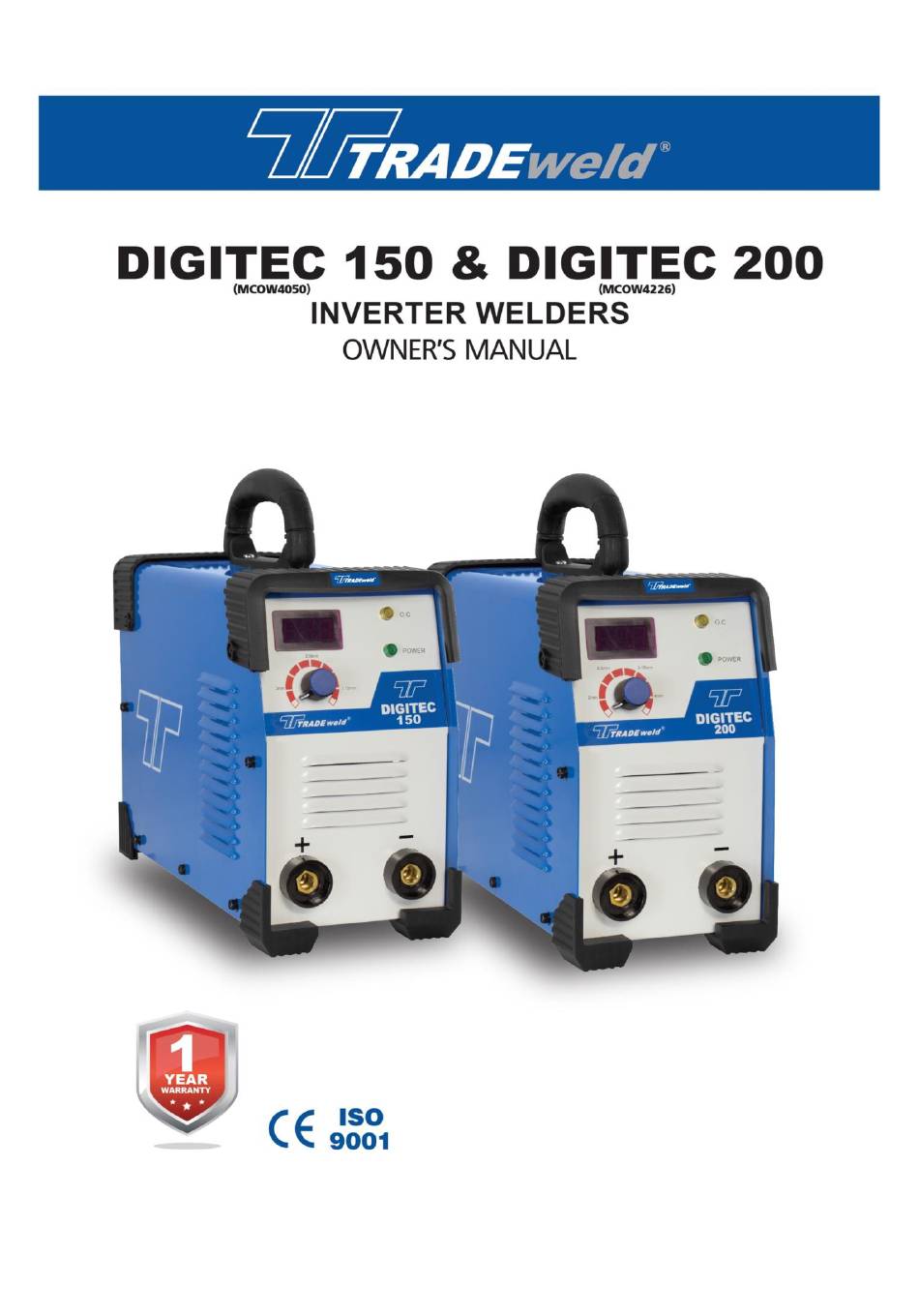

TradeWeld DIGITEC 200 Owner's Manual

Inverter welders
Hide thumbs

Advertisement

Table of Contents

1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DIGITEC 200 and is the answer not in the manual?

Questions and answers

Related Manuals for TradeWeld DIGITEC 200

Summary of Contents for TradeWeld DIGITEC 200

  • Page 2: Table Of Contents

    CONTENTS Contents & Explanation of Symbols ························································································· 2 Safety Warning & Duty Cycle Explained ···················································································· 3 Machine Description & Technical Specification ········································································· 4 Accessories & Consumables ··································································································· 5 Installation & Operation ··········································································································· 5 Front Panel layout & TIG Welding ····························································································· 6 Operating Precautions ············································································································...

  • Page 3: Safety Warning & Duty Cycle Explained

    SAFETY WARNING In the process of welding, there could be possibilities of injury, so please take protection into consideration during operation. For more details please read the Operator Safety Guide, which complies with the preventive requirements of the manufacturer. Electric shock——Can kill ！ Set the earth fitting according to applying standard.

  • Page 4: Machine Description & Technical Specification

    MACHINE DESCRIPTION Thank you for purchasing a TRADEweld product. The DIGITEC Inverter is manufactured to the highest standards. Adopting the most advanced inverter technology, it uses power Inverters, which works by rectifying the mains AC input voltage. The rectified input voltage is then inverted and filtered to a smooth DC current.

  • Page 5: Accessories & Consumables

    ACCESSORIES & CONSUMABLES INSTALLATION & OPERATION 1. The electrode holder and earth clamp are easily connected to the machine by inserting the quick connector and twisting it clockwise. Always ensure a correct fit. Please pay attention to the connection polarity. Generally, Reverse Polarity is used in which the welders electrode holder will be connected in the “+”...

  • Page 6: Front Panel Layout & Tig Welding

    FRONT PANEL LAYOUT DIGITEC...

  • Page 7: Operating Precautions

    OPERATING PRECAUTIONS Operating Environment The machine can perform in environments where conditions are dry with a max humidity of 60%. Ambient temperature should be between -10 to +40 degrees centigrade. Avoid operating machine in direct sunshine, rain, or snow. Avoid operating the machine in environments where there is pollution or high concentrations of dust or corrosiveness gas in the air.

  • Page 8: Maintenance

    MAINTENANCE WARNING! Before maintenance and checking, power must be turned off, Before opening the cover disconnect the machine from electricity! 1. Remove dust with dry, clean compressed air regularly, if the welding machine is operated in an area where the air is polluted with smoke and dust, the machine needs to be cleaned regularly, remove dust monthly.

  • Page 9: Troubleshooting & Fault Finding

    TROUBLESHOOTING AND FAULT FINDING WARNING! Experimentation and careless maintenance may lead to more problems to the machine. This will make formal diagnostic and repair more difficult. When the machine is open there may be exposed connections containing life-threatening voltages. Any direct or indirect touch will cause electric shock, and severe electric shock will lead to death.

  • Page 10: Explosion Diagrams & Part List

    DIGITEC EXPLOSION DIAGRAM PART LIST DIGITEC NAME PART NO. NAME PART NO. NAME PART NO. PLASTIC BUMPERS POT KNOB EWS00013 BLOCK RECTIFIER EW00999 HANDLE EW0121 35-50 DINSE SOCKETS EWC0061 THERMAL SWITCH BUZZ BAR MACHINE COVER MACHINE CHASIE CONNECTOR INSULATION BOARD FAN 24V DC EWPCB00071 HEAT SINK...

  • Page 11: Warranty & Owners Records

    WARRANTY L&G Tool and Machinery Distributors warrant to the original purchaser only, that this product is free from defects in material and workmanship. Subject to certain exceptions, L&G Tools & Machinery Distributors will repair or replace any part on this product which, after examination, is determined by us to be defective in material or workmanship for a period of twelve (12) months after the date of purchase unless otherwise noted.

This manual is also suitable for:

Digitec 150
