Canon imageRUNNER ADVANCE DX 6000i Preventative Maintenance Manual
  1. Manuals
  2. Brands
  3. Canon Manuals
  4. Printer
  5. imageRUNNER ADVANCE DX 6000i
  6. Preventative maintenance manual
Canon imageRUNNER ADVANCE DX 6000i Preventative Maintenance Manual

Canon imageRUNNER ADVANCE DX 6000i Preventative Maintenance Manual

Hide thumbs Also See for imageRUNNER ADVANCE DX 6000i:

Advertisement

Quick Links

Download this manual
Last update 09/20/2020

Advertisement

loading
Need help?

Need help?

Do you have a question about the imageRUNNER ADVANCE DX 6000i and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Canon imageRUNNER ADVANCE DX 6000i

Summary of Contents for Canon imageRUNNER ADVANCE DX 6000i

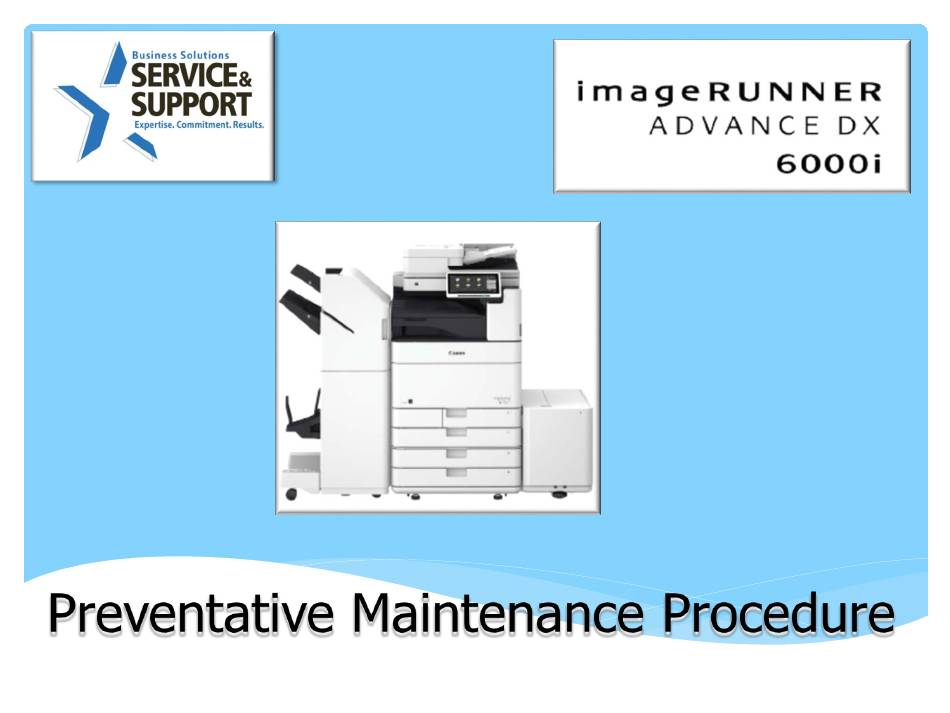

  • Page 1 Last update 09/20/2020...

  • Page 2: How To Use

    Implementation of the Preventative Maintenance Procedure  How to use Pre-Visit Common Common Maintenance Serviced Process Process Process History Check (Before) (After) This document was developed by Canon USA Engineering Services and Solutions to perform consistent, effective and efficient maintenance on all Canon products.
  • Page 3 iR ADV DX 6000i Maintenance Guide Procedure Detail Note Time • Enter the machine Serial Number to check the Log into Snapshot : following: Firmware Version – Prepare Firmware if necessary Communications Counters – Machine Usage Event History – Check History for Errors, Alarms Action Prior to and Jams Customer Visit:...
  • Page 4 iR ADV DX 6000i Maintenance Guide Procedure Detail Note Time  Point: Ask the customer about the condition of the machine and validate any issues they have. To perform efficient maintenance, we need to Verify Customers’ ask the customer about machine condition. Ask Questions to find out if there are any following Check Concern...
  • Page 5 iRADV DX C5760 C5750 C5740 C5735 Preventative Maintenance Procedure Procedure Detail Note Time  Point: 1. Check Service Log 1. Check the log to see if there is any reoccurring issues. Visual Check Check Service Log If you see the same issues listed on the log, then the root cause hasn’t been fixed.
  • Page 6 iR ADV DX 6000i Maintenance Guide Procedure Detail Note Time  Point: 1. Check the Drum counter. Visual Check Check the Drum  COPIER>COUNTER>LF Replace the drums refer to the value below to eliminate drum over life related issue. counter COPIER>COUNTER>LF If Snapshot tool was used ...
  • Page 7 iR ADV DX 6000i Maintenance Guide Procedure Detail Note Time Take following Copy/Print samples from Copy from Check for any spots, lines, density inconsistency ADF and Copy Glass. using the ADF and off the glass. 1. PG5 2. NA3 Repeating Marks down the page / Spots Black Band on 2 side...
  • Page 8 iR ADV DX 6000i Maintenance Guide Procedure Detail & Action Note Time  Point: Clean the rollers ( Pick up, Feed, Sep) & check Sep Pad Clean the Rollers using a lint free cloth with soap and water. Sensors should be cleaned using a Clean blower brush.
  • Page 9 iR ADV DX 6000i Maintenance Guide Procedure Detail & Action Note Time 1. Clean the rollers if you didn’t replace them in C8. Clean the rollers with lint free paper with soap and water. Clean Rollers on *Visually Inspect the Rollers and only Clean clean if necessary.
  • Page 10 iR ADV DX 6000i Maintenance Guide Procedure Detail Note Time 1. Remove the ITB Ass’y to see the Patch Sensor If the patch Sensor shutter is broken, replace it Visual Check shutter. with new one. Patch registration sensor unit 2. Check and clean the Patch Sensor shutter with lint free towel.
  • Page 11 iR ADV DX 6000i Maintenance Guide Procedure Detail Note Time 1. Open the Fixing cover, inspect and clean the  Point; Fixing Inlet Guide. Delivery Roller, Delivery Guide Removal of Fixing Inlet Guide is not needed. The Fixing Inlet Guide could be cleaned when inside Visual Check of machine.

  • Page 12: Toner Bottle

    iR ADV DX 6000i Maintenance Guide Procedure Detail Note Time  Point Clean all areas with lint free paper moistened with alcohol. Clean the Reg Roller ( inner Visual Check & outer side), Pre-Reg Guide ( inner & outer),Reg sensor & prism, Clean Clean the Duplex Feed rollers also.
  • Page 13 iR ADV DX 6000i Maintenance Guide Procedure Detail Note Time Continued Check the customer’s inventory of waste toner bottles. Step 1 Open the waste toner door Check Step 2 Remove the waste toner container form the machine. (DO NOT TILT Waste Toner Emptying the Waste toner Step 1 &...
  • Page 14 iR ADV DX 6000i Maintenance Guide Procedure Detail & Action Note Time  Point: 1. Execute COPIER>FUNCTION>MISC-P>ITB-INIT. Check 2. See the COPIER>DISPLAY>MISC>ITB-POS. 1. If the value of service mode is out of range, 3. Repeat 1 and 2 for 3 times. perform the ITB Alignment Adjustment.

  • Page 15: Complete Documentation

    iR ADV DX 6000i Maintenance Guide Procedure Detail Note Time Take following Copy/Print samples from Copy from If you still find following PCQ, please address them. ADF and Copy Glass. Make Samples (After 1. PG5 2.CA7 Sample) Check Check Check Perform C15 and C16 at the same time to save time Test paper Feed Take copies from All Cassette at least 5 each from ADF.
  • Page 16 iR ADV DX 6000i Maintenance Guide Procedure Detail & Action Note Time  COPIER > Function > INSTALL>COM-TEST If COM-TEST is NG, fix this issue at first. If you can’t fix this issue, get assistance. Check Perform COM-TEST COM TEST Check COM TEST ...
