Schacht ULTRA UMBRELLA SWIFT WW7803 Instruction Manual

With and without counter

Advertisement

Quick Links

ULTRA
UMBRELLA SWIFT
with and without counter
Find out more at schachtspindle.com
Schacht Spindle Company 6101 Ben Place Boulder, CO 80301
303.442.3212
© 2024 Schacht Spindle Company, Inc.
WW7803
WW7804
TM
10.24

Advertisement

loading
Need help?

Need help?

Do you have a question about the ULTRA UMBRELLA SWIFT WW7803 and is the answer not in the manual?

Questions and answers

Summary of Contents for Schacht ULTRA UMBRELLA SWIFT WW7803

  • Page 1 WW7803 ULTRA WW7804 UMBRELLA SWIFT with and without counter Find out more at schachtspindle.com Schacht Spindle Company 6101 Ben Place Boulder, CO 80301 303.442.3212 © 2024 Schacht Spindle Company, Inc. 10.24...

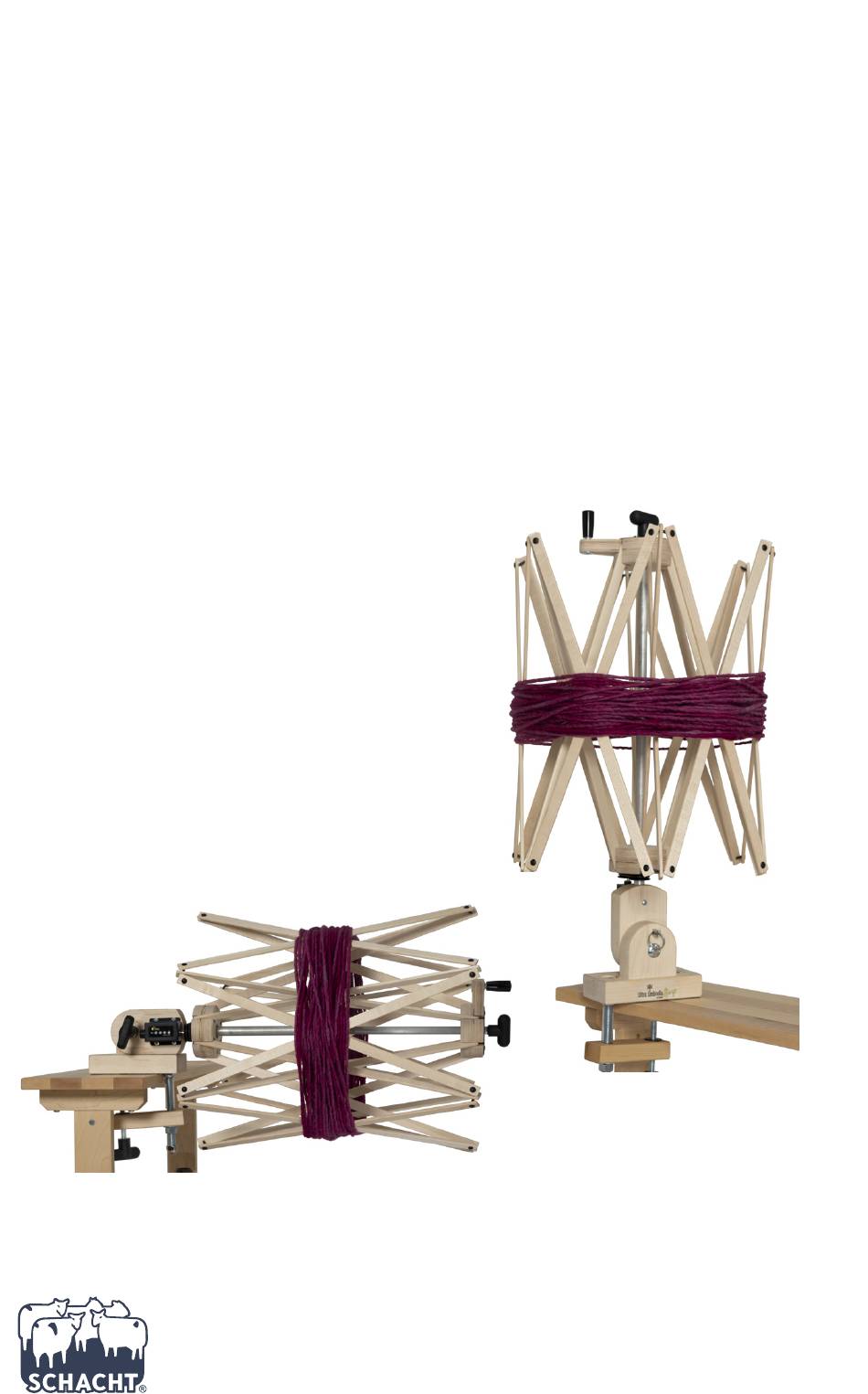

  • Page 2 ULTRA UMBRELLA SWIFT WITH AND WITHOUT COUNTER T-knob—NEVER RAISE OR winding adjustment handle LOWER THE SWIFT HERE hub—ALWAYS RAISE upper bearing OR LOWER THE SWIFT HERE main shaft lower bearing main shaft pulley lock ring pivot knob base Swi f t Ultra Umbrella long screw wood clamp...
  • Page 3 aLL SwiFtS CLAMPING THE SWIFT TO A TABLE Loosen the clamp knob (counter- clockwise) and the nut on the long screw to open the wood clamp enough so that it can fit under the table edge (Figures 1 and 2). Slide the swift onto a table edge.
  • Page 4 TILTING THE SWIFT Stand to the side of the swift, on the side with the lock ring. Hold the swift gently by the adjustment T-knob at the top. Loosen the pivot knob by turning it counter-clockwise a quarter turn. Pull on the lock ring until the ring is past the post.
