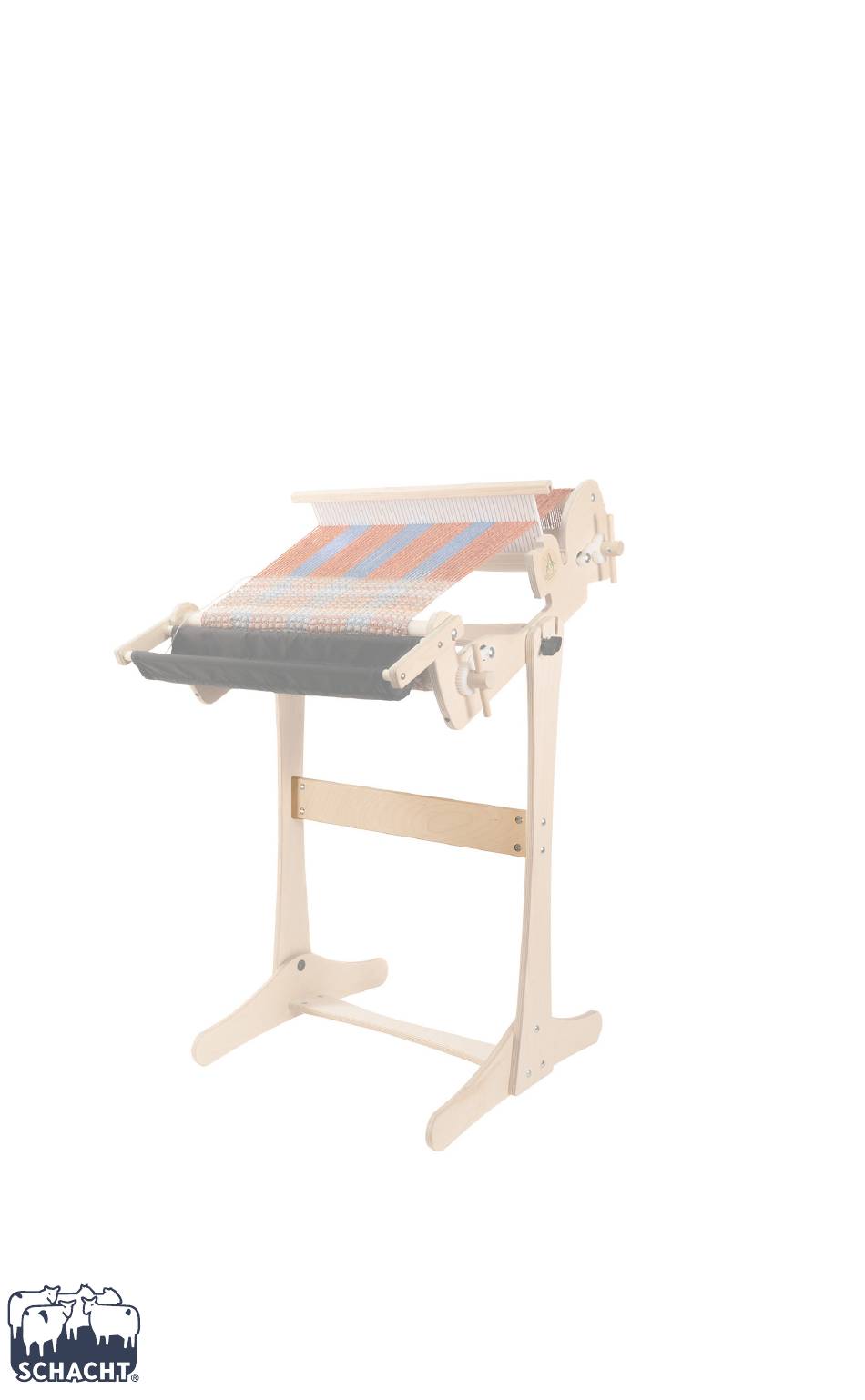

- Page 1 SL2309 SL2310 CRICKET STAND MID BRACE KIT 10" & 15" S tandS Find out more at schachtspindle.com Schacht Spindle Company 6101 Ben Place Boulder, CO 80301 303.442.3212 © 2024 Schacht Spindle Company, Inc. 04.24...
- Page 2 PARTS INCLUDED TOOLS REQUIRED mid brace #2 Phillips screwdriver 10-24 barrel nuts masking tape 10-24 x 2" Phillips truss head drill and 15/64" drill bit machine screws clamps drilling template scrap wood Phillips truss head machine screw barrel nut Make certain the front edge of the template DRILL THE LEGS matches the front edge of the leg as closely Remove your Cricket loom from the...
- Page 3 REASSEMBLE THE STAND Prepare barrel nuts: Place 10-24 barrel nuts in the holes at each end of the cross brace and mid brace. Turn the barrel nuts so that the slots in their tops are parallel to the long edge of the braces (Figure 2). Hold the barrel nuts in place with masking tape.
- Page 4 Add the Cricket (without Quartet) to the stand: Orient the front of the loom with the front of the stand (Figure 3). Place the loom between the legs, setting the hex head screws in the short straight slots and the T-knobs in the long curved slots. The washers on the T-knobs should sit outside of the legs.
