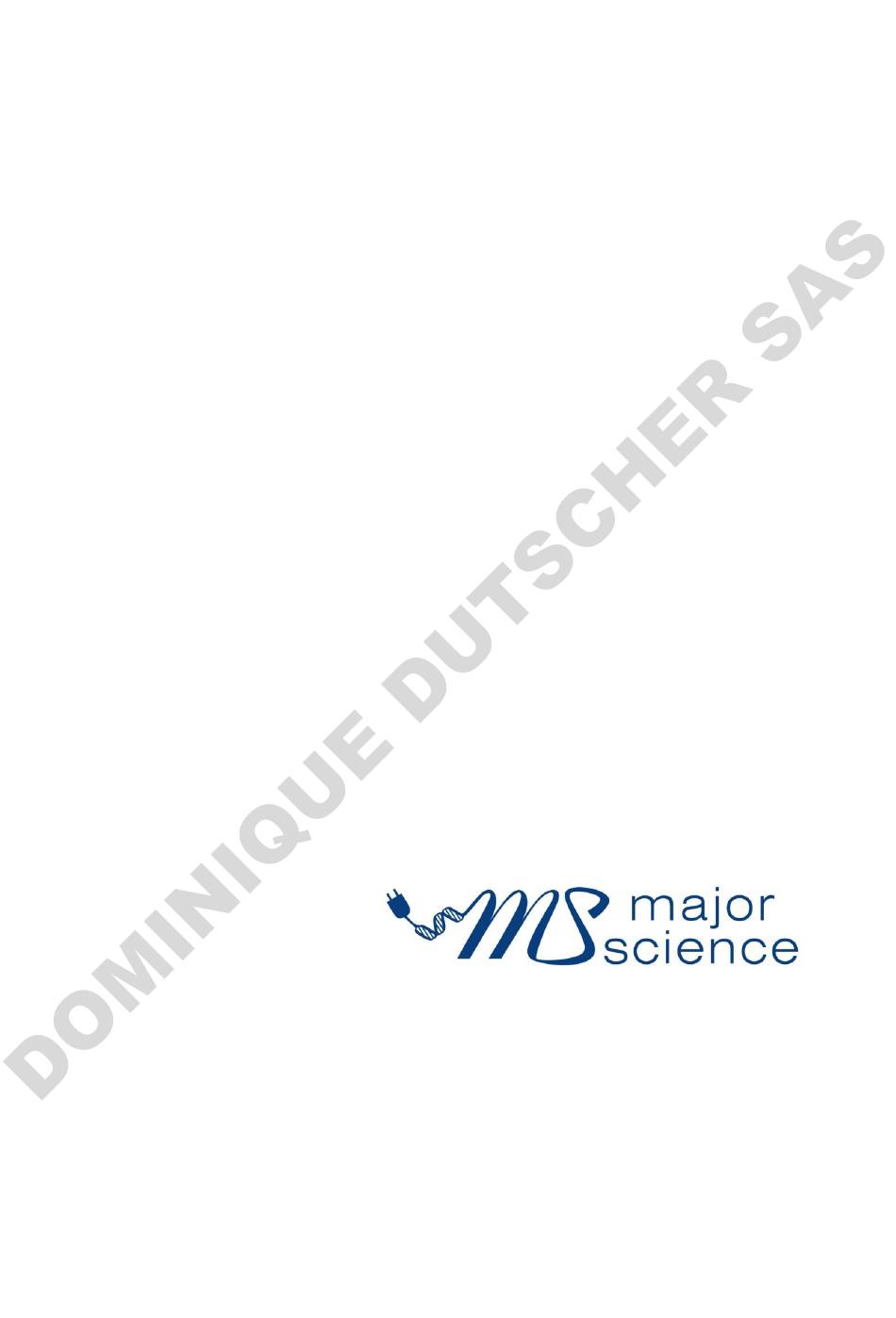

- Page 1 Mini Pro 500V Power Supply Instruction manual Catalog No. MINI-500 www.majorsci.com service@majorsci.com Version: V.06D Revised on: 2017/10/05...
-
Page 2: Packing List
1x Instruction Manual Signed by: Date: Major Science is liable for all missing or damaged parts / accessories within 7 days after customer received this instrument package. Please contact Major Science immediately regarding this issue. If no response within such time period from consignee party, that will be consignee... -
Page 3: Table Of Contents
Table of Contents Packing list ....................2 Section 1 Warning ................... 4 Section 2 Introduction ................8 Overview ............................ 8 Product Description & Feature ..................9 Section 3 Technical Specification ............10 Section 4 Installation Instructions ............11 Section 5 Operation Instructions ............ -
Page 4: Warning
Section 1 Warning Major Science Mini Pro 500V Power Supply has been tested and found to comply with the limits for the CE regulation. Also, it is RoHS compliant to deliver confident product which meets the environmental directive. These limits are designed to provide reasonable protection against harmful interference when the instrument series is operated in a commercial environment. - Page 5 Avoiding Electrical Shock Follow the guidelines below to ensure safe operation of the unit. The Mini Pro 500V Power Supply has been designed to utilize shielded wires thus minimizing any potential shock hazard to the user. Major Science recommends against the use of unshielded wires.
- Page 6 Avoiding Damage to the Instrument 1. Do not attempt to operate the device if damage is suspected. 2. Protect this unit from physical damage, corrosive agents and extreme temperatures (direct sunlight, etc.). 3. For proper ventilation and safety concerns, keep at least 10 cm of space behind the instrument, and at least 5 cm of space on each side.
- Page 7 Max. voltage: 500 V Max. current: 400 mA Max. watt: 120 W Potential Risk and Preventive Measure 1. Risk assessment table Potential Risk Frequent Likely Possible Rare Unlikely Frequency √ Bruise √ Slash Electrical √ shock Power cord √ plug wrong 2.
-
Page 8: Introduction
Section 2 Introduction 2.1 Overview Major Science Mini Pro 500V Power Supplies are recognized as unique power supplies equipped with very powerful specifications to cover the majority of electrophoresis applications on the market. Sufficient and accurate output voltages, two terminal pairs, and its compacted size can deliver accurate and reliable experimental results from one experiment to another. -
Page 9: Product Description & Feature
2.2 Product Description & Feature Featuring in small size and versatility, the newly redesigned Mini Pro 500V power supply is an ideal choice for any researcher. Capable of providing constant current or constant voltage in 1 mA or 1 V steps, the unit is perfectly suited to run both vertical polyacrylamide and horizontal agarose electrophoresis experiments. -
Page 10: Technical Specification
Section 3 Technical Specification Cat. No MINI-500 Output Voltage / Inc. Step 1: 10-500V/ 1V Step 2: 10-500V/ 1V Output Current / Inc. Step 1: 1-400 mA/ 1mA Step 2: 1-400 mA/ 1mA Max. Watt 120W Output Type Constant Voltage or Constant Current Control Microprocessor controller Terminal Pairs... -
Page 11: Installation Instructions
Section 4 Installation Instructions Mini Pro 500V Power Supply is actually a pre-installed instrument. As long as it is placed on a sturdy and level surface in a safe, dry place, and further connects with well-prepared electrophoresis system, it is ready for operation. -
Page 12: Operation Instructions
Section 5 Operation Instructions 5.1 Control Interface Button Function Two step buttons are available. Press STEP 1and STEP 2 buttons to switch between two steps. Press MODE button to switch setting mode among Voltage, Current, and Time. LED light indicates your current status. -
Page 13: Preparation For Operation
5.2 Preparation for Operation 1. Place the unit on a sturdy and level surface in a safe, dry place, away from laboratory traffic. 2. Ensure that the AC power switch is OFF, and then plug the three-pronged power cord into a grounded three-prong AC outlet with appropriate voltage (100V to 240V as indicated on the rating sticker near the AC cord on the back of the unit). -
Page 14: Set Your Value And Start The Operation
5.3 Set Your Value and Start the Operation 1. Power on the unit by pressing the ON/OFF switch. 2. Press to enter desired STEP. 3. Press to switch among Voltage, Current, and Time. 4. Adjust the output value by pressing button. -
Page 15: Troubleshooting And Maintenance
Check AC power cord connections at both connected ends. Use the correct cords. The fuse has blown Replace the fuse Repeated fuse Contact Major Science service Hardware failure broken department Electrophoresis leads Check the connections to the power are not connected to... - Page 16 2. Call Technical Service or e-mail to service@majorsci.com 3. If the unit must be shipped back for repair, contact Major Science or the distributor for a Return Authorization Number and shipping instructions. The unit will be repaired and returned to you as quickly as possible.
- Page 17 5. Snap the cover closed. Maintenance Mini Pro 500V Power Supply uses all solid-state components and should require no maintenance or recalibration under normal use. If the unit must be returned for repair, contact our SERVICE DEPARTMENT or your local...
-
Page 18: Ordering Information
Section 6 Ordering Information Cat. No. Description MINI-500 Mini Pro 500V Power Supply Package MINI500-CP-02 Package of MINI-500 and MV-30DSYS MINI500-CP-03 Package of MINI-500 and MV-20WAVESYS... -
Page 19: Warranty
All claims made under this warranty must be presented to Major Science within one year following the date of delivery of the product to the customer.
