Black & Decker Price Pfister Ashfield HHL-YP Quick Start Manual

Decorative handle trim kits

Download this manual

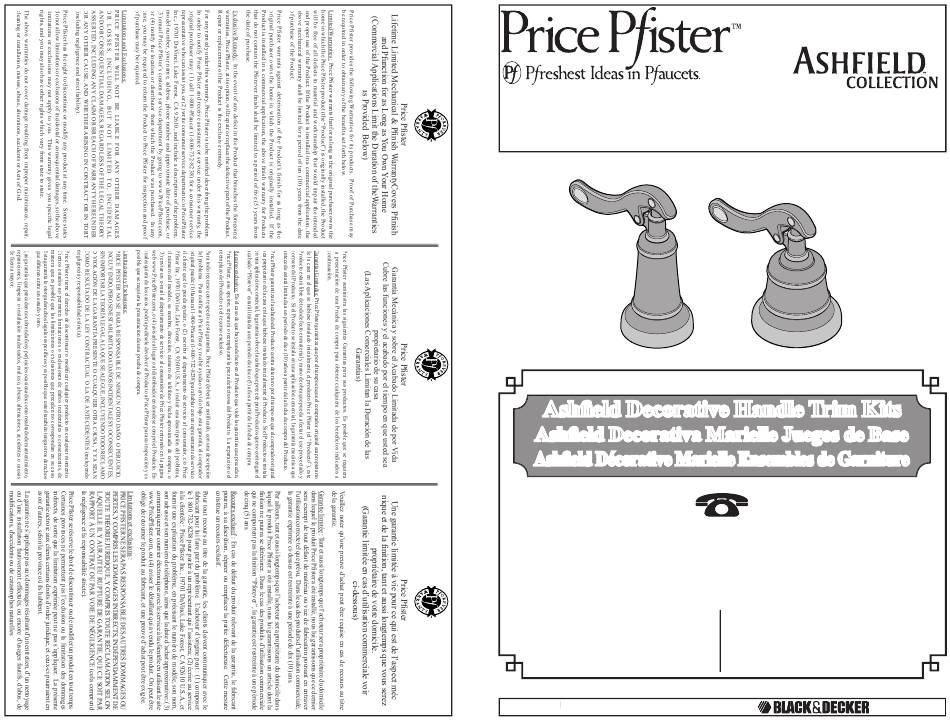

HHL-YP ■ SGL-YP

Ashﬁ eld Decorative Handle Trim Kits

Ashﬁ eld Decorativa Marielle Juegos de Base

Ashﬁ eld Décorative Marielle Ensembles de Garniture

1-800-PFAUCET (1-800-732-8238)

For Toll-Free Pfaucet information call

1-800-PFAUCET (1-800-732-8238) or visit www.pricepﬁ ster.com

• Installation Support

• Care and Warranty Information

Español:

Para obtener información mediante llamadas gratis,

llame al 1-800-PFAUCET

(1-800-732-8238) o visite www.pricepﬁ ster.com

• Apoyo a instaladores

• Información sobre cuidado y garantías

01-26-06 EO6901A

2006, Price Pﬁ ster, Inc.

Français:

Pour les renseignment concernant le service san

frais de Pfaucet, appelez 1-800-PFAUCET (1-800-

732 8238) appel ou visite www.pricepﬁ ster.

• Assistance à l'installation

• Informations sur l'entretien et la garantie

30055-0300

COMPANY

Need help?

Do you have a question about the Price Pfister Ashfield HHL-YP and is the answer not in the manual?

Page 1 HHL-YP ■ SGL-YP Ashﬁ eld Decorative Handle Trim Kits Ashﬁ eld Decorative Handle Trim Kits Ashﬁ eld Decorativa Marielle Juegos de Base Ashﬁ eld Decorativa Marielle Juegos de Base Ashﬁ eld Décorative Marielle Ensembles de Garniture Ashﬁ eld Décorative Marielle Ensembles de Garniture 1-800-PFAUCET (1-800-732-8238) For Toll-Free Pfaucet information call 1-800-PFAUCET (1-800-732-8238) or visit www.pricepﬁ...
Page 2 SGL-YP HHL-YP HANDLE ATTACHMENT Be sure Valves and Handles are in the "OFF" position. Place 940-524* HHL-YP Plastic Seal Rings (1A) against the bottom of Handle Hubs (1B). Thread Handles (1C) onto End Bodies (1D). Secure handles by holding the Handle (1C) in place and tighten the Hubs (1B) by rotating them in a clockwise direction.
