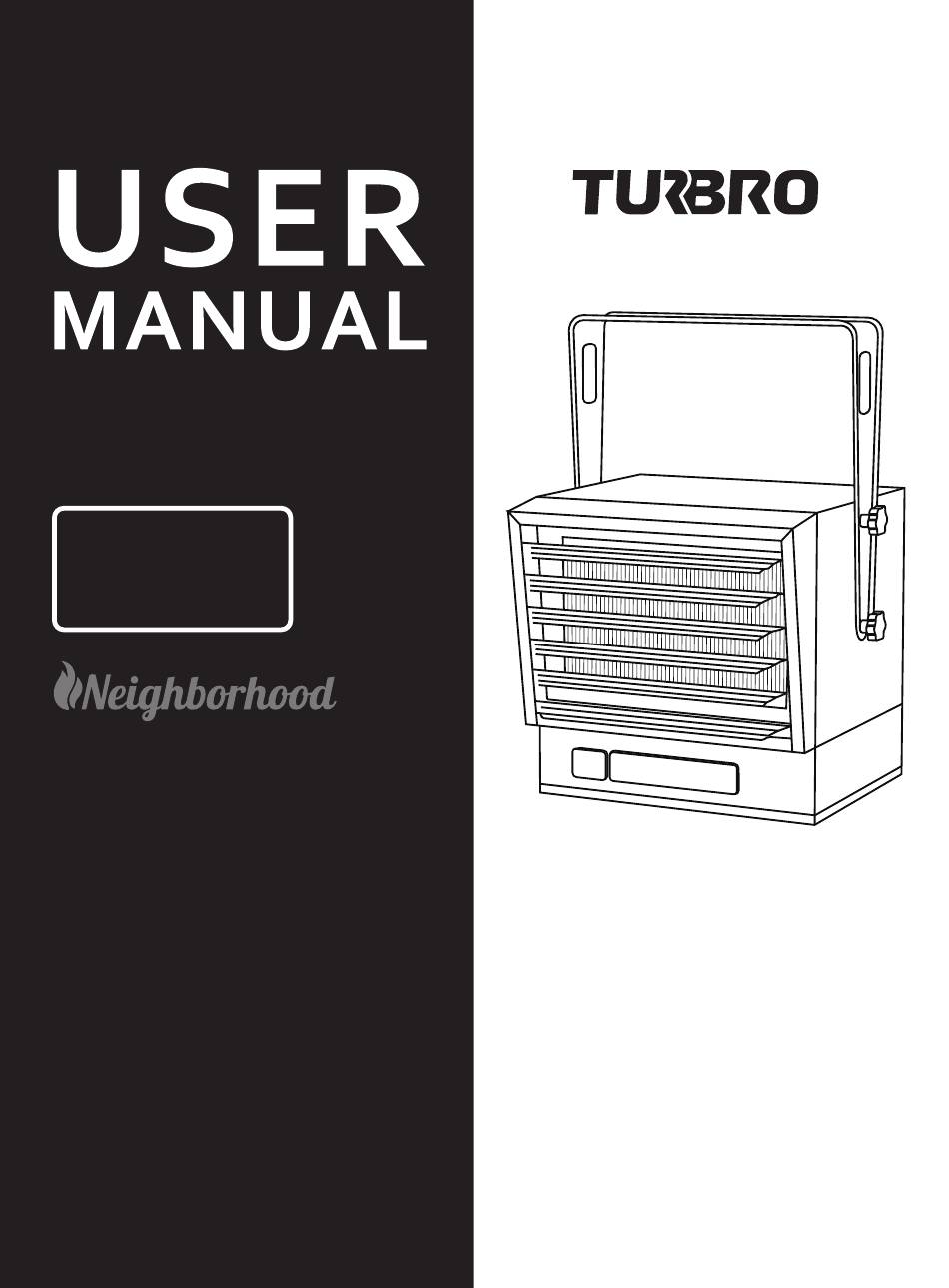

TURBRO Neighborhood GH10K Smart User Manual

Garage heater
Hide thumbs Also See for Neighborhood GH10K Smart:

Advertisement

Quick Links

GARAGE
HEATER
MODEL: GH10K Smart
GH15K Smart
HARDWIRED INSTALLATION REQUIRED
THIS HEATER MUST BE GROUNDED AND
HARDWIRED TO A PROPERLY SIZED
CURRENT PROTECTION CIRCUIT BREAKER
IN ACCORDANCE WITH THE (US) NATIONAL
ELECTRIC CODE AND LOCAL CODES.
KEEP THIS USER MANUAL FOR FUTURE
REFERENCE.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Neighborhood GH10K Smart and is the answer not in the manual?

Questions and answers

KEN GABRIEL
February 26, 2025

HAVING TROUBLE HOOKING UP MY WIFI TO MY CELL PHONE

Subscribe to Our Youtube Channel

Summary of Contents for TURBRO Neighborhood GH10K Smart

  • Page 1 GARAGE HEATER MODEL: GH10K Smart GH15K Smart HARDWIRED INSTALLATION REQUIRED THIS HEATER MUST BE GROUNDED AND HARDWIRED TO A PROPERLY SIZED CURRENT PROTECTION CIRCUIT BREAKER IN ACCORDANCE WITH THE (US) NATIONAL ELECTRIC CODE AND LOCAL CODES. KEEP THIS USER MANUAL FOR FUTURE REFERENCE.
  • Page 2: Table Of Contents

    CONTENTS ................ SAFETY PRECAUTIONS ................GENERAL SAFETY ..........ELECTRICAL SAFETY INFORMATION ................SPECIFICATIONS ............... LOCATING THE HEAER ..................INSTALLATION ..............MOUNTING THE BRACKET ........HANGING THE HEATER IN THE BRACKET ............MULTIPLE VERTICAL ANGLES ..............CONNECTING THE POWER .................... OPERATING ..................
  • Page 3: Safety Precautions

    Thank you for purchasing a TURBRO Electric Heater! We're extremely happy that you have decided to join us. Tip for First-Time Use When using this heater for the first time, or after a long period of storage. The product may produce a 'new product' smell.
  • Page 4: Electrical Safety Information

    ELECTRICAL SAFETY INFORMATION Improper installation or failure to follow the procedures outlined in this instruction manual can result in serious electrical shock. All wiring must be done by a certified electrician according to local, state, and national electrical codes, and the heater must be grounded as a precaution against possible electric shock.
  • Page 5: Specifications

    SPECIFICATIONS GH10K Smart Model Power Supply 240 V, 60Hz Rated Current 41.7 AMP Rated Power 10000 W / 34129 BTU Phase Adjustable Thermostat 45 - 95°F / 7 - 35°C or larger, in accordance with Circuit Breaker 60 AMP NEC and local codes. or larger, hardwired in accordance 6 AWG, copper only Wire Size...
  • Page 6: Locating The Heaer

    LOCATING THE HEATER • Observe wall, floor, and ceiling clearance requirements. • Align the air outlet in the desired direction. The airflow must be directed parallel to or away from the adjacent wall. • DO NOT use an extension cord or power strip with this product, as using those may increase risk of fire. •...
  • Page 7: Installation

    INSTALLATION For optimal performance, the appliance must be installed correctly. Please follow the assembly instructions strictly. Installation and settings must be carried out by a certified electrician in line with all applicable local, state, and national codes. Before starting the installation, check that the product and its parts are not deformed or damaged. Make sure that the power supply has been disconnected from the appliance.
  • Page 8: Hanging The Heater In The Bracket

    B. Mount the bracket with the concrete ceiling. Refer to Figures 3b. 1. Drill 0.47” pilot hole in the ceiling joist for the M10 Expansion Bolt(s). 2. Place the M10 Expansion Bolt(s) as shown in the Figures 3b. CONCRETE CEILING Bracket M10 Expansion Bolt...
  • Page 9: Multiple Vertical Angles

    MULTIPLE VERTICAL ANGLES 1. Tilt the unit Loosen the top Small Knob-Screws and thread them into the provided holes in the heater until tight. 90 Degrees 60 Degrees 90 Degrees 60 Degrees 2. Adjust the louvers as desired. See Figure 4. NOTE: When the heater is on, please avoid adjusting the louvers with bare hands to prevent burns.
  • Page 10: Connecting The Power

    CONNECTING THE POWER heating element PCB1 relay relay relay PCB2 Temperature sensor 1 Temperature sensor 2 Control display Wiring diagram WARNING: This appliance must be grounded. WARNING: This appliance must connect to a current protection circuit or device before being connected to the power supply! Refer to SPECIFICATION and NEC / local codes.
  • Page 11 CONDUIT CONDUIT CONNECTOR 3ft. If Heater is to min. be turned and wire is inside conduit. FLEXIBLE FLEXIBLE CONDUIT CONDUIT CONNECTOR If Heater is to be connected with NM Cable. FLEXIBLE FLEXIBLE NM CABLE CONNECTOR NM CABLE (use per electircal codes) If Heater is to be connected with Flexible...
  • Page 12: Operating

    OPERATING WARNING: The heater must be properly installed before use. Control Panel 1.Power Indicator 2.Power Button 3.Temperature + 4.Temperature - 5.Timer 6.°F/°C Switch 7.Display Screen 8.°F Indicator 9.°C Indicator 10.Timer Indicator 11.WiFi Indicator When the heater is connected to power, it emits a beep sound and the power indicator lights up. Power Button •...
  • Page 13 Timer Button • In operating mode: Controls the duration the heater will run before turning off. • In standby mode: Sets the time for the heater to turn on. • Press the Timer button to activate the timer function; the timer indicator will light up. Press again to cycle through different timer settings.
  • Page 14: Remote Control Batteries

    Remote Control The remote control can be used up to 19.7 feet (6 meters) away from the heater, so long as there are no obstructions between the remote control and the heater. The remote can control all the settings as the control panel does. Power ON/OFF Temperature +...
  • Page 15: Fcc Warning

    FCC WARNING 15.19 Labeling requirements. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 16: Cleaning & Maintenance

    (see Figure 1). 2. Temperature sensor is loose 2. Check the temperature sensor and re-tighten or damaged. it. If the issue persists, contact the TURBRO service team. DISCONNECT THE POWER! Temperature sensor open circuit. • Contact the TURBRO service team.
  • Page 17: Warranty Information

    Some states do not allow the exclusion or limitation of incidental or consequential damages so the above limitation or exclusion may not apply to you.  How to request warranty services? To obtain the benefit of this warranty please leave a message online (www.turbro.com/contact ), or send an email to support@turbro.com.
  • Page 18 To express our gratitude to you for choosing us, we are giving you a 1-year warranty extension to the original 1-year manufacturer's limited warranty, extending the coverage period to two years in total.  • Complete the registration of your new product at https://www.turbro.com/warranty within 90 days from the date of package delivery (inclusive of the 90th day). ...
