Panasonic GP-X Series Instruction Manual

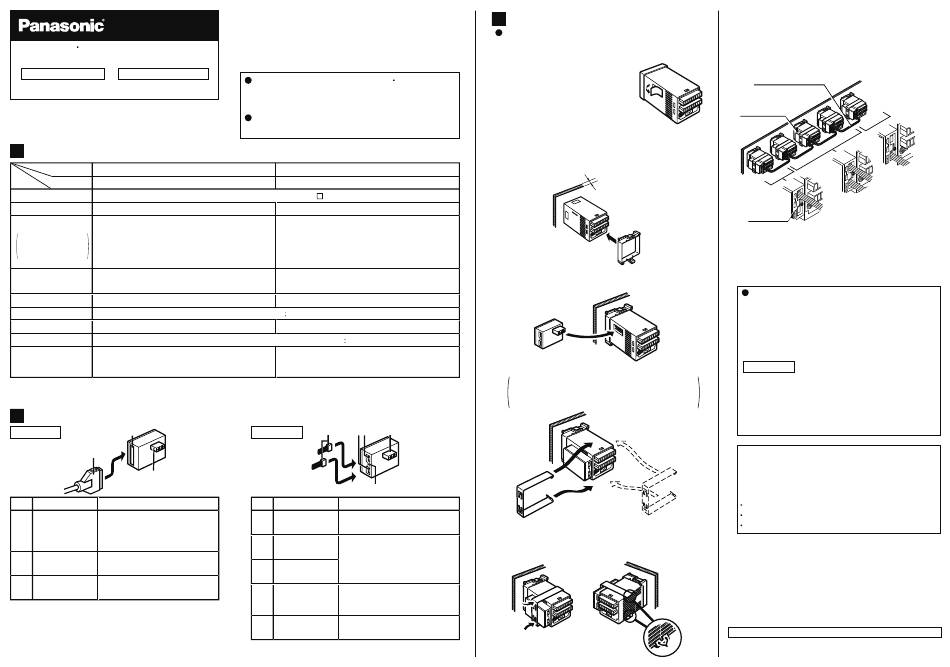

INSTRUCTION
MANUAL

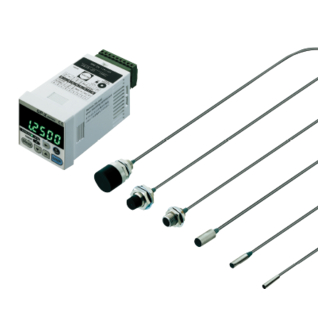

High-Speed High-Accuracy Eddy Current
Digital Displacement Sensor GP-X Series
BCD Output Unit Controller Communication Unit
GP-XBCD GP-XCOM
MJE-GPXBCD No.0097-51V
1 MAJOR SPECIFICATIONS
Designation BCD output unit
Item Model No. GP-XBCD
Power supply
Current consumption 20mA or less
N channel MOS FET open drain
Output
• Maximum sink current: 50mA
5-digit BCD output
• Applied voltage: 30V DC or less
Polarity indication output
(between output and GND)
VALID output
• Residual voltage: 1V or less (at 50mA sink current)
Non-voltage contact or NPN open-collector transistor
Input (Hold input)
Low ( 0 to 1V ) : Valid, High (open): Invalid
Switch
—
Material
Weight 30g approx.
Accessory Mounting bracket [stainless steel (SUS304)] 1 pc.
Connection cable
GP-XBCC3 (Exclusive cable 3m)
(optional)
Note: When the controller communication unit (GP-XCOM) is used, and a different power supply is used for the 2, or more,
controllers, be sure to connect either +V lines or 0V lines of the controllers each other.
2 PART DESCRIPTION
2
GP-XBCD
1
3
No. Description Function
Cable with connec-
tor on one end for
1 Connect the BCD output unit.
BCD output unit
(optional)
Connector for Connect the cable with connector
2
BCD output on one end for BCD output unit.
Connector for connec- Connect with the side panel of
3
ting the controller the controller.
Notes : 1) To use the BCD output unit, make sure to configure
the BCD output. For the setting method, refer to the
GP-X series user's manual.
2) After the controller is configured for BCD output,
the analog voltage output becomes invalid.
Thank you very much for using our products .
Please read this Instruction Manual carefully and
thoroughly for the correct and optimum use of this
product. Kindly keep this manual in a convenient
place for quick reference.
For the details of High-speed high-accuracy
eddy current digital displacement sensor GP-X
series, refer to the GP-X series user's manual.
This product has been developed / produced for
industrial use only.
Controller communication unit
GP-XCOM
Supplied from controller (GP-XC ) (Note)
5mA or less
—
—
Terminator ON/OFF switch
Enclosure ABS
20g approx.
SL-F150 (Cable length 150mm)
SL-F250 (Cable length 250mm)
SL-F1000 (Cable length 1,000mm)
GP-XCOM 1 2 3
4
No. Description
Link cable Connects between controller
1
communication units.
(optional)
Transmission
2
connector
Connect a link cable to communicate
with another controller.
Reception
3
connector
If only one link cable is connected,
Terminator
turn this switch on.
4
switch
(Lower side: ON)
Connector for connec- Connect with the side panel of
5
ting the controller the controller.
3 MOUNTING
In order to mount the BCD output unit (GP-XBCD)
and the controller communication unit (GP-XCOM) to
the controller, follow the procedures explained below.
[1]Peel off the side seal of the
controller.
[2]Mount the controller and the mounting frame on
the panel in the orientation shown in the figure
below. For details, refer to the GP-X series
user's manual.
[3]Mount GP-XBCD or GP-XCOM from the side.
[4]Mount the mounting bracket from the side.
If the bracket interferes with another unit or
the like and it cannot be mounted sideways,
mount from the rear while opening its arms.
5
Function
(Mounting from side)
[5] Press portions A of the mounting bracket to snap por-
tions B to fix the bracket, as shown in the figure below.
A
A
[6] Connect the GP-XCOM as shown in the figure
below. Turn the terminator switch on at the two
units located at the both ends of the network.
Turn the terminator switch off at the other units.
Link cable for controller
communication unit
( SL-F150/F250/F1000 )
Controller com-
munication unit
(GP-XCOM)
1 to 2.5mm
Terminator
switch ON
[7]Turn the power ON.
[8]Carry out the BCD output setting or the address
setting. For details of the settings, refer to the
GP-X series user's manual.
Operating conditions for Compliance with CE
Marking / UKCA Marking
•
When using as a product in conformity with
EMC Directive(2014/30/EU) /
EMC Regulation(2016/1091), observe the following
requirements and conditions.
Condition
•
A ferrite clamp must be mounted within 10 mm of the
base of the cable with connector on one end for BCD
output unit (
In case of BCD output unit, wind the power cable
•
connected to the controller GP-X once around the
clamp filter for confomity to EMC directive.
GP-XCOM
When
communicate if their software versions are not
compatible. Use a correct combination, as shown below.
For conforming method of the software version, or refer
to the user's manual enclosed with the
Ver. 1.06 or eariler version with Ver. 1.06 or earlier version: Possible
Ver. 1.06 or eariler version with Ver. 1.10 or later version: Impossible
Ver. 1.10 or later version with Ver. 1.10 or later version: Possible
(Mounting from rear)
Panasonic Industry Co., Ltd.
1006, Oaza Kadoma, Kadoma-shi, Osaka 571-8506, Japan
https://industry.panasonic.com/
Please visit our website for inquiries and about our sales network.
Panasonic Industry Co., Ltd. 2024
B
April, 2024
Terminator
switch ON
Terminator
switch OFF
GP-XBCC3).
is used, controllers cannot
GP-X .
series
PRINTED IN JAPAN
