Sound Skulptor TRUE GRIT Assembly Manual

TRUE GRIT Assembly guide
Safety warning
The kits are main powered and use potentially lethal voltages. Under no circumstance should someone undertake the
realisation of a kit unless he has full knowledge about safely handling main powered devices.
Please read the "DIY guide" before beginning.
Print or open the following documents:
• TRUE GRIT Schematics
• TRUE GRIT Components layout
• TRUE GRIT Parts list
Follow this guide from item number 1 till the end, in this order. The assembly order is based on components height, from
low to high profile, in order to ease the soldering process : The component you are soldering is always taller than the
previously assembled ones and it is pressing nicely against the work area foam.
Soldering
All the PCB holes are metallized. It means the connection between the top and bottom pads is already
done. The parts must be soldered only from below (unless differently stated).
Use only small diameter solder, 0.5 or 0.7 mm, 1mm maximum. Use the minimum possible amount of
solder. Bad joints are almost always caused by too much solder.
Cut the component leads and pins totally flush with the PCB after soldering. A too long tail could create
an electric connection with the side plate.
Here are two excellent introduction to soldering videos:
http://www.eevblog.com/2011/06/19/eevblog-180-soldering-tutorial-part-1-tools/
http://www.eevblog.com/2011/07/02/eevblog-183-soldering-tutorial-part-2/
TRUE GRIT Assembly guide – Main PCB

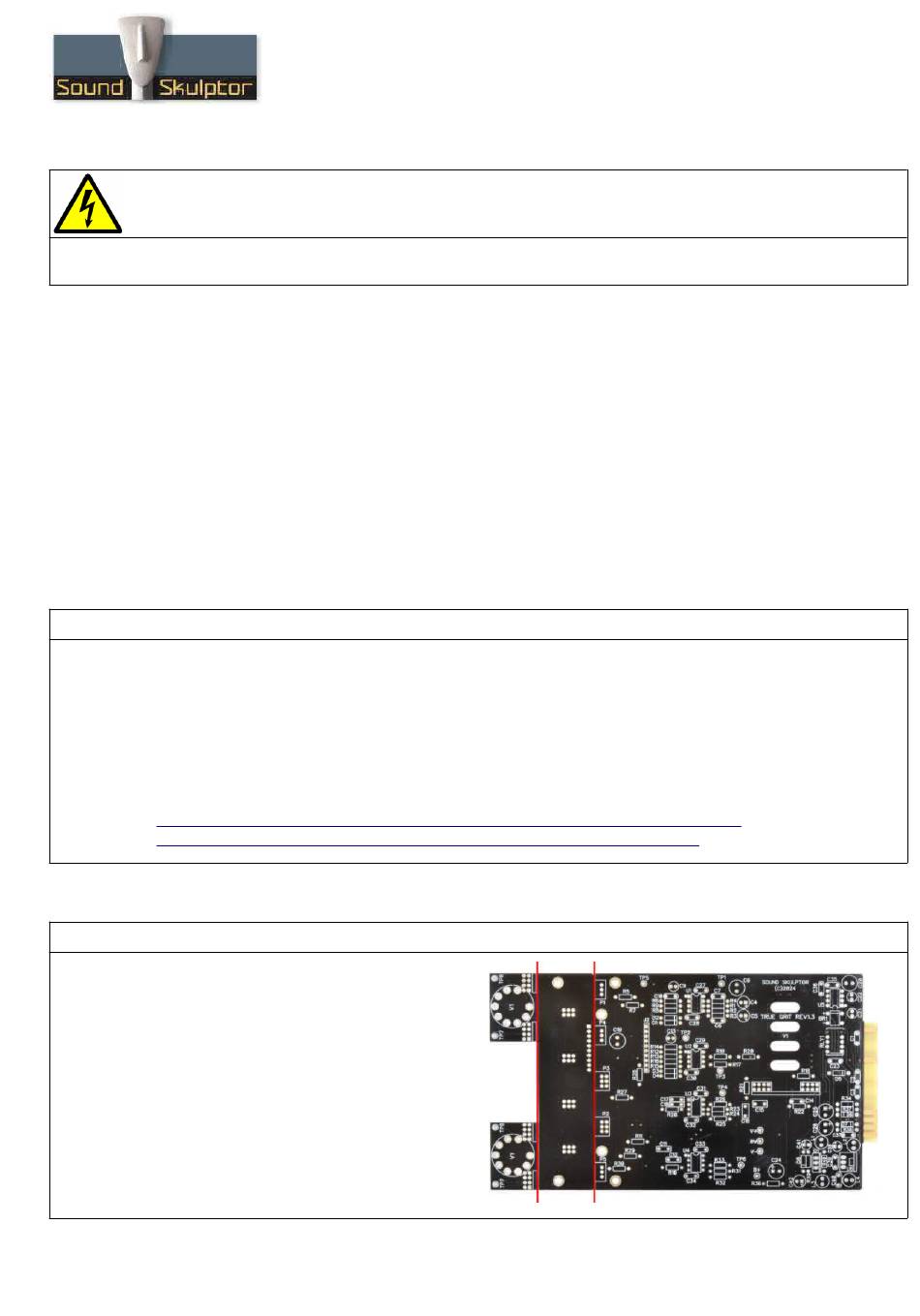

1. PCB split
Split the PCB into 3 parts along the grooves.
Use extra thin sandpaper to polish all the
rough sides
Copyright ©2024 to today SoundSkulptor
Document revision 1.1 – Last modification : Sep 13, 2024
www.soundskulptor.com
