arcelik Beko 2014 GOOD TIMER Service Manual

Double built in oven
Hide thumbs

Advertisement

Quick Links

Download this manual

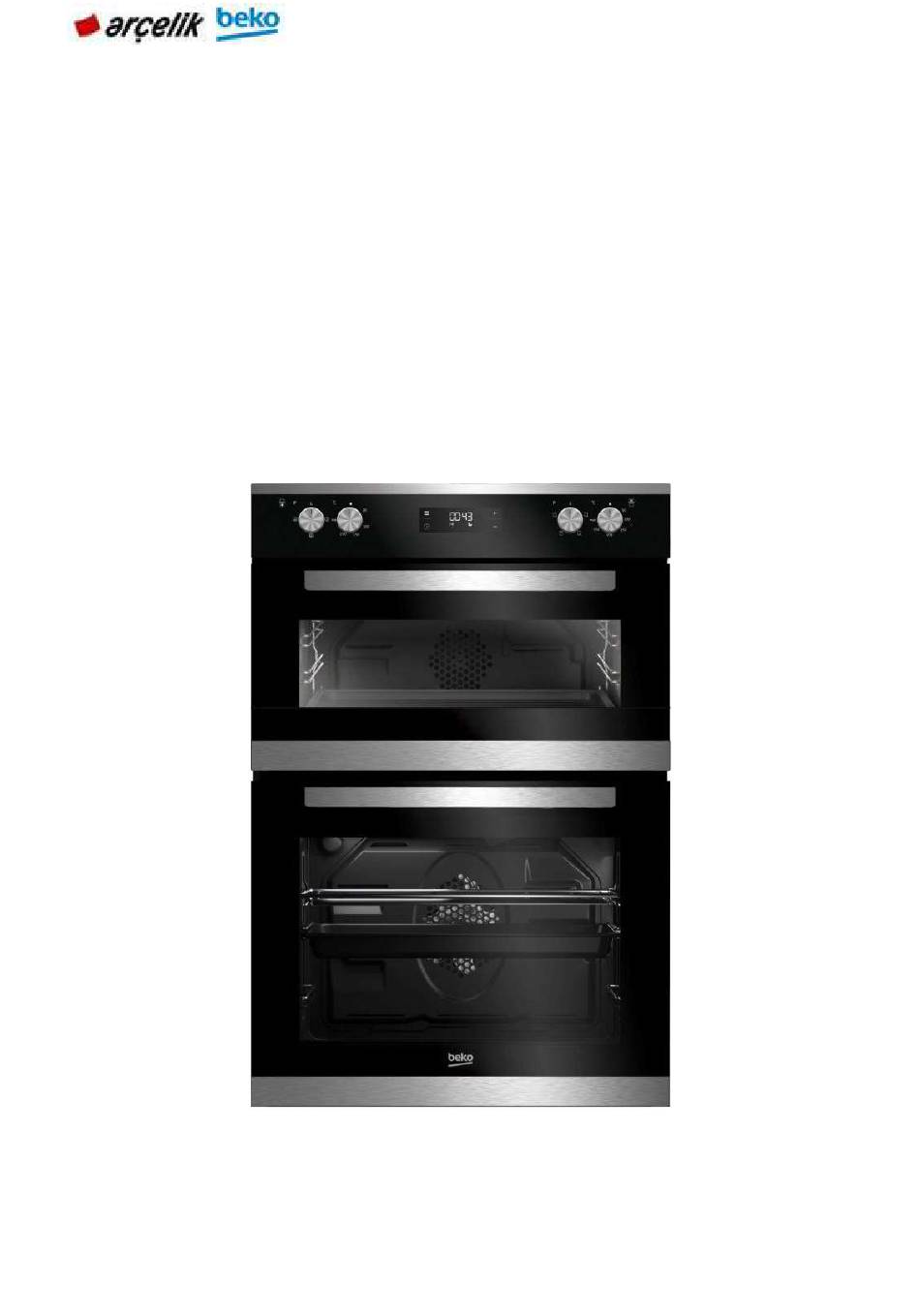

DOUBLE BUILT IN OVEN BEKO
2014 GOOD TIMER
SERVICE MANUAL
1 | EN

Advertisement

loading
Need help?

Need help?

Do you have a question about the Beko 2014 GOOD TIMER and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for arcelik Beko 2014 GOOD TIMER

Summary of Contents for arcelik Beko 2014 GOOD TIMER

  • Page 1 DOUBLE BUILT IN OVEN BEKO 2014 GOOD TIMER SERVICE MANUAL 1 | EN...

  • Page 2: Table Of Contents

    1.COVER 2.INDEX 1. COVER 2.INDEX 1.COVER ............................2 3. SAFETY WARNING ........................5 3.1 G .......................... 5 ENERAL AFETY 3.2. S ......................5 AFETY FOR ONFİGURATİONS 3.3 I ....................... 6 NFORMATİONS FOR ONSUMER 4. TECHNICAL SPECIFICATIONS ......................7 5. PRODUCT ASSEMBLY/ ASSEMBLY RULES/ SETTINGS ..............8 5.1 P ......................
  • Page 3 10.1.1 Resistance does not work;the food is not cooked ............39 10.2 L ..........................40 AULT 10.2.1 Furnace is working but the oven does not illuminate ............40 10.2.2 Oven does not work,oven lamp does not light, ............... 41 10.3 T ........................
  • Page 4 14. PYRO OVEN SPECIFICATIONS ASSEMBLY / DİSASSEMBLY ............101 14.1 I ..................101 SOLATION SHEET METAL CONNECTION 14.2 D ....................102 ISPLACEMENT OF ATALYSOR 14.3 R ......................102 EPLACEMENT DOOR LOCK 14.3 R ..................104 EPLACEMENT OF THE VENTILATION SHEET 14.3 R ..............

  • Page 5: Safety Warning

    3. SAFETY WARNING This section contains safety instructions that will help protect from risk of personal injury or property damage. Throughout this user manual the following symbols are used. Important information or useful hints about usage. Warning of hazardous situations with regard to life and property. Warning of electric shock..

  • Page 6: Informations For Consumer

    3.3 Informations for Consumer • Product may be hot during the usage.Do not touch with hot parts ,inside the oven,heating components etc. .When the product is working it is hot so do not put combustable materials near the product. • Do not wash the product with water! It is dangerous for electrick shock!Ürünü, üzerine s •...

  • Page 7: Technical Specifications

    4. TECHNICAL SPECIFICATIONS Refer to the product specifications manusoft. 7 | EN...

  • Page 8: Product Assembly/ Assembly Rules/ Settings

    5. PRODUCT ASSEMBLY/ ASSEMBLY RULES/ SETTINGS 5.1 Product Transportation To carry or move the product, do not use door or handle of the product. Door, handle or hinges can be harmed. Product should be carried by two person for safety of the product and ergonomics When the product is being carried or the product is being put to the ground, do not put it keenly, do not drag it and do not skid it from...

  • Page 9: Unpacking Product

    5.2 Unpacking Product To consider product changing in the mounting process, please do not harm package, product and the product package when extracting. Extract package with a knife without harming top and bottom carton. Take the top carton. Take lathes on the product’s front and behind sides, like shown in below. 9 | EN...
  • Page 10 Take stripers which are left and right side of the products. Symbols on the package of the products and meaning of them; Do not carry Carry the product Carry with Preserve the product in this way by Do not step on Fragile barrow in from damp...

  • Page 11: Controlling The Setup Place And Energy Sources

    5.3 Controlling the setup place and energy sources 5.3.1 Measurement control of the mounting place *min. 1. The oven is designed to fit within a 720x600 aperture with a minimum depth of 575 mm. 2. Fit the two runners 'A' to each side of the oven using the existing oven screws. 3.

  • Page 12: Installation And Connection

    4. Brackets 'C' and 'D' should be aligned with the top edge of the cabinet positioned vertically 17mm back form edge of the cabinet doors. The notched edge should be towards the top to allow clearance for the oven to slide into position. 5.

  • Page 13: Electrical Connection

    DANGER: The power cable must not be clamped, bent or trapped or come into contact with hot parts of the product. A damaged power cable must be replaced by a qualified electrician. Otherwise, there is risk of electric shock, short circuit or fire! •...

  • Page 14: Use Of Products

    6. USE OF PRODUCTS 6.1 Operating functions The sequence of operating modes shown here may differ from the arrangement on your appliance. All functions in your oven (including the main oven) are described in this section. The order of operating modes shown here may be different from the arrangement on your product.
  • Page 15 6.2 Selection of the temperature and operating mode Turn the thermostat knob to the desired temperature. Set the function switch to the desired operating mode. The oven heats up to the set temperature and maintains this temperature. During heating, temperature lamp illuminates. Turning off the electric oven Function button and the temperature knob off (upper)

  • Page 16: Use Of The Product

    5.Use Of The Product Plug in the power cord and turn on the device fuse. The language setting of the clock setting before you need to do. NOTE: Each value you set, it is automatically saved when you exit the current menu. NOTE: Before using the oven, adjust the time 5.1 Initial Use 5.1.1 Time Settings...
  • Page 17 The symbol flashes when the first electric oven. "+" Or "-" key to set the time of day by touching. After you adjust the time, touch or wait 4 seconds. symbol disappears and the clock is set. After the hour is set, by setting the thermostat knob to the desired location and function buttons;...

  • Page 18: Changing The Time Of Day

    6.1.2 Changing the time of day 1 Setting key 2 Key lock icon 4 Alarm sound symbol 5 Economic mode symbol 6 Up button 7 Down button 8 time zone symbol 9 Alarm symbol 10 Cooking end time symbol 11 Cooking time symbol 12 Program key 11 Cooking time symbol 12 Program key...
  • Page 19 Activate the symbol touching. '-' And '+' button to set the time of day with. After the clock setting, touch or wait 4 seconds. 19 | EN...

  • Page 20: Brightness Adjustment

    6.1.3 Brightness Adjustment 1 Setting key 2 Key lock icon 4 Alarm sound symbol 5 Economic mode symbol 6 Up button 7 Down button 8 Time zone symbol 9 Alarm symbol 10 Cooking end time symbol 11 Cooking time symbol 12 Program key 11 Cooking time symbol 12 Program key...
  • Page 21 For screen brightness, touch screen until D-01 or D-03 to D-02 the text. +/- Set the desired brightness keys. Shortly after the set brightness becomes active. 21 | EN...

  • Page 22: Making The Oven Using The Clock And Cooking Times

    6.1.4 Making the oven Using the clock and cooking times; 1 Setting key 2 Key lock icon 4 Alarm sound symbol 5 Economic mode symbol 6 Up button 7 Down button 8 time zone symbol 9 Alarm symbol 10 Cooking end time symbol 11 Cooking time symbol 12 Program key 11 Cooking time symbol...
  • Page 23 Tap on the screen until the symbol for the cooking time. Set the cooking time using the buttons. »Continuous time zone symbol and the symbol will appear on the screen after the cooking time is set. »Cooking begins when the cooking time countdown and time zone display will illuminate all parts of the symbol.
  • Page 24 To set the cooking end time of a further hour; On the clock; After setting the cooking time you can set the cooking end time of a further hour. Tap on the screen until the symbol for the cooking time. / Set the cooking time using the buttons.
  • Page 25 The cooking time starts counting down when cooking starts and the time zone display will illuminate all parts of the symbol. The set cooking time is divided into 4 equal parts and each part of the bit period belonging to the symbol or the last track.

  • Page 26: Enabling Key Lock

    6.1.5 Enabling Key Lock Using the key lock feature, you can prevent the interference in the oven. Touch until the symbol on the screen. »The display shows" OFF "appears. activate the key lock button. »Display after key lock is set to" On "appears and remains a symbol of burns ..

  • Page 27: Setting The Alarm Clock

    Touching the screen lock key lock is disabled after disabled "OFF" appears. 6.1.7 Setting the alarm clock Product time, no warning except cooking program, or you can use as a reminder. Alarm clock, there is no effect on the kiln operation functions. Warning purposes. For example, the food in the oven alarm clock you can use when you want to dial a certain time.
  • Page 28 The symbol starts to flash and beep sounds after the alarm time is completed. Turning off the alarm Audible warning alarm for two minutes. Press any key to stop the beep. Cut off and the time of day the voice prompts on the screen.

  • Page 29: Economy Mode (Eco)

    NOTE: The display shows the alarm time. If the alarm time is set at the same time and cooking time is displayed with a short period of time. To change the alarm tone Touch until the symbol on the screen. + /- Set button on the tone you want.

  • Page 30: Deactivating Economic Mode

    Enable economic mode by tapping the button. Screen after the economic mode is set to "On" appears and eco remain illuminated. Deactivating economic mode Tap on the screen until the eco symbol. The display shows "Off" appears. Touch to disable the economic mode. After the economic mode is disabled on the screen to "Off"...

  • Page 31: By Products/Products Labels Used

    7.BY PRODUCTS/PRODUCTS LABELS USED 7.1 Accessories Used for pastries, frozen foods and big roasts. 1. Wire grill Used for roasting and for placing the food to be baked, roasted or cooked in casserole dishes to the desired rack. 2. Small wire shelf It is placed into the tray (if supplied) in order to collect the dripping fat while grilling so that the oven is kept clean.

  • Page 32: Tags And Descriptions Used In The Product

    7.2 Tags and Descriptions used in the product 7.2.1 Type the label Given information on the product nameplate label on the product gas. Sticker on the location; According to the type of product, or the product can be seen in the front door or the rear wall of the lower lid is opened.

  • Page 33: Barcode Label

    7.2.2 Barcode Label Product bar code label of the product produced in the country, defining the characteristics of the brand and model, defined lines and spaces according to the rules of international label. Barcode label location; Product packaging is pasted on cardboard. 7.3.3 Energy Label Product energy label product energy class, the label shows the volume of the product.
  • Page 34 34 | EN...
  • Page 35 Energy Label lacatıon; Energy label products are in a group of periodicals. 35 | EN...

  • Page 36: General Working Principle

    8. GENERAL WORKING PRINCIPLE Mechanical control circuit used in the mechanical clock-controlled oven (Module) control of the oven function, showing the mechanical formats, such as furnace uptime, choose food from the cooking guide, cooking demonstration of recipes, automatic cooking made from the cooking guide, showing the cooking time, the timer (set the time counting backwards , making a sound when time runs out) and gives the internal temperature of the oven control facilities.

  • Page 37: List Of Components / Component Working Principle

    9. LIST OF COMPONENTS / COMPONENT WORKING PRINCIPLE 9.1 Technical specifications of the components; Grid Resistance With the control button which allows you to act and electric ovens, grill and thermostat resistor .. is controlled by the control button under the commutator. Oven Heatıng Clemens Which is controlled by the control button...
  • Page 38 Turbo Heater Turbo and multifunctional ovens, oven On the wall in the back of the chassis embedded resistor (heating element). This air is drawn over the surface with the aid of suction holes and the suction holes on the rear wall with vent holes blown.

  • Page 39: Fault Flow / Fault Finding Diagrams

    10. FAULT FLOW / FAULT FINDING DIAGRAMS 10.1.Resistance Faults 10.1.1 Resistance does not work;the food is not cooked 39 | EN...

  • Page 40: Lamp Fault

    10.2 Lamp Fault 10.2.1 Furnace is working but the oven does not illuminate 40 | EN...

  • Page 41: Oven Does Not Work,Oven Lamp Does Not Light

    10.2.2 Oven does not work,oven lamp does not light, 41 | EN...

  • Page 42: Termostat Fault

    10.3 Termostat Fault 10.3.1 Furnace runs continuosly,the thermostat is not tripped. 42 | EN...

  • Page 43: Therminal Fault

    10.4 Therminal Fault 10.4.1There is no power from the terminal does not diffuse into the electric furnace 43 | EN...

  • Page 44: When The Fuse Blows The Oven Is Plugged Into The Wall Socket

    10.4.2 When the fuse blows the oven is plugged into the Wall socket. 44 | EN...
  • Page 45 11.COMPONENTS CONTROL Current and power drawn by components on the product with the instrument called a multimeter measured. The current drawn by the components on the product and the power is measured with a multimeter name given instrument. For the measurement of resistance Turbo example; Multimeter to measure resistance is brought into position to measure the resistance of the resistor Turbo.
  • Page 46 The work of the look of a resistance value in the multimeter display shows that in the case. a resistance value in a secure, avometer resistance is seen. resistance value does not appear damaged. 46 | EN...

  • Page 47: Component Assembly / Disassembly Be Used In Equipment

    12. COMPONENT ASSEMBLY / DISASSEMBLY BE USED IN EQUIPMENT Screwdrivers Needlenose Nippers 47 | EN...

  • Page 48: Component Assembly / Di̇sassembly

    13.COMPONENT ASSEMBLY / DİSASSEMBLY NOTE: The following components disassembly operations in reverse order. Component Apply installations. 13.1 Replacement of the knob Pull knob to yourself to remove. Push the new knob against the control panel. Rounded sufoces on the knobs shaft and commutators shaft must overlap. 48 | EN...

  • Page 49: Replacement Of The Upper Cover Sheet

    13.2 Replacement of the upper cover sheet Unscrew 10 screws placed on the upper cover sheet. Pull the tree sheet to wards the rear ot the oven and lift to remove. 49 | EN...

  • Page 50: Replacement Of The Control Panel

    13.3 Replacement of the control panel Unscrew two screws mounted on both right and left side of the panel. Lit the contro panel until pins become free form the housing.Pull the control panel by taking care of cables.Pull the cable sockets.Away form the panel. 50 | EN...

  • Page 51: Replacement Of The Front Door

    13.4 Replacement of the front door Open the oven door. As shown in the picture,pull down the hinge clips on both sides ot the oven door. 51 | EN...

  • Page 52: Replacement The Front Door Hinge

    .Position the door halt open as shown. Remove the oven door by pulling it away trom the oven as it is in the halt open position. Important: Don't forget to close the hinge clips when reassembling the door.Other wise,the door can't be closed. 13.5 Replacement the front door hinge Remove the front cover with the screws with a screwdriver after removal of the side of the hinges.

  • Page 53: Replacement Of The Removable Glass Cover 3

    After removing the screws on the hinges to pull the empty slot and change with a new hinge. 13.6 Replacement of the removable glass cover 3 Remove the top decor, located on the lid first. Pull yourself to remove the front door inner glass. 53 | EN...
  • Page 54 Get in the middle of the glass remaining in pulling yourself. After removing the screws pull as seen in the picture below. 54 | EN...

  • Page 55: Replacement Of The Removable Glass Cover 2

    13.7 Replacement of the removable glass cover 2 Before replacement ot the oven door according to instructions in user manuel. Remove door inner glass by apparatus tor removing the inner glass.Insert apparatus to signet gap on the glass and move the glass up. 55 | EN...
  • Page 56 56 | EN...
  • Page 57 Before remove the bottom sheet metal unscrew the screws both sides of the bottom sheet metal. Unscrews placed botom ot the oven door. 57 | EN...
  • Page 58 Remove plastic parts (protiles) figure as shown. Ventilation decors can be changed by apparatus for removing the inner glass. 58 | EN...
  • Page 59 Glass fixing locks can be replaced. 59 | EN...

  • Page 60: Eplacement Of The Removable Glass Cover 4

    13.8 Replacement of the removable glass cover 4 Remove of the plastic part mounted upper side of the oven door by pulling yourself. Lift in mast glass up then remove then glass by pulling in direction as shown in the figure. Repair this operation to remove the second and third inner glass.
  • Page 61 Important: It is important in mounting all inner glasses to position the bottom corners ot glasses in to the bottom plastic housings properly. 61 | EN...
  • Page 62 Screw glass carrying plastic to locking springs. Fix,group to door left / right profiles. Bands are sticked to in mast door metal sheet on both sides of the door profiles. 62 | EN...

  • Page 63: Replacement Of The Handle

    13.9 Replacement of the handle First disassemble the oven door. Use an alien key sited 2 to remove the handle screws placed two sides ot the handle. Remove the handle by pulling away trom the oven door. 63 | EN...

  • Page 64: Replacement Of The Comutators

    Cover and insert the remaining 2 screws holding the screwdriver handle with the help of the clipboard. 13.10 Replacement of the comutators Firstly,remove the knobs and disassemble the control panel. Unplug the electrical connection plugs ot the comutator to be replaced. Unbend the pins ot control panel.Demount the pin ot comutator plasic placed in to hole on the control panel.Turn the comutator plastic in clockwise direction to the plastic trom demount.

  • Page 65: Replacement Of The Oven Thermostat

    13.11 Replacement of the oven thermostat First remove the thermostat knob and disassamble the conrol panel.Unbend the panel pin and demount the thermostat plastic pin trom the control panel. Turn commutator plastic clockwise direction to remove the group trom the panel. 65 | EN...

  • Page 66: Replacement Of The Thermostat Bulb

    13.12 Replacement of the thermostat bulb Thermostat bulb is placed on the right top ot the rear wall ot the cavity To reach thermostat bulb,upper and rear cover sheets should be demounted unscrew the screw ot bulb support sheet. Pull the sheet away trom the cavity. 66 | EN...
  • Page 67 Pull the bulb away trom the support sheet.Replace the bulb with new one and do operations ot demounting in reverse order to assemble the new bulb. View ot the bulbin oven cavity can be seen in the picture. 67 | EN...

  • Page 68: Replacement Of The Bi-Metal Thermostat

    13.13 Replacement of the bi-metal thermostat First remove the thermostat knob and disassambie the control panel.Unbend the panel pin and demount the thermostat plastic pin trom the control panel.Turn comutator plastic clockwise direction to remove the group trom the panel. 13.14 Replacement of the engine cooling To reach the cooling motor upper cover sheet should be demounted.
  • Page 69 Cooling up tor is placed on the upper wall ot oven cavity Turn the cooling motor and support sheet group clock wise direction to demount. 13.15 Replacement of the ventilation plate First replace the upper cover sheet. Unscrew 2 screws which hold the ventilation sheet metal,are placed the cavity inner ceilling.

  • Page 70: Replacement Of The Ventilation Thermostat

    Ventilation sheet metal could be removed by pulling it as shown in the figure. 13.16 Replacement of the ventilation thermostat Firstly remove oven cover upper sheet metal. Ventilation thermostat is tixed to ventilation hole by two screws. 70 | EN...
  • Page 71 Change / remove ventilation thermostat by unscrew the screws. 71 | EN...

  • Page 72: Replacement Of The Rear Cover Sheet

    13.17 Replacement of the rear cover sheet Unscrew 8 screws lased for mounting the rear cover sheet and remove the sheet. Oven back wall will be side opening position. This rear back wall can be dismount from notched. 72 | EN...

  • Page 73: Replacement Of The Side Walls

    13.18 Replacement of the side walls Unscrew 7 screws and remove the free side wall. Dismount the side wall in order to remove the front side profiles. Afterwords, unscrews the three screws replace by the new one. 73 | EN...

  • Page 74: Replacement Of The Bottom Plate

    13.19 Replacement of the bottom plate Unscrew ten screws on the oven floor sheet. Remove the oven floor sheet as shown in the figure. 74 | EN...

  • Page 75: Replacement Of The Switch

    13.20 Replacement of the switch Top wall should be removed in order to diassembie the switch. Unscrew the screw which hold switch to side wall. Afterwords,displaced the switch from oven side wall. 75 | EN...
  • Page 76 Pull the switch and the change by the new one. 76 | EN...

  • Page 77: Replacement Of Cataliytic Side Walls

    Switch 13.21 Replacement of cataliytic side walls Firstly remove the side racks,by unscrew the side racks bolt. 77 | EN...
  • Page 78 Replace by the new one and place the side rocks. 78 | EN...

  • Page 79: Replacement Of Top Heating Element

    13.22 Replacement of top heating element Dismount rear and top cover sheets. Dismount electrical connections. 79 | EN...
  • Page 80 Grid resistance furnace connects to the chassis 2 Remove the screws with a screwdriver. Open the front cover and ground grid resistance 2 Remove the screw that connects to the wall. 80 | EN...

  • Page 81: Replacement Of The Bottom Heating Element

    Front grill idle resistance (through chassis) çıkartın.dah then a new scheme based on the electrical resistance of the terminals plug and close the rear wall. 13.23 Replacement of the bottom heating element Fisrt dismount the rear cover sheet. Dismount electrical connections. 81 | EN...
  • Page 82 Resistor connection Unscrew the screws with a screwdriver. Pull the heaters towards yourself to dismount. 82 | EN...

  • Page 83: Replacement Of The Ring Heater

    13.24 Replacement of the ring heater Firstly,remove the oven top and back wall. Disconnect the wiring for ring heater. Remove the fan cover sheet by unscrewing the screws. Afterwords,unsscrew the two screws that fixed the ring heater to cavity. 83 | EN...

  • Page 84: Replacement Of The Seal Oven

    Take the ring heater from inside cavity.Connect the wire to terminal according to wiring diagram and close in back wall. 13.25 Replacement of the seal oven Open the oven door. Remove the seal from hole on the cavity and replace with new one. 84 | EN...

  • Page 85: Replacement Of The Turbo Motor

    13.26 Replacement of the turbo motor Firstly,remove the oven top wall,back wall and tan cover sheet. Disconnect the wire. 85 | EN...
  • Page 86 Turbo fan Unscrew the nut and fan with the help of forceps taken. Turbo engine that connects to the chassis by removing 3 screws, replace the turbo engine. Then the electrical terminals according to the scheme of the new turbo engine and rear walls turn off your jewelry.

  • Page 87: Replacement Of The Terminal Box

    13.27 Replacement of the terminal box Firstly,remove the back wall. Open the terminal cover. 87 | EN...
  • Page 88 Terminal that connects to the rear wall and right in the box on the left (marked in the picture) Unscrew the screws with a screwdriver. Remove the cables in the back wall of the terminal block. Terminals and the cable from the wall and replace it with a new scheme by removing the electrical connection structure according to your.

  • Page 89: Replacing The Runners

    13.28 Replacing the runners Located in the side walls of the furnace to get the wire rack wire rack wire rack bolts from the housing and replace it with a new wire rack. 13.29 Replacing the oven lamp Located in the oven to duy lamb + glass group just to change the lamp Unscrew the glass. Located in the oven replace it with a new lamp.

  • Page 90: Replacement Of The Oven Square Lamp

    Hear the oven light bulb with lamp + glass behind the bakery to change your senses in the upper right side of your nails unscrew the rescue. 13.30 Replacement of the oven square lamp Located on the side walls within the chassis frame, freeing you from the lamp, remove the nail and replace it with a new one.

  • Page 91: Replacement Of The Signal Lamp

    13.31 Replacement of the signal lamp Firstly remove the burner plate. Depends on the signal lamp socket, plug socket, remove the signal lamp behind the dashboard. 91 | EN...

  • Page 92: Replacement Of The Glass Wool

    Sticking Pull the plug and replace the signal lamp 13.32 Replacement of the Glass Wool For this operation must remove the first side walls and the rear housing Disconnect the frame wire around the wire wrapped with glass wool. Glass wool loose change with a new one. 92 | TR...

  • Page 93: Changing The Clock Display

    13.5 Changing the Clock Display Remove the pull card. 93 | EN...
  • Page 94 Card board is connected with the 4 screws. Remove the screws with the help of a screwdriver. 94 | EN...
  • Page 95 The display card and card holder plastic. 95 | EN...

  • Page 96: Thermostat Change

    13.2 Thermostat change Disconnect the cables on the commutator and the thermostat. 96 | TR...
  • Page 97 Remove the cable connected to the thermostat. The screwdriver with 2 screws on the plastic. 97 | TR...

  • Page 98: Removal Warning Light

    You can change the thermostat wasted. 13.3 Removal Warning Light Pull yourself the warning lamp. 98 | TR...

  • Page 99: Removal Switches

    13.4. Removal Switches Disconnect the cables on the commutator. Switchgear has 2 screws attached to the plastic. Unscrew the plastic Switchgear counterclockwise direction. 99 | TR...
  • Page 100 Switches can change with a new one. 100 | TR...

  • Page 101: Pyro Oven Specifications Assembly / Di̇sassembly

    14. PYRO OVEN SPECIFICATIONS ASSEMBLY / DİSASSEMBLY 14.1 Isolation sheet metal connection Before remove isolation sheet metal firstly displace back wall and bottom sheet metal. In pyro ovens different from others isolation sheet metal covers isolation. As shown from the figure.

  • Page 102: Displacement Of Catalysor

    14.2 Displacement of Catalysor Firstly,remove oven top sheet metal and ventilation sheet. As shown from the figure catalysor fix to the oven top sheet by 3 boits.These screws are placed inside the cavity celling Unscrew 3 screws and change catalysor why new one. 14.3 Replacement door lock Remove the top wall.
  • Page 103 There is a part tor tixing ot lock.Turn this part opposite direction to arrow. 103 | TR...

  • Page 104: Replacement Of The Ventilation Sheet

    14.3 Replacement of the ventilation sheet Firstly,remove the oven top wall. Remove the ventilation sheet plastic. 104 | TR...
  • Page 105 Unscrew the two screws that is tor ventilation sheet plastic and take the plastic. Unscrew the two screws as shown figure. 105 | TR...

  • Page 106: Replacement Of The Pyro Ventilation Sheet Metal

    14.3 Replacement of the pyro ventilation sheet metal Remove the ventilation sheet metal opposie directon to arrow as shown figure. 14.4 Changing the pyro cooling engines Unscrew the top of the wall before you remove the cooling engine. Insert the engine cooling ventilation plate to connect the 3 screws screwdriver assistance.

  • Page 107: Replacing The Engine Cooling Thermostat

    14.5 Replacing the engine cooling thermostat Remove the top of the wall before you change the thermostat. Insert the thermostat ventilation plate to connect the 2 screws, and you change the thermostat with a new one. 107 | TR...
