Summary of Contents for arcelik 9540 H

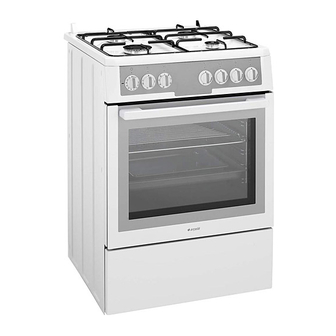

- Page 1 Oven Oven Oven Oven 9540 H 9540 H 9540 H 9540 H 285300128...
- Page 2 Please read this manual first. Please read this manual first. Please read this manual first. Please read this manual first. Dear Customer, We would like you to obtain the best performance from your product which has been manufactured in modern facilities and under strict quality control procedures. Therefore, we advise you to read through this User Manual carefully before using your product and keep it for future reference.
-
Page 3: Table Of Contents
TABLE OF CONTENTS General information How to use the hob Overview ............4 General information about cooking ....15 Technical specifications ........5 Using the hobs ..........15 Accessories ........... 6 How to operate the oven Important safety instructions General information on baking, roasting and grilling .......... -
Page 4: General Information
General information Overview Front door Burner plate Handle Top lid Bottom drawer Fan motor (behind steel plate) Tray Lamp Wire shelf Grill heating element Control panel Shelf positions Thermostat lamp Normal burner Rear left Mechanical timer Rapid burner Front left Thermostat knob Auxiliary burner Front right Function knob... -
Page 5: Technical Specifications
Technical specifications GENERAL GENERAL GENERAL GENERAL External dimensions (height / width / depth) 850 mm/600 mm/600 mm Voltage / frequency 220-240 V ~ 50 Hz Total power consumption 2.4 kW Fuse min. 16 A Cable type / section H05VV-FG 3 x 1,5 mm Cable length max. -
Page 6: Accessories
Accessories Accessories supplied can vary depending on the product model. All the accessories described in the user manual may not exist on your product. Proper positioning of the wire shelf an Proper positioning of the wire shelf and tray Proper positioning of the wire shelf an Proper positioning of the wire shelf an d tray d tray... -
Page 7: Important Safety Instructions
Important safety instructions This section contains safety instructions that will installation made by a qualified electrician help you avoid risk of injury and damage. All while using the product with or without a warranties will become void if you do not follow transformer. -
Page 8: Safety For Children
• Always use heat resistant oven gloves when parts of the packaging according to putting in or removing dishes into/from the environmental standards. hot oven. SAVE THESE INSTRUCTIONS • Do not use the product with front door glass Safety when working with gas removed or cracked. -
Page 9: Safety When Working With Electricity
case of gas smell from you local gas The manufacturer shall not be liable for any provider. damage caused by improper use or handling errors. What to do when you smell gas The oven can be used for defrosting, baking, DANGER roasting and grilling food. - Page 10 bubble wrap or thick cardboard and tape it • Do not use the door or handle to lift or move securely. the product. • To prevent the wire grill and tray inside the Do not place any objects onto the product oven from damaging the oven door, place a and move it in upright position.
-
Page 11: Installation Before Installation
Installation • Any kitchen furniture next to the appliance Before installation must be heat-resistant (100 °C min.). To ensure that critical air gaps are maintained Room ventilation under the appliance, we recommend that this All rooms require an openable window, or appliance is mounted on a solid base and that equvalent, and some rooms will require a the feet do not sink into any carpet or soft... - Page 12 Electrical connection Gas connection Connect the product to a grounded outlet/line DANGER protected by a fuse of suitable capacity as stated Product can be connected to gas in the "Technical specifications" table. Have the supply system only by an authorised grounding installation made by a qualified and qualified person.
- Page 13 Hose tip-NG • Repeat the same procedure for the other end of the hose and complete the gas Safety hose cylinder connection. O-ring (gasket) • Never forget to make the gas leakage Clamp control. Leakage control at the connection point DANGER •...
-
Page 14: Preparation
Preparation 2. Wipe the surfaces of the appliance with a Tips for saving energy damp cloth or sponge and dry with a cloth. The following information will help you to use Initial heating your appliance in an ecological way, and to save Heat up the product for about 30 minutes and energy: then switch it off. -
Page 15: How To Use The Hob
How to use the hob the cooking zone you want instead of sliding General information about cooking DANGER Gas cooking Never fill the pan with oil more than one • Size of the vessel and the flame must match third of it. Do not leave the hob each other. - Page 16 Gas shut off safety system (in models with thermic component) As a counter measure against blow out due to fluid overflows at burners, safety mechanism trips and shuts off the gas. 1. Gas shut off safety • Push the knob inwards and turn it counter clockwise to ignite.
-
Page 17: How To Operate The Oven
How to operate the oven • Distribute the pieces to be grilled on the General information on baking, wire shelf. roasting and grilling • If the grilling is on the wire shelf, locate a dripping pan under it in order to collect the DANGER fat. -
Page 18: Operating Modes
Surf function Surf function Surf function Surf function Warm air heated by the rear heater is evenly distributed throughout the oven very fast by means of the fan. It is suitable for cooking your meals in different shelf levels and preheating is not required in most cases. -
Page 19: Using The Oven Clock
indicating that the set time is over is heard Using the oven clock and the power is cut. If you do not want to use the timer function, turn the knob counterclockwise towards the hand symbol. 5. Turn off the oven with the Time Setting knob, function knob and temperature knob. - Page 20 Dish Dish Cooking level number Cooking level number Rack position Rack position Temperature (°C) Temperature (°C) Cooking time Cooking time Dish Dish Cooking level number Cooking level number Rack position Rack position Temperature (°C) Temperature (°C) Cooking time Cooking time (approx.
-
Page 21: How To Operate The Grill
biscuits simultaneously in 1, 2 or 3 trays • During grilling bring the timer knob to During grilling bring the timer knob to During grilling bring the timer knob to During grilling bring the timer knob to thanks to the homogenous heat distribution the hand sign by turning the the hand sign by turning the the hand sign by turning the... -
Page 22: Maintenance And Care
Maintenance and care General information The surface might get damaged by some detergents or cleaning materials. Service life of the product will extend and the Do not use aggressive detergents, cleaning possibility of problems will decrease if the powders/creams or any sharp objects product is cleaned at regular intervals. -
Page 23: Removal Of Oven Door
» Be sure that side rack and side wall has been 1. Remove pin (1) (1) (1) (1) of the side rack by pulling it in the direction of arrow with the side wall it placed properly. is mounted. Catalytic walls Side walls or just back wall of oven interior may be covered with catalytic enamel. -
Page 24: Replacing The Oven Lamp
Steps carried out during removing process Position of lamp might vary from the figure. should be performed in reverse order (steps 4, 3, 2 and 1) to reattach the door. Do not forget to close the clips at the hinge housing If your oven is equipped with a round lamp: when reinstalling the door. -
Page 25: Troubleshooting
Troubleshooting Oven emits steam when it is in use. It is normal that steam escapes during operation. This is not a fault. Product emits metal noises while heating and cooling. When the metal parts are heated, they may expand and cause noise. This is not a fault. Product does not operate. - Page 26 Filename: 285300128.doc Directory: \\ar.arcelik\arcdfs\bol\bol-users\AR720007 Template: D:\Documents and Settings\ar720007\Application Data\Microsoft\Templates\Normal.dotm Title: Subject: Author: Arcelik BT Keywords: Comments: Creation Date: 10.09.2012 09:03:00 Change Number: Last Saved On: 10.09.2012 09:08:00 Last Saved By: Arcelik BT Total Editing Time: 5 Minutes Last Printed On: 10.09.2012 09:09:00...
