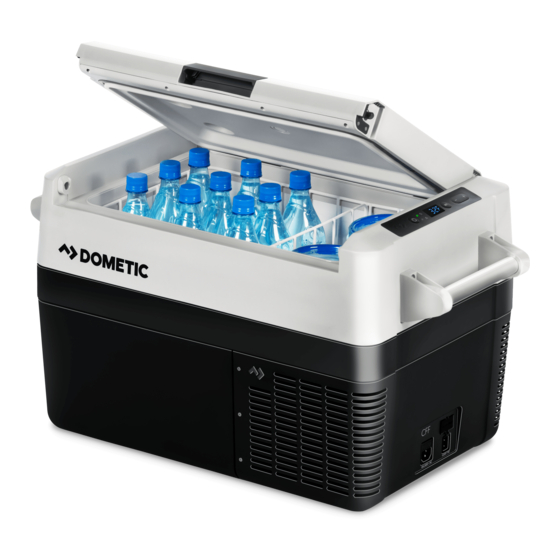

Portable fridge
EN
Operating Manual..............................................

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CFF and is the answer not in the manual?

Questions and answers

Summary of Contents for Dometic CFF

  • Page 1 MOBILE COOLING CFF12, CFF18, CFF20, CFF35, CFF45, CFF50LPDZ, CFF70DZ Portable fridge Operating Manual..........
  • Page 2 EN   Dometic CFF Copyright © 2024 Dometic Group. The visual appearance of the contents of this manual is protected by copyright and design law. The underlying technical design and the products contained herein may be protected by design, patent or pending patent. The trademarks mentioned in this manual belong to Dometic Sweden AB. All rights are reserved.
  • Page 3: Table Of Contents

    A failure to read and follow the instructions and warnings set forth herein may warnings, and related documentation, may be subject to changes and updates. For up-to-date product information, please visit documents.dometic.com.
  • Page 4: Explanation Of Symbols On The Device

    EN   Dometic CFF 3 Explanation of symbols on the device Warning! Risk of fire. Flammable materials. 4 Safety instructions DANGER! Electrocution hazard On boats: If the device is powered by the mains, ensure that the power supply has a residual current device (RCD), a residual current circuit breaker (RCCB), or a ground fault circuit interrupter (GFCI).
  • Page 5 Dometic CFF   EN WARNING! Health hazard This cooling device is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the cooling device by a person responsible for their safety.
  • Page 6: Scope Of Delivery

    EN   Dometic CFF The cooling device shall not to be exposed to rain. 5 Scope of delivery  Quantity Description Item in Fig.  on page 6 Cooler Connection cable for DC connection Connection cable for AC connection...
  • Page 7: Intended Use

    • Alterations to the product without express permission from the manufacturer • Use for purposes other than those described in this manual Dometic reserves the right to change product appearance and product specifications. 7 Technical description A low maintenance refrigerant circuit with compressor provides the cooling. The generous insulation and the powerful compressor ensure efficient and fast cooling.
  • Page 8 EN   Dometic CFF Scope of functions • Power supply with priority circuit for connecting to the AC power supply • Three-level battery monitor to protect the vehicle battery (switches off automatically at low battery voltage) • Display with temperature gauge in °C and °F •...
  • Page 9: Operating And Display Elements

    Dometic CFF   EN Operating and display elements Lid latches ...
  • Page 10: Operating Panel

    EN   Dometic CFF Operating panel  Item Description Explanation Switches the cooling device on or off when the button is pressed for between one and two seconds Status indication LED lights up green: Compressor is on LED lights up orange: Compressor is off...
  • Page 11: Connection Sockets

    Dometic CFF   EN Item Description Explanation – Press once to decrease the value Press once to increase the value CFF70DZ only: Status indication: LED lights up blue when the compartment is cooling Connection sockets  Item Description Connection socket AC voltage supply...
  • Page 12 EN   Dometic CFF  3. Fasten the handle with the enclosed screws in 2 of the waist shaped holes.
  • Page 13 Dometic CFF   EN Reversing the lid opening (CFF70DZ only)  To reverse the lid opening proceed as shown ( Fig.  on page 13).
  • Page 14 EN   Dometic CFF Opening or removing the lid ...
  • Page 15 Dometic CFF   EN To open the lid unlatch (A). CFF35, CFF45: The lid can be opened from either side. CFF35, CFF45: To remove the lid, unlatch both sides at the same time (B). CFF12, CFF18, CFF20, CFF50LPDZ, CFF70DZ: Push the lid beyond the lid stop position (B).
  • Page 16: Operation

    EN   Dometic CFF Removing the basket (CFF35 and CFF45 only) and divider (CFF18 only) NOTICE! Damage hazard Removing the basket with the lid open may scratch the lid and deform the basket. It is recommended to remove the lid before removing the basket.
  • Page 17: Connecting The Cooling Device

    Dometic CFF   EN Allow warm food to cool down first before placing it in the cooling device to keep cool. Do not open the cooling device more oen than necessary. Do not leave the cooling device open for longer than necessary.
  • Page 18: Using The Cooling Device

    EN   Dometic CFF Battery monitor mode HIGH Switch-off voltage at 12 V 10.1 V 11.2 V 11.8 V Restart-voltage at 12 V 11.4 V 12.2 V 12.6 V Switch-off voltage at 24 V 21.5 V 24.1 V 24.6 V Restart voltage at 24 V 23 V 25.3 V...
  • Page 19 Dometic CFF   EN Latching the cooling device lid NOTE CFF35, CFF45: When latching the lid, ensure that both latch side pins are fully engaged to ensure a good lid seal. One latch may engage slightly before the other. If the lid is not closed equally at both sides, press until a second click is heard.
  • Page 20: Setting The Temperature

    EN   Dometic CFF When fixing with luggage tighteners proceed as shown ( Fig.  on page 20).  Setting the temperature Press the button once. – Use the buttons to select the cooling temperature. The cooling temperature appears in the display for a few seconds. The display flashes several times and then the current temperature is displayed again.
  • Page 21: Setting The Display Brightness

    Dometic CFF   EN The cooling temperature appears in the display for a few seconds. The display flashes several times and then the current temperature is displayed. Setting the display brightness The display brightness can be dimmed for low ambient light conditions.
  • Page 22: Replacing The Ac Fuse

    EN   Dometic CFF 9.12 Replacing the AC fuse DANGER! Electrocution hazard Disconnect the power supply and the connection cable before you replace the device fuse. 1. Disconnect the power supply to the device. 2. Remove the connection cable. 3. Pry out the fuse insert ( Fig. ...
  • Page 23: Cleaning And Maintenance

    Dometic CFF   EN 9.15 Replacing the light PCB NOTICE! Damage hazard The lamp can only be replaced by the manufacturer, a service agent; or similarly qualified person to avoid hazard. 10 Cleaning and maintenance CAUTION! Electrocution hazard Ensure that the cooling device is disconnected from the power supply before any cleaning or maintenance work.
  • Page 24 EN   Dometic CFF Problem Possible cause Suggested remedy The device DC fuse has blown. Replace the defective fuse, Replacing the DC fuse page 22. The vehicle fuse has blown. Replace the vehicle’s DC outlet fuse. Please refer to your vehicle’s operating manual.
  • Page 25: Warranty

    Dometic CFF   EN 12 Warranty (see dometic.com/dealer). The warranty applicable to your product is 3 year(s). If the product does not work as it should, please contact your retailer or the manufacturer's branch in your country For repair and warranty processing, please include the following documents when you send in the device: •...
  • Page 26 EN   Dometic CFF CFF12 Refrigerant R134a or R600a (see type label) 10°C … –   18°C Cooling capacity (R134a) 20°C … –   18°C Cooling capacity (R600a) Climate class N, T Ambient temperature 16°C … 43°C equivalent 0.037 t (R134a) Global warming potential (GWP)
  • Page 27 Dometic CFF   EN CFF20 Total volume 21 L Connection voltage 12 V  / 24 V 100 V  … 240 V Rated current 12 V 5.6 A Rated current 24 V 2.5 A Rated current 240 V 0.52 A 20°C … –   18°C...
  • Page 28 EN   Dometic CFF CFF35 Dimensions W x H x D (including handles) 704 mm × 407 mm × 398 mm W x H x D (without handles) 590 mm × 407 mm × 398 mm Weight 17.2 kg Certificates CFF45 Total volume 44 L Connection voltage 12 V  / 24 V...
  • Page 29 Dometic CFF   EN CFF50LPDZ 20°C … –   18°C Cooling capacity Climate class N, T Ambient temperature 16°C … 43°C Refrigerant R600a Refrigerant volume 13 g (R600a) Dimensions W x H x D (including handles) 903 mm × 407 mm × 443 mm (handle up) W x H x D (without handles) 785 mm ×...
  • Page 30 EN   Dometic CFF This product contains fluorinated greenhouse gases. The cooling unit is hermetically sealed.
