MOBILE COOLING
CFF12, CFF18, CFF20, CFF35, CFF45,
CFF70DZ

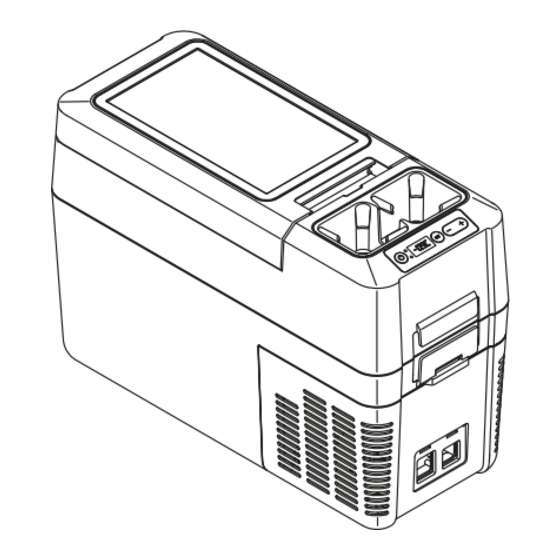

Mobile refrigerating appliance
EN
Operating manual . . . . . . . . . . . . . . . . . . . . . 3
25
. . . . . . . . . . . . . . . . . . . . . . . . . . .
CFF
‫ﻣﻛﺛﻑ ﺟﻬﺎﺯ ﺍﻟﺗﺑﺭﻳﺩ‬
AR
AR
‫ﺩﻟﻳﻝ ﺍﻟﺗﺷﻐﻳﻝ‬

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CFF35 and is the answer not in the manual?

Questions and answers

Douglas MacMillan
April 16, 2025

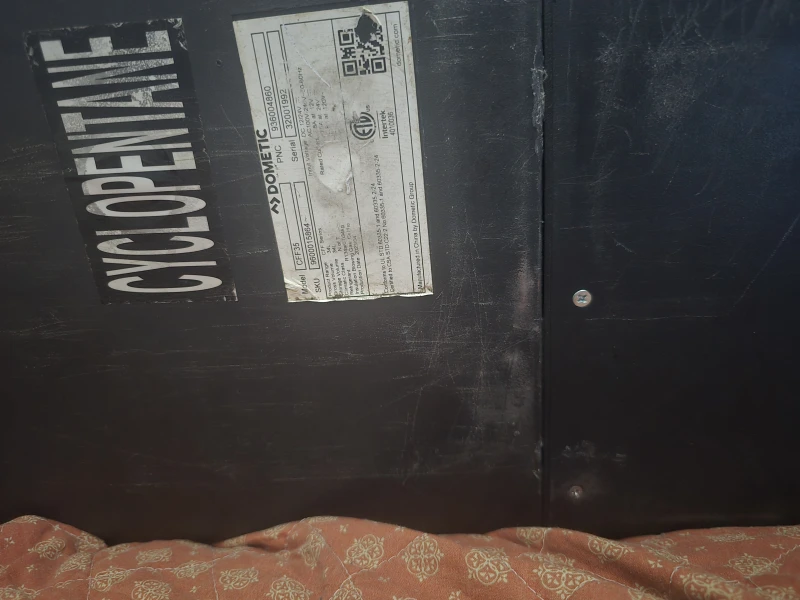

My cooler is half empty and it will not build up no more colder than −2. And I gotta set of −18. Everything seems to be working.What's the problem
