Fig. 20
Fig. 22
Fig. 24 A – X-1005 HELMET
Fig. 25
 Position the wiring and the connectors behind the cheek pad lining, lifting it up with the help of a
flat head tool.
1.4.

Repositioning the padding

Reposition the internal comfort padding by following the specific instructions provided in the helmet
user manual.
Warning: Always verify the proper length of your chinstrap and adjust it if necessary, referring to the
specific helmet instructions.
Fig. 21
Fig. 23
Fig. 24 B – X-903 HELMET
Fig. 26

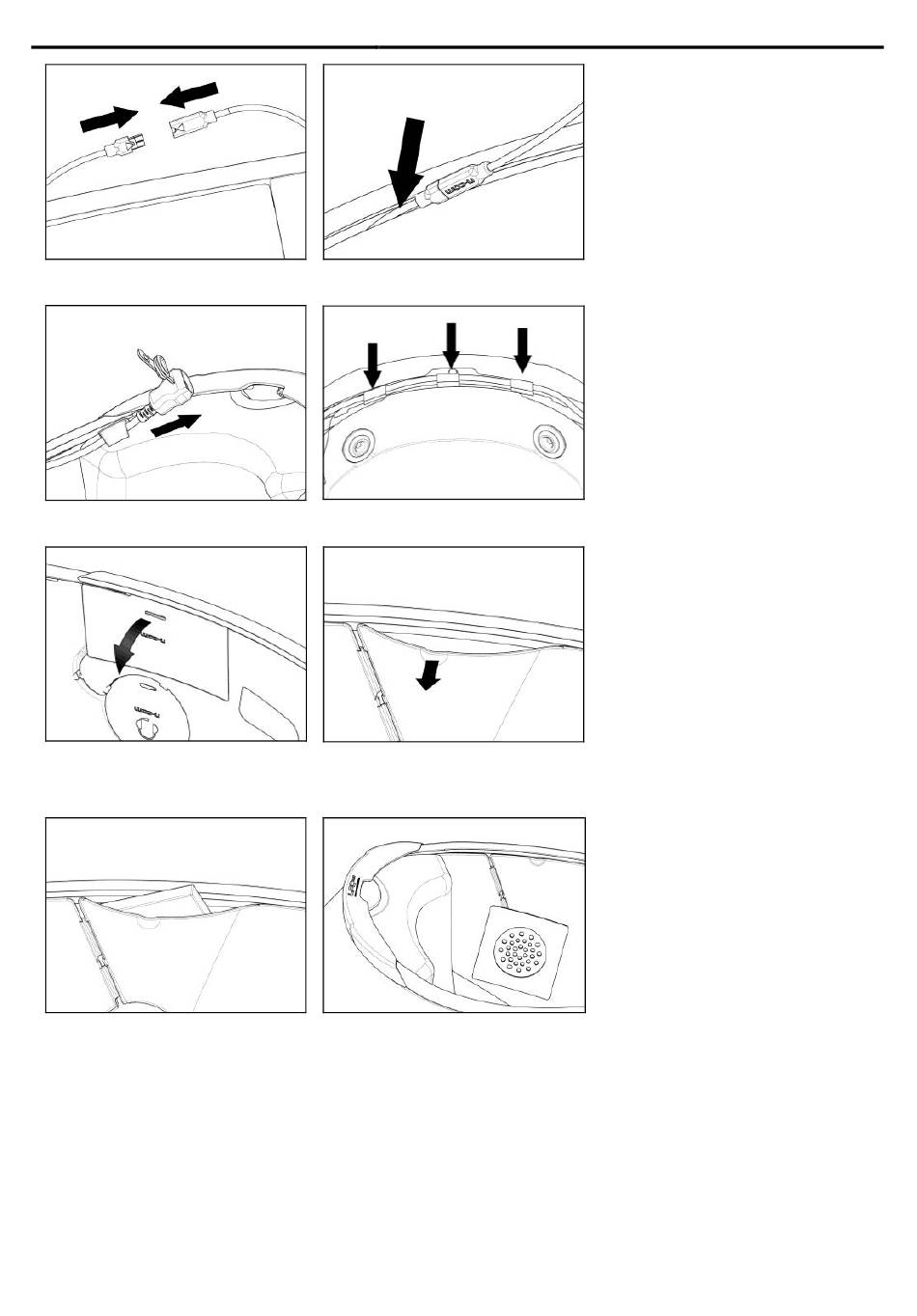

 Hook up the microphone to
the connector coming out of
the e-Box (Fig. 20).
 Position the wiring and the
connectors behind the cheek
pad lining, lifting it with the
help of a flat head tool (Fig.
21).
 Pass the USB
through the elastic
found on the comfort padding
(Fig. 22).
 Position the wiring and the
antenna in the rear part of the
helmet (Fig. 23).
 On the right side of the
helmet, bend the cheek pad
lining and insert the battery in
its housing (Fig. 24 A/B - 25).
ONLY FOR X-1005 HELMETS:
Remove the filling material.
Keep it in case you want to
use the helmet without the N-
Com system installed in the
future.
 Position the right loudspeaker
in its housing, inserting the
cable in the special groove
(Fig. 26). If necessary, secure
the earphone
adhesive supplied as standard
equipment.
mini wire
band
using the
