Reveal™ Wireless Sensors
RBS301 User Guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the REVEAL RBS301 and is the answer not in the manual?

Questions and answers

Summary of Contents for Multitech REVEAL RBS301

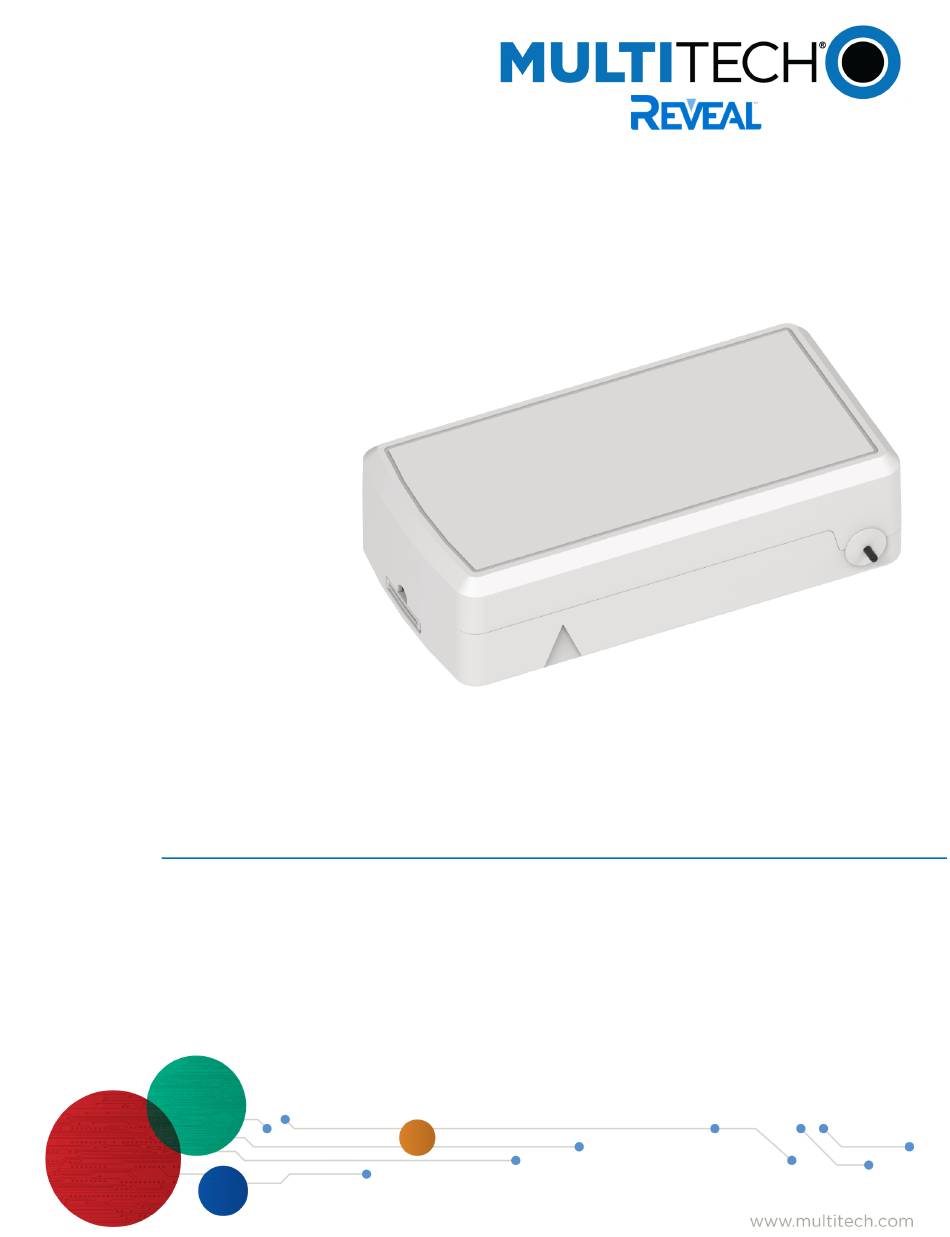

  • Page 1 Reveal™ Wireless Sensors RBS301 User Guide...
  • Page 2 Trademarks and Registered Trademarks MultiTech, the MultiTech logo, DeviceHQ, xDot, and Conduit are registered trademarks and Reveal and mDot are trademarks of Multi-Tech Systems, Inc. All other products and technologies are the trademarks or registered trademarks of their respective holders.
  • Page 3: Table Of Contents

    CONTENTS Contents Chapter 1 – Product Overview ..........................4 Overview ..................................4 Documentation ................................4 Chapter 2 – Preparing Sensor........................... 5 Preparing an RBS301 Sensor............................5 Quick Start..................................5 Chapter 3 – Hardware Specifications and Information ..................... 6 Temperature Ranges..............................6 Battery Life..................................
  • Page 4: Chapter 1 - Product Overview

    This manual is a generic guide for Reveal™ sensors with a 301 configuration. For specific sensor product guides and related information from Reveal™, go to: https://www.multitech.com/products/sensors Documentation The following documentation is available at https://www.multitech.com/products/sensors. Document Description Part Number User Guide...
  • Page 5: Chapter 2 - Preparing Sensor

    Console, use the following steps. To use a third-party network, refer to the Connecting Radio Bridge LoRaWAN Sensors on Gateways and Networks (RB00001) , which is available through the sensor page at https://www.multitech.com/products/sensors Create a Radio Bridge console account at: https://console.radiobridge.com/...
  • Page 6: Chapter 3 - Hardware Specifications And Information

    Refer to the Sensor Battery Estimator.xlsx spreadsheet on the on the sensor's product page for specific battery life estimates: https://www.multitech.com/products/sensors Battery life depends on the number of transmissions per day. Power required for a message transmission is greater than the “sleep current” for high power radio technologies (e.g, LoRaWAN).
  • Page 7 HARDWARE SPECIFICATIONS AND INFORMATION Remove the battery. Insert the new battery and close the case. Reveal™ Wireless Sensors RBS301 User Guide...
  • Page 8: Mechanical Drawings

    HARDWARE SPECIFICATIONS AND INFORMATION Mechanical Drawings The mechanical drawings provided in this section are for the main body of the sensor. All dimensions use inches unless specified. Indoor RBSx01 Sensors Reveal™ Wireless Sensors RBS301 User Guide...
  • Page 9: Chapter 4 - Regulatory Information

    (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Per FCC 15.21, Changes or modifications not expressly approved by MultiTech could void authority to operate the devices.
  • Page 10: Industry Canada Class B Notice

    REGULATORY INFORMATION Industry Canada Class B Notice This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. Cet appareil numérique de la classe B respecte toutes les exigences du Reglement Canadien sur le matériel brouilleur. This device complies with Industry Canada license-exempt RSS standard(s). The operation is permitted for the following two conditions: the device may not cause interference, and this device must accept any interference, including interference that may cause undesired operation of...
  • Page 11: Chapter 5 - Common Messages

    Sensor Specific Messages chapter. Message Protocol This section defines the protocol and message definitions for the device. Note: MultiTech provides a web-based console at console.radiobridge.com for configuring and monitoring devices. We recommend using this console rather than the protocols defined in this section.
  • Page 12: Reset Message 0X00

    COMMON MESSAGES Message Payload Description 0xfb Link quality Sent after each downlink configuration (refer to Link Quality Message) or to periodically ping the network server (refer to Link Quality Check Period). 0xfe Reserved. 0xff 1-byte status Downlink message ACK. Refer to Downlink ACK for more detail.
  • Page 13 COMMON MESSAGES Bytes Description Sensor type code, a product identifier sent as part of the reset message. Door/Window 0x01 Door/Window High Security 0x02 Contact 0x03 Temperature No-Probe 0x04 Temperature External Probe 0x05 Single Push Button 0x06 Dual Push Button 0x07 Acceleration-Based 0x08 Movement...
  • Page 14 COMMON MESSAGES Bytes Description Firmware version. Reset code. Used for factory diagnostics. Firmware Version The 16-bit firmware version is constructed from reset payload Bytes 2-3, where Byte 2 is the most significant byte. Beginning with version 2.0, the format is as shown in the following table. The original format is compatible by redefining the reserved most significant bit (Bit 15).
  • Page 15: Supervisory Message 0X01

    COMMON MESSAGES Supervisory Message 0x01 Wireless sensors periodically send a supervisory message so the backend system can verify the device is still alive and report error conditions. The supervisory message payload include current sensor status. You can also trigger a supervisory message. To do this: Place a magnet near the triangular notch on the side of the sensor.
  • Page 16: Downlink Messages

    COMMON MESSAGES Bytes Description Current Sub-Band, sub-band currently joined and used for communication to the gateway and network server. Value ranges from 1-8 for US915. For other regions, value depends on available channels. RSSI of last DOWNLINK received, signed integer format values in bytes 1 and 2 in two’s complement format.
  • Page 17 COMMON MESSAGES Radio Config The following table shows the radio config byte definition. Note: Available in firmware version 1.4 or newer. Bits Description Not used (reserved) Enable duty cycle requirement. LoRaWAN EU868 only. To enforce the EU868 band duty cycle requirements, enable before production deployment.
  • Page 18: Advanced Configuration

    COMMON MESSAGES Bit 7:6 Bits 5:0 Sampling period defined in increments of 250ms (0.25-15 seconds). Sampling period defined in increments of seconds (1-63 seconds). Sampling period defined in increments of minutes (1-63 minutes). Sampling period defined in increments of hours (1-63 hours). Advanced Configuration Use this command for advanced configuration parameters that apply to all sensor types.
  • Page 19: Downlink Ack

    COMMON MESSAGES Downlink ACK The cloud app uses this downlink ACK message to verify the that sensor received the downlink message received and it was considered valid. The sensor replies to the downlink data with a 0xFF message (downlink ACK) with the payload shown in the following table.
