3.2

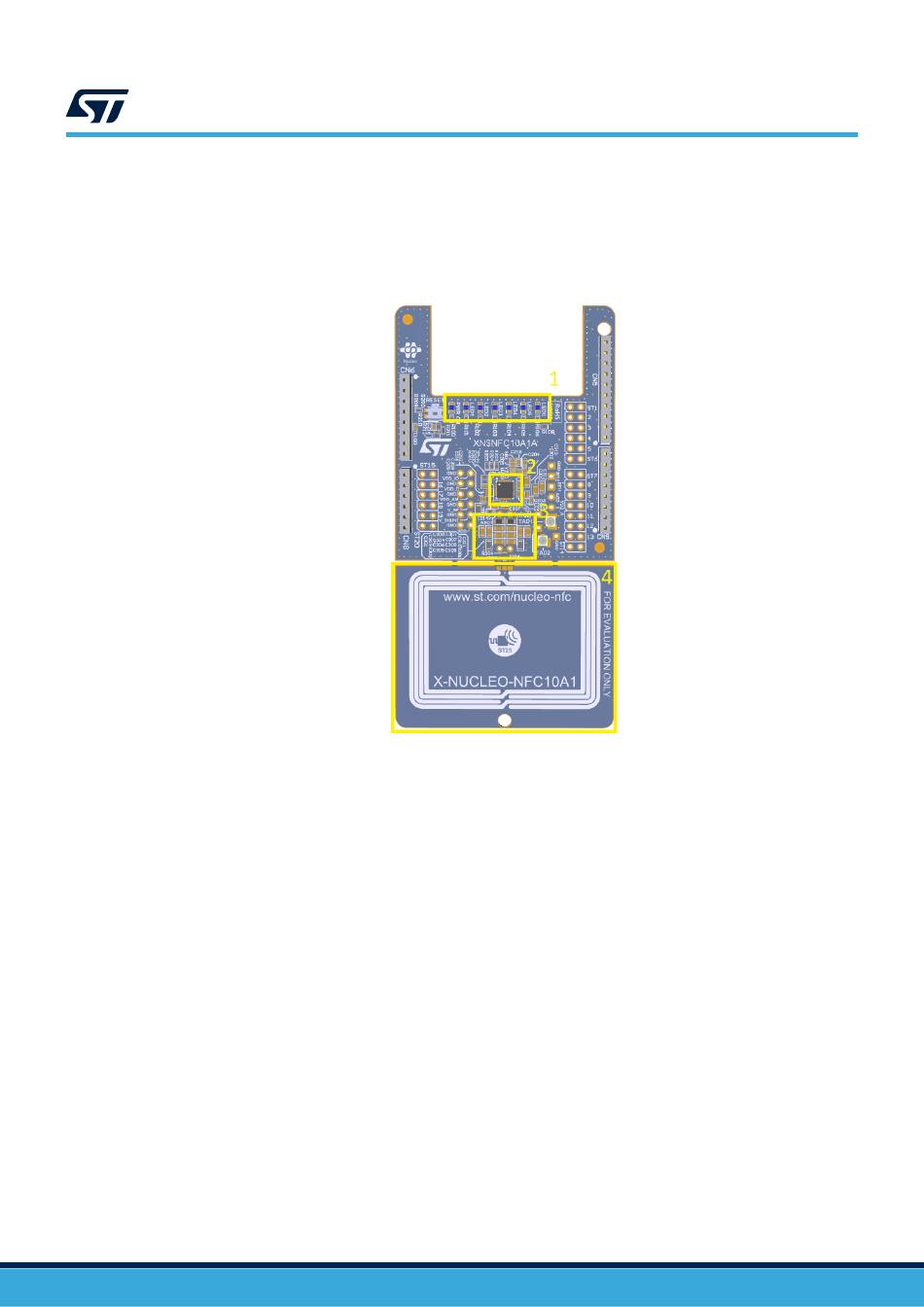

X-NUCLEO-NFC10A1 expansion board component placement

1. General purpose LEDs
2. ST25R200
3. Matching circuit
4. 47x34 mm four-turn antenna
3.3

ST25R200 device

The ST25R200
integrated data framing system for:
• NFC-A/B (ISO 14443A/B) reader
• NFC-V (ISO 15693) reader up to 53 kbps
Special mode of the AFE and framing system can be used to implement other custom protocols such as
MIFARE® classic.
UM3414 - Rev 1
Figure 2. X-NUCLEO-NFC10A1 component placement
is a high performance NFC device that includes an advanced analog front end (AFE) and a highly
UM3414
Hardware
page 5/19
