Getting started with the NFC card reader expansion board based on ST25R200
Introduction
The
X-NUCLEO-NFC10A1
NFC card reader expansion board is based on the
The expansion board supports ISO14443A/B and ISO15693.
The
ST25R200
manages frame coding and decoding in reader mode for standard applications, such as NFC, proximity, and
vicinity HF RFID standards. It supports ISO/IEC 14443 type A/B and ISO/IEC 15693 RF communication protocols as well as the
detection, reading and writing of NFC Forum type 1, 2, 4, and 5 tags.
It embeds a low power wake-up system capable of detecting an approaching tag. It also features a low power RC oscillator and
wake-up timer to wake up the device automatically after a selected time period and check for a tag presence.
Notice:
For dedicated assistance, please submit a request through our online support portal at www.st.com/support.
UM3414 - Rev 1 - October 2024
For further information contact your local STMicroelectronics sales office.

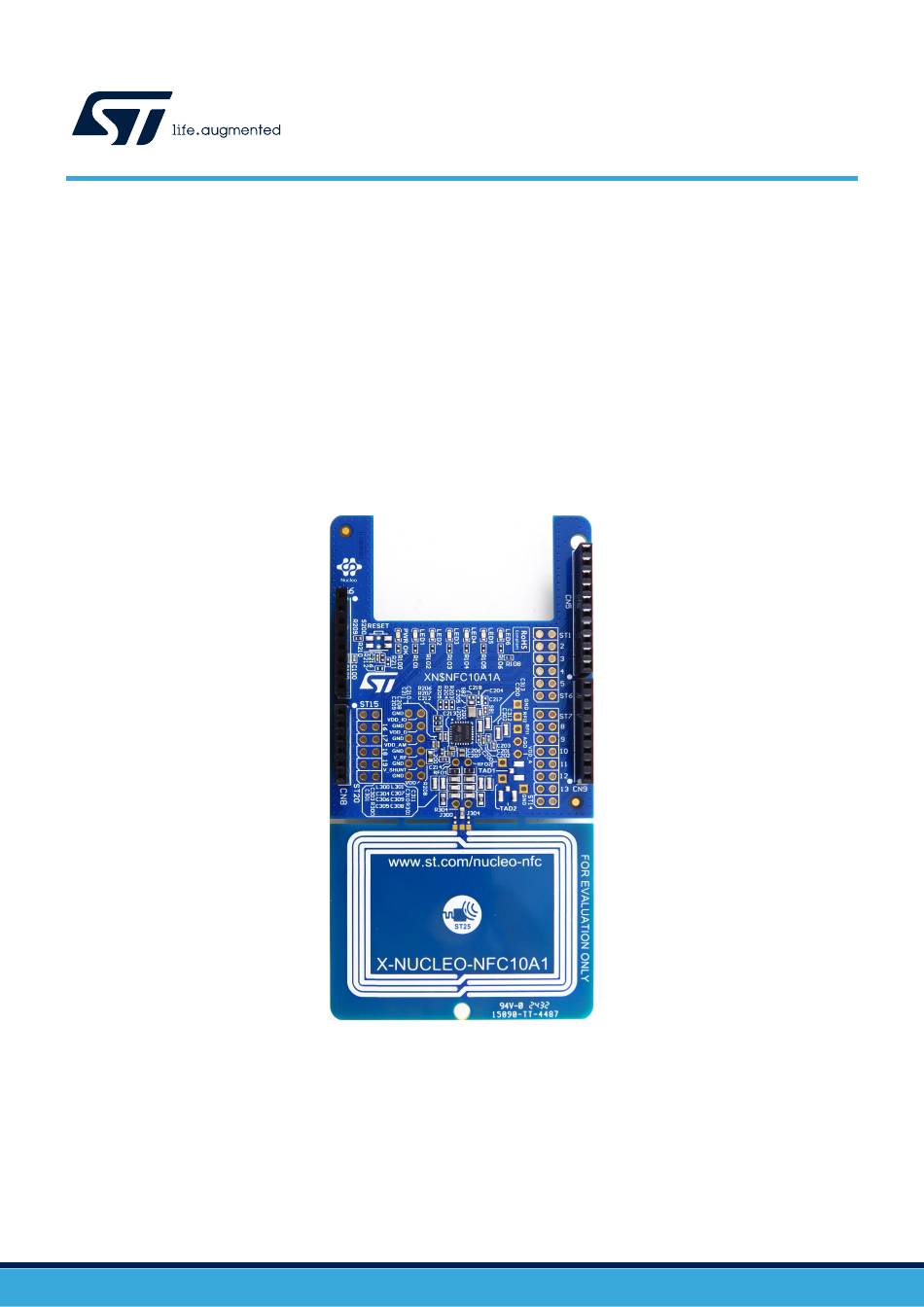

Figure 1.
X-NUCLEO-NFC10A1 expansion board
for STM32 Nucleos
ST25R200
device.
UM3414
User manual
www.st.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ST X-NUCLEO-NFC10A1
Summary of Contents for ST X-NUCLEO-NFC10A1
-
Page 1: Figure 1. X-Nucleo-Nfc10A1 Expansion Board
Figure 1. X-NUCLEO-NFC10A1 expansion board Notice: For dedicated assistance, please submit a request through our online support portal at www.st.com/support. UM3414 - Rev 1 - October 2024 www.st.com For further information contact your local STMicroelectronics sales office. -
Page 2: Getting Started
NUCLEO-G071RB hosting the STM32G071RB microcontroller. The STM32 Nucleo firmware and the related documentation are available at http://www.st.com/stm32nucleo. System requirements To use STM32 Nucleo boards with the X-NUCLEO-NF10A1 expansion board the following software and hardware are required: •... -
Page 3: Board Setup
UM3414 Board setup Board setup To set up the board: Step 1. Connect the X-NUCLEO-NFC10A1 expansion board to the STM32 Nucleo board from the top through the Arduino® UNO R3 connectors Step 2. Power the STM32 Nucleo board using a Micro-B USB cable Step 3. -
Page 4: Hardware
ST25R200 IC module and the STM32 Nucleo board are connected through CN5, CN6, CN8 and CN9 connectors (see the tables below). Table 1. Interconnections between the X-NUCLEO-NFC10A1 expansion board and the NUCLEO-G071RB board (left side) Signal Connector Pin number NUCLEO-G071RB... -
Page 5: X-Nucleo-Nfc10A1 Expansion Board Component Placement
UM3414 Hardware X-NUCLEO-NFC10A1 expansion board component placement Figure 2. X-NUCLEO-NFC10A1 component placement 1. General purpose LEDs ST25R200 3. Matching circuit 4. 47x34 mm four-turn antenna ST25R200 device ST25R200 is a high performance NFC device that includes an advanced analog front end (AFE) and a highly integrated data framing system for: •... -
Page 6: Schematic Diagrams
Schematic diagrams Figure 3. X-NUCLEO-NFC10A1 circuit schematic (1 of 3) Extension connectors VBUS LED6 VBUS 3V3 LED5 C100 C_2µ2_0402_X5R LED4 IOREF (NC) LED3 nRESET SCLK_MCU +3V3 LED2 MISO_MCU MOSI_MCU /SS_MCU LED1 PWR Ok Header 8X1_Female Header 10X1_Female R100 680R ST15... -
Page 7: Figure 4. X-Nucleo-Nfc10A1 Circuit Schematic (2 Of 3)
Figure 4. X-NUCLEO-NFC10A1 circuit schematic (2 of 3) ST25R200 HF Reader C200 C201 Antenna Connection P200 TAD2_200 R209 TP200 U.FL-R-SMT-1 TP219 VDD_A RESET RFO1 RFO1 RFI1 TP201 TP202 RFO2 S200 RFI2 C203 RFO2 TP203 C202 EVQP7C01P-NC RFI1 RFI1 C_2µ2_0402_X5R P201... -
Page 8: Figure 5. X-Nucleo-Nfc10A1 Circuit Schematic (3 Of 3)
Figure 5. X-NUCLEO-NFC10A1 circuit schematic (3 of 3) Antenna Circuit incl. EM I Filter and M atching C300 200pF_0603 RFI1 C302 C301 4.7pF_0603 10pF_0603 C303 L300 ANT2 RFO1 J300 closed 0R R304 270nH R300 2.4R 39pF_0603 C304 C305 C306 300pF_0603... -
Page 9: Bill Of Materials
UM3414 Bill of materials Bill of materials Table 3. X-NUCLEO-NFC10A1 bill of materials Item Q.ty Ref. Part/Value Description Manufacturer Order code Multilayer Ceramic C100, C203, Capacitors C207, C209, 2.2 uF MLCC - MURATA GRM155R60J225ME15D C211 SMD/SMT 2.2UF 6.3V 20% 0402... - Page 10 UM3414 Bill of materials Item Q.ty Ref. Part/Value Description Manufacturer Order code Multilayer Ceramic Capacitors C301, C311 4.7 pF MLCC - MURATA GRM1885D1H4R7CA01D SMD/SMT 4.7 pF pF 50 V C0G 0603 CERAMIC CAPACITOR C302, C312 10 pF MULTICOMP MC0603N100F500CT 10PF 50V, C0G, 1%, 0603, Multilayer Ceramic...
- Page 11 UM3414 Bill of materials Item Q.ty Ref. Part/Value Description Manufacturer Order code Fixed Inductors 0603 270nH L300, L301 270 nH Unshld 2% COILCRAFT 0603LS-271XGLB 300mΩ AEC- Q200 Standard LEDs LED100 - SMD Green LITE-ON LTST-C190KGKT Clear 571nm LED101, LED102, Standard LEDs LED103, - SMD Blue LITE-ON...
- Page 12 UM3414 Bill of materials Item Q.ty Ref. Part/Value Description Manufacturer Order code Thick Film Resistors - SMD R304 0 Ω 0 Ω 100mW YAGEO AC0603FR-070RL 0603 1% AEC- Q200 Tactile Switches 3.5x2.9mm S200 PANASONIC EVQ-P7C01P Right Ang Light Touch Switch ST1, ST2, ST3, ST4, ST7, ST8, CONN HE14...
-
Page 13: Board Versions
X-NUCLEO-NFC10A1 versions PCB version Schematic diagrams Bill of materials XN$NFC10A1A schematic diagrams XN$NFC10A1A bill of materials XN$NFC10A1A 1. This code identifies the X-NUCLEO-NFC10A1 expansion board first version. It is printed on the board PCB. UM3414 - Rev 1 page 13/19... -
Page 14: Regulatory Compliance Information
Conformity. Notice for United Kingdom The kit X-NUCLEO-NFC10A1 is in compliance with the UK Radio Equipment Regulations 2017 (UK SI 2017 No. 1206 and amendments) and with the Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012 (UK SI 2012 No. 3032 and amendments). Applied standards are listed in the UK Declaration of Conformity. -
Page 15: Revision History
UM3414 Revision history Table 5. Document revision history Date Revision Changes 22-Oct-2024 Initial release. UM3414 - Rev 1 page 15/19... -
Page 16: Table Of Contents
Host interface and GPIO connection ..........4 X-NUCLEO-NFC10A1 expansion board component placement ......5 ST25R200 device . -
Page 17: List Of Tables
X-NUCLEO-NFC10A1 bill of materials ........ -
Page 18: List Of Figures
X-NUCLEO-NFC10A1 component placement ........ - Page 19 ST’s terms and conditions of sale in place at the time of order acknowledgment. Purchasers are solely responsible for the choice, selection, and use of ST products and ST assumes no liability for application assistance or the design of purchasers’...
