Quick Start Guide
NFC card reader expansion board based on ST25R3911B for STM32 Nucleo
(X-NUCLEO-NFC05A1)
th
Version 1.0.0 (July 14
, 2017)

Advertisement

loading
Need help?

Need help?

Do you have a question about the X-NUCLEO-NFC05A1 and is the answer not in the manual?

Questions and answers

Related Manuals for ST X-NUCLEO-NFC05A1

Summary of Contents for ST X-NUCLEO-NFC05A1

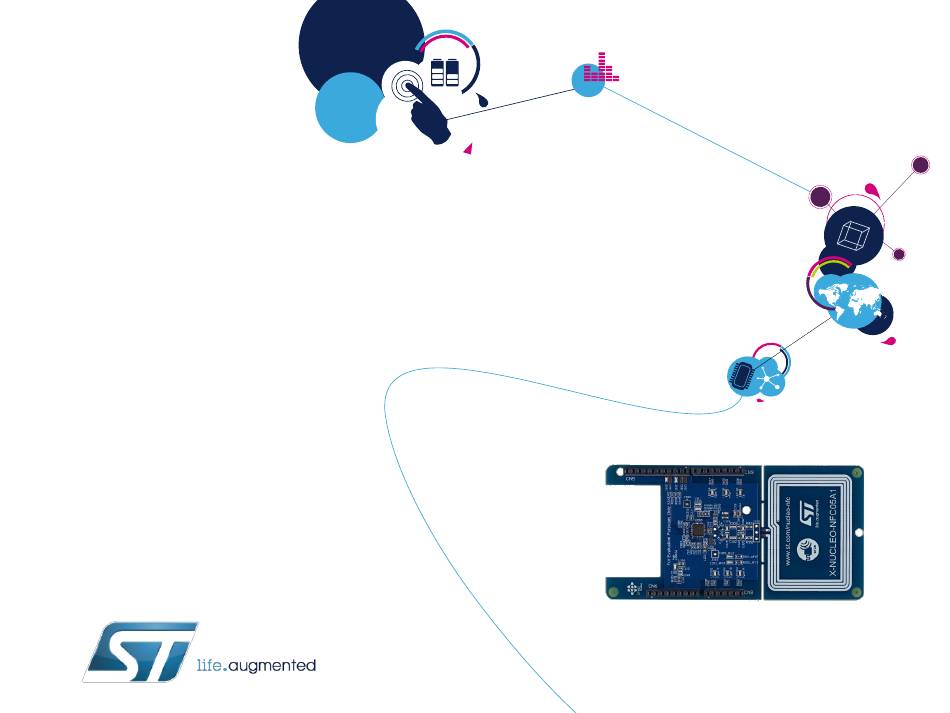

  • Page 1 Quick Start Guide NFC card reader expansion board based on ST25R3911B for STM32 Nucleo (X-NUCLEO-NFC05A1) Version 1.0.0 (July 14 , 2017)
  • Page 2 Quick Start Guide Contents X-NUCLEO-NFC05A1: NFC card reader expansion board Hardware and Software overview Setup & Demo Examples Documents & Related Resources STM32 Open Development Environment: Overview...

  • Page 3: Hardware Overview

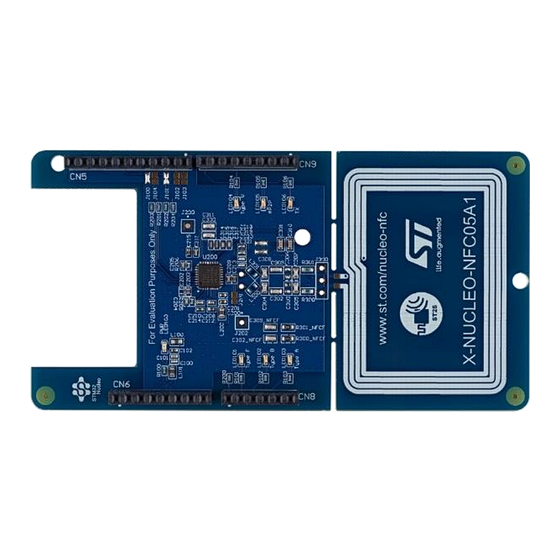

    NFC card reader expansion board Hardware Overview X-NUCLEO-NFC05A1 Hardware description • The X-NUCLEO-NFC05A1 is an NFC card reader expansion board based on the ST25R3911B. The expansion board is configured to Arduino UNO R3 connector support ISO14443A/B, ISO15693, FeliCa™ AP2P communication. By default, a VHBR compatible matching is populated to achieve bit rates up to 3.4 Mbps.

  • Page 4: Software Overview

    • Free, user-friendly license terms • Sample implementation available on theX-NUCLEO-NFC05A1 expansion board,plugged into one NUCLEO-F401RE orNUCLEO-L476RG board • Complete RF/NFC abstraction (RFAL) for allmajor technologies Latest info available at www.st.com including complete ISO-DEP and NFC-DEP layers X-CUBE-NFC5...
  • Page 5 Quick Start Guide Contents X-NUCLEO-NFC05A1: NFC card reader expansion board Hardware and Software overview Setup & Demo Examples Documents & Related Resources STM32 Open Development Environment: Overview...
  • Page 6 Setup & Demo Examples HW prerequisites • 1x NFC card reader expansion board (X-NUCLEO-NFC05A1) • 1x STM32 Nucleo development board (NUCLEO-F401RE or NUCLEO-L476RG) • 1x USB type A to Mini-B USB cable NUCLEO-F401RE • 1x Laptop/PC for logging output (optional)
  • Page 7 Setup & Demo Examples SW prerequisites • STSW-LINK008: ST-LINK/V2-1 USB driver • X-CUBE-NFC5 • copy the .zip file content into: “c:\Program Files (x86)\STMicroelectronics\” folder on your Laptop/PC. The package will contain source code example (Keil, IAR, True Studio) based on NUCLEO-F401RE or NUCLEO-L476RG.
  • Page 8 Start coding in just a few minutes with X-CUBE-NFC5 www.st.com/x-nucleo Go to X-CUBE-NFC5 package Select Generic Nucleo docs & Driver porting X-NUCLEO-NFC05A1 Drivers Serial Utility Application examples Download & unpack X-CUBE-NFC5 Download & install STM32 Nucleo ST-LINK/V2-1 USB driver Modify, build application Open project example Polling Application...
  • Page 9 X-CUBE-NFC5 Evaluate using X-CUBE-NFC5 From X-CUBE-NFC5 SW resource package Drag and drop STM32L476RG-Nucleo.bin on STM32 Nucleo drive Connect power supply (USB cable)
  • Page 10 X-CUBE-NFC5 Evaluate using X-CUBE-NFC5 Approach with a NFC tag When the expansion board detects the presence of the tag, it will poll and identify its UID and show the type of technology by lighting up the propper LED...
  • Page 11 Gerber files, BOM, Schematic • DB3333: NFC card reader expansion board based on ST25R3911B for STM32 Nucleo – data brief • UM2252: Getting started with the X-NUCLEO-NFC05A1 NFC card reader expansion board based on ST25R3911B for STM32 Nucleo – user manual X-CUBE-NFC5: •...
  • Page 12 Quick Start Guide Contents X-NUCLEO-NFC05A1: NFC card reader expansion board Hardware and Software overview Setup & Demo Examples Documents & Related Resources STM32 Open Development Environment: Overview...
  • Page 13 The STM32 Open Development Environment (ODE) consists of a set of stackable boards and a modular open SW environment designed around the STM32 microcontroller family. STM32 Nucleo STM32Cube expansion boards development software (X-NUCLEO) STM32Cube STM32 Nucleo expansion software development boards (X-CUBE) Function Packs (FP) www.st.com/stm32ode...
  • Page 14 Power supply STM32 microcontroller through USB or external source Integrated debugging Complete product range and programming from ultra-low power to high-performance ST-LINK probe ST morpho extension header Arduino™ UNO R3 extension headers www.st.com/stm32nucleo...
  • Page 15 Boards with additional functionality that can be plugged directly on top of the STM32 Nucleo development board directly or stacked on another expansion board. Connect Power Move/Actuate Interact Sense Motion MEMS sensors Environmental sensors DIL24 support for new devices Example of STM32 expansion board (X-NUCLEO-IKS01A1) www.st.com/x-nucleo...

  • Page 16: Software Components

    Environment is compatible with a number of IDEs including IAR EWARM, Keil MDK, and GCC-based environments. Users can choose from three IDEs from leading vendors, which are free of charge and deployed in close cooperation with ST. These include Eclipse-based IDEs such as Ac6 System Workbench for STM32 and the MDK-ARM environment.
  • Page 17 NFC, Wi-Fi, GNSS Audio amplifier ACCESS Touch controller Translate Operation Amplifier CREATE Move / Stepper motor driver DC & BLDC motor driver Actuate Industrial input / output POWER Power Energy management & battery General-purpose microcontrollers PROCESS Process Secure microcontrollers www.st.com/stm32ode Software...
