Cooper Lighting Solutions SURE-LITES AEL2 Series Installation Instructions

049-235

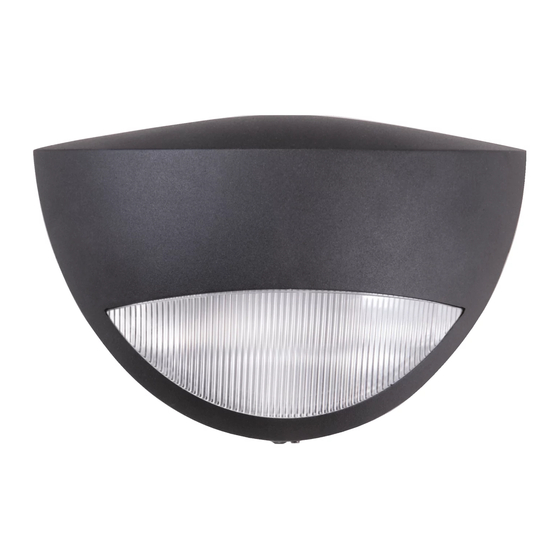

Installation Instructions for the Sure-Lites AEL2SD Wall Sconce Emergency Light
Suitable for Wet Locations, -30°C (-22°F) to +50°C (122°F) Ambient
WARNING
Risk of Fire/Electric Shock
If not qualified, consult an electrician.
Important Safeguards
WHEN USING ELECTRICAL EQUIPMENT, BASIC SAFETY
PRECAUTIONS SHOULD ALWAYS BE OBSERVED INCLUDING
THE FOLLOWING.
1. READ AND FOLLOW ALL SAFETY INSTRUCTIONS
2. Do not use in hazardous locations, or near gas or electric
heaters.
3. Do not let power supply cords touch hot surfaces.
4. Do not use this equipment for other than the intended use.
5. Installation is to be performed only by qualified personnel.
6. Install in accordance with National Electric Code and local
regulatory agency requirements.

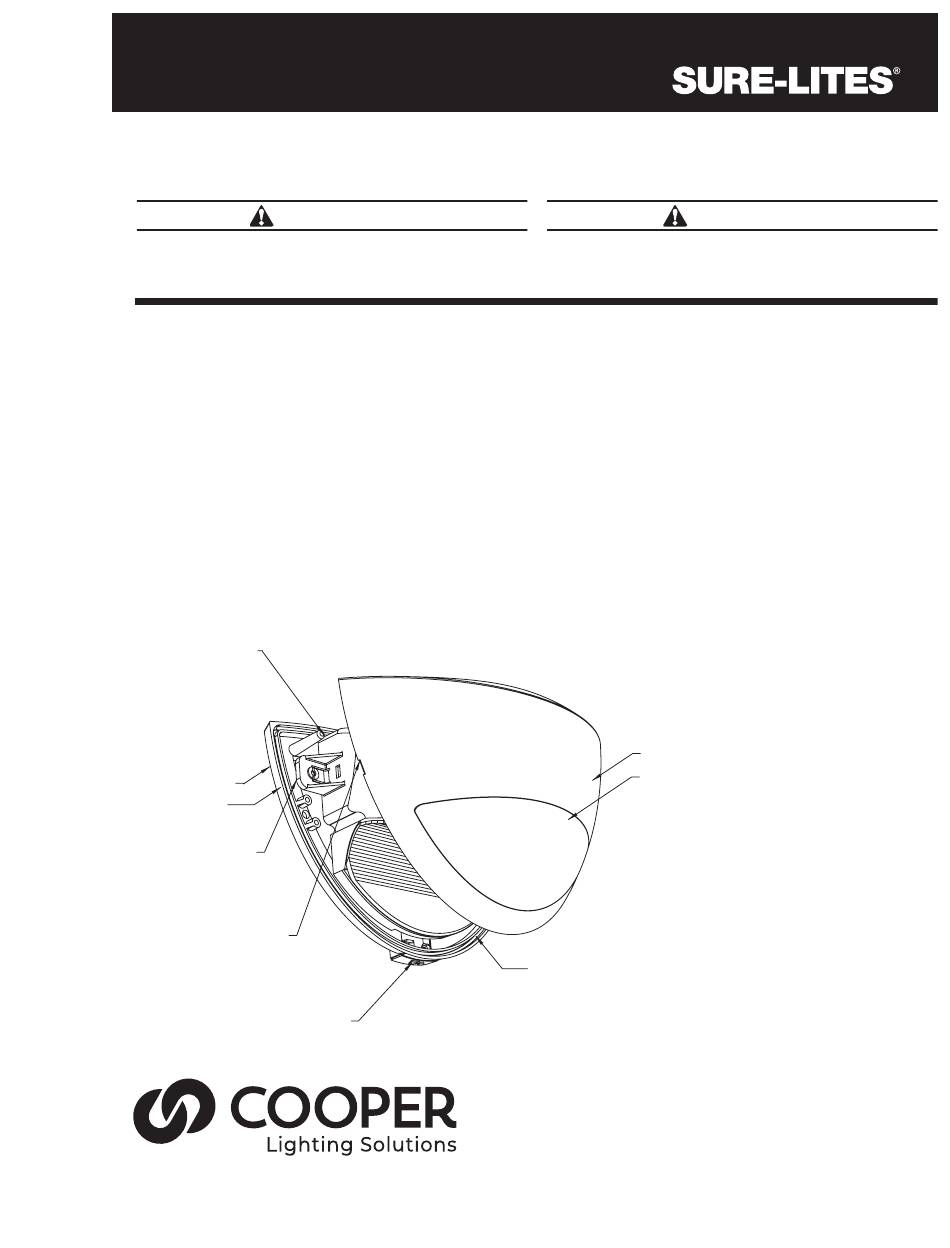

BASE GUIDE POSTS
BASE
BACK GASKET
PRY UP TO REMOVE
ENCLOSURE (LEFT
AND RIGHT SIDE)
PRY UP TO REMOVE
HOUSING (LEFT AND
RIGHT SIDE)
TEST BUTTON AND INDICATOR LIGHT
WARNING
Risk of Electric Shock
Disconnect power at fuse or circuit breaker before
installing or servicing.
7. The use of accessory equipment not recommended by the
manufacturer may cause an unsafe condition.
8. Equipment should be mounted in locations and at heights
where it will not readily be subjected to tampering by
unauthorized personnel.
9. SAVE THESE INSTRUCTIONS
Installation
1. De-energize the circuit at the junction box (J-box) where
the emergency light is to be installed.
2. Remove housing from base by placing a flat head
screwdriver in the two slots on the side and turning.
3. Remove the inner enclosure by placing a flat head screw
driver under the two snap latches and pry off. Remove the
plug from the test button and indicator light as the inner
enclosure is pulled away.
HOUSING
LENS
5. When mounting the AEL2SD on
6. For conduit mount, unscrew the
"O" RING GASKET
INS #
4. For wall mounting to an outlet
box, knock out the appropriate
mounting pattern on the base
and back gasket to match the
junction box being used. Route
wire approximately 2 inches
through wire access hole and
back gasket. Securely fasten the
mounting base and back gasket
with screws to the junction box.
uneven masonry surfaces such as
brick or stucco, the base should
be sealed properly with silicone
caulking to prevent water from
seeping in.
½" NPT plug located at the top of
the fixture, and screw in the user
supplied conduit hub.
