Summary of Contents for MHSC Savannah SS130
- Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. MAJESTIC SAVANNAH SS130 Owner's Manual Shop genuine replacement parts for MAJESTIC SAVANNAH SS130 Find Your MAJESTIC Fireplace Parts - Select From 585 Models -------- Manual continues below --------...

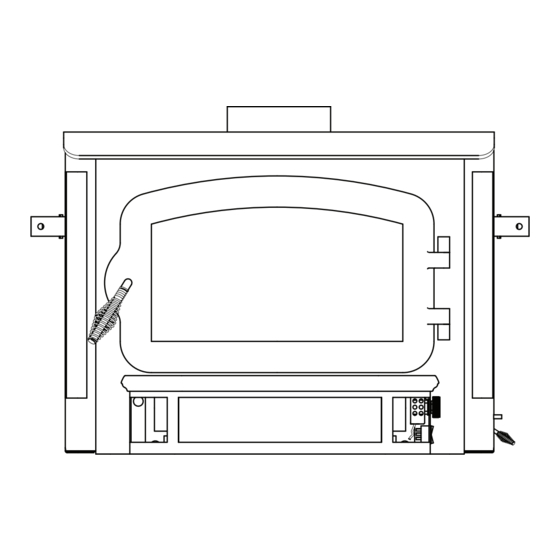

- Page 2 Savannah Wood Insert For Residential Installation Owners Manual Model: SSI30 6" (152 mm) Flue Required SAFETY NOTICE: REAd ThIS ENTIRE MANuAl bEFORE YOu INSTAll ANd uSE YOuR 203061 ApplIANCE. IF NOT pROpERlY INSTAllEd, A hOuSE FIRE MAY RESulT. TO REduCE VSI30 cover ThE RISk OF FIRE, FOllOW ThE INSTAllATION INSTRuCTIONS.
- Page 3 At MHSC, we are equally committed to your satisfaction as a customer and that is why we main- tain an exclusive network of the finest dealers in the industry. Chosen for their expertise and dedication to customer service, our dealers are factory-trained and know each MHSC product in detail.
-
Page 4: Table Of Contents
ANd OThER REpROduCTIvE hARM. CAlIFORNIA hEAlTh ANd SAFETY COdE SEC. 25249.6 NEEd TO ASk quESTIONS? REquIRE pARTS INFORMATION? First, contact the MHSC Dealer from whom you purchased your insert, for parts and service. Have the following information ready: • Date of purchase •... -
Page 5: Safety Information
MHSC dealer. 1. Check with the building inspector’s office for compliance Only use MHSC components or the warranty will be voided with local codes; a permit may be required. and a fire hazard may be created. -
Page 6: Materials Needed For Installation
If your chimney is too large, the heating uSE ONlY AuThORIZEd REplACEMENT pARTS appliance will have a difficult time to raise the “chimney FROM YOuR MhSC dEAlER. dO NOT INSTAll ANY OThER COMpONENTS. flue” temperature to give adequate draft, therefore causing a smoke back up, poor burn, or both. -
Page 7: Insert Dimensions And Specifications
Since so many variables affect performance, consult your MHSC Authorized Dealer to determine realistic expectations for your home. 3. Under specific conditions used during EPA emissions testing. -
Page 8: Pre-Installation Instructions
SSI30 Wood Insert pRE-INSTAllATION INSTRuCTIONS ThIS hEATER IS EXTREMElY hOT AFTER REAdINg ThESE INSTRuCTIONS, WhIlE IN OpERATION. IF YOu hAvE ANY dOubT AbOuT YOuR AbIlITY TO COMplETE YOuR SERIOuS buRNS CAN RESulT FROM INSTAllATION IN A pROFESSIONAl CONTACT. MANNER, YOu ShOuld ObTAIN ThE kEEp ChIldREN, pETS, ClOThINg SERvICES OF AN INSTAllER vERSEd ANd FuRNITuRE AWAY... -
Page 9: Clearances
SSI30 Wood Insert ClEARANCES CAlCulATINg ACCEpTAblE AlTERNATE FlOOR MATERIAlS Mantel All floor protection must be non-combustible (i.e. metal, brick, stone, mineral fiber, etc.). Any organic materials (i.e. plastics, wood or paper products, etc.) are combustible and Fascia or Trim must not be used. The floor protection specified includes some form of thermal designation such as R-value (thermal resistance) or k-factor (thermal conductivity). -
Page 10: Chimney Clearances
ChIMNEY ClEARANCES SSI30 Wood Insert The conditions for a chimney fire develop as follows: When ChIMNEY wood is burned slowly, it produces tar and other organic Refer to chimney and chimney connector manufacturer’s vapors which combine with expelled moisture to form instructions. - Page 11 SSI30 Wood Insert ChIMNEY ClEARANCES It is common for a masonry flue to be oversized for the pipe and Chimney layout insert. Such a chimney can take quite a while to warm up, Every bend in the flue will act as a brake on the exhaust and the insert performance will likely be disappointing.
-
Page 12: Installation
SSI30 Wood Insert INSTAllATION uNpACkINg ANd INSTAllATION INSTRuC- TIONS NOTE: The insert is extremely heavy. Do not attempt to move it without assistance. • Please read all instructions carefully before beginning. To remove the insert from the pallet you will need a 7/16" wrench or socket. •... - Page 13 Use only high temp ceramic fiber gaskets available at your MHSC dealer. NOTE: The flue collar has one side about 1/2" shorter than the other three.
- Page 14 SSI30 Wood Insert INSTAllATION FAN WIRINg CONvERSION FROM RIghT TO lEFT 1. Remove ash lip and shroud by lifting straight up. NOTE: The ash lip and shroud are held in place by a keyhole slot and bolt system. Lifting up on the ash lip allows the bolt head to slip through the keyhole.
-
Page 15: Blower And Ash Lip Assembly
SSI30 Wood Insert INSTAllATION blOWER ANd ASh lIp ASSEMblY 1. Attach the wires as shown in Figure 20 making sure you push all connections together tightly 2. Insert the snapstat into its holder as shown in Figure 19, making sure that the connectors are not touching the insert. -
Page 16: Installation Into A Masonry Fireplace
SSI30 Wood Insert INSTAllATION The chimney should be inspected for cracks, loose mortar SuRROuNd INSTAllATION and any other signs of deterioration or blockage. Always To install the surround on the insert, make sure the check with your local building code agency before you ratcheting brackets are in their forward most position. -
Page 17: Operation
Offset flue collars are available in two sizes (3" and 6") burning air dried seasoned hardwoods, as compared to from your MHSC dealer for your Savannah insert. When softwoods or to green or freshly cut hardwoods. Only use installing an offset flue collar it is important that the offset dry seasoned wood. -
Page 18: Negative Pressure
MHSC dealers carry adapters to attach to the insert 2. Burn insert with draft control wide open for several to connect an air duct for outdoor combustion air. -
Page 19: Building A Fire
SSI30 Wood Insert OpERATION & MAINTENANCE REMOvE bAFFlE 3. Flat spots on the painted surfaces are normal. 4. Shiny spots on the paint surface before burning is To remove the tubes you will start by removing the cotter normal. pin on the left end of each tube, then slide the tube to the 5. -
Page 20: Maintenance
Replace Baffle dOOR gASkET REplACEMENT REplACE glASS ONlY WITh hIgh TEMpERATuRE ST1088 The following steps should be followed for door gasket CERAMIC AvA/IlAblE FROM YOuR lOCAl MhSC replace baffle dEAlER replacement: 1. Ensure appliance is not in operation and is thoroughly Use of glass or other components from alternative sources cooled. -
Page 21: Replacement Parts
SSI30 Wood Insert REplACEMENT pARTS SSI30 Wood Insert Insert Ref. description SSI30 Blower Cord 203061 26D0619 VSI30 parts Blower Thermo Disc 49D0130 Secondary Air Tube, Middle 63D0026 Secondary Air Tube, Rear 63D0028 Leveler Bolt 63D0065 Secondary Air Tube, Front 63D0112 Spring Handle 63D0185 C-Cast Assembly 63D2004... - Page 22 SSI30 Wood Insert REplACEMENT pARTS SSI30 Wood Insert Insert (continued) Ref. description SSI30 Fall-Away Handle Assy. 63D2085 Adjustment Slide Plate 63D2090 Right Side Shroud 63D2100 Left Side Shroud 63D2102 Blower Enclosure Assy. 63D2105 Flue Collar Assy. 63D2111 Air Wash Assy. 63D2113 Cast Iron Primary Air Cover Assy.
-
Page 23: Faqs
SSI30 Wood Insert FAqS FREQUENTLY ASKED QUESTIONS 1. What is the correct way to start a fire? a) You will need small pieces of dry wood (kindling) and paper. Use only newspaper or paper that has not been coated or had unknown materials glued or applied to it. Never use coated (typically advertising flyers) or colored paper. - Page 24 SSI30 Wood Insert FAqS 8. What is draft? Draft is the ability of the chimney to exhaust by-products produced during the normal combustion process. 9. What can cause a poor draft? The most common factors for poor draft are: a. Atmospheric pressure and air supply b.
-
Page 25: Limited Lifetime Warranty Policy
MHSC in the appliance are found to be defective in materials or workmanship, MHSC will, at its option, replace or repair the defective components at no charge to the original owner. MHSC will also pay for reasonable labor costs incurred in replacing or repairing such components for a period of one year from the date of installation.
