- Page 1 T R EL L E B O RG M A R I N E A N D I N F R A S T RU C T U R E SafePilot CAT MAX MANUAL...
- Page 2 MAX. with an extender unit to enhance Wi-Fi coverage. The TRELLEBORG MARINE SYSTEMS SafePilot systems are designed as a secondary navigational aid and do not relieve the user (pilot, captain, navigator, etc.) of their professional responsibility and navigational skills. Correct use, knowledge, and understanding of the performance and limitations of the SafePilot systems are the sole and only responsibility of the user.
-
Page 3: Table Of Contents
Contents SafePilot CAT MAX What’s in the box Technical specifications System overview Setup Operation Modes Position and Heading Quality Lights guide Charging and Auto Power Off Firmware Update Maintenance Dynamic Under Keel Clearance - DUKC Common Errors and Trouble Shooting... -
Page 4: What's In The Box
What’s in the box THE CAT MAX SYSTEM CONSIST OF: 1 pc. CAT MAX Position Unit ....A 1 pc. CAT MAX Heading Unit ... . . B 1 pc. -
Page 6: Technical Specifications
Rate of Turn Accuracy: 0.1°/min Number of clients: 8 DGNSS CORRECTIONS Security: WPA2 SafePilot CAT MAX can receive DGNSS Corrections from either UHF or over Wi-Fi using NTRIP . The POWER specifications of the two are: Battery: > 18 hours of operation Quick charge (<3 hour) -
Page 7: System Overview

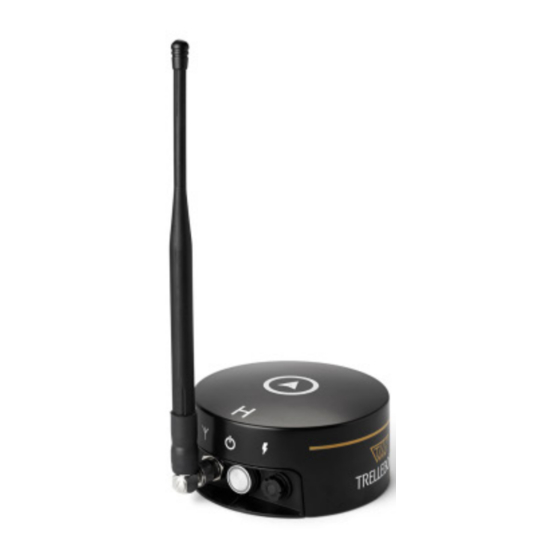

CAT MAX POS provides position, speed, and port or in the vicinity. Trelleborg can provide the course information. It receives corrections from equipment for this kind of reference station, or an a global navigation satellite system (GNSS) and existing one can be used. - Page 8 CAT MAX HDT Internet corrections provides heading and rate of turn. The heading is computed based on the GNSS If corrections are provided via the internet, a corrections transmitted from the CAT MAX POS, SafePilot server is typically used to access a and the rate of turn is based on the change in local reference station installed within the port.
-
Page 9: Setup
Setup When paired, the two CAT MAX units should be placed outside with a clear sky view. Obstructions could cause the CAT MAX to be less accurate or even wrong because the measurements would be based on fewer satellite trackings. To make sure to get the best measurements, the following conditions must be taken into consideration: The recommended baseline between the two Make sure the CAT MAX has at least a 3m... - Page 10 Very good location, as the area around the CAT MAX unit Even though it may seem like a good spot for the CAT MAX, is clear and free of obstacles it’s actually not ideal because the antennas block a large portion of the sky and may cause interference by emitting high power.
- Page 11 Mounting When the CAT MAX is fitted to the brackets, the The CAT MAX has very strong magnets on the combined magnetic field makes the magnets stick bottom, securely attaching it to any metal surface. even more. Because of this, it is recommended If no suitable flat horizontal surface is found where that the brackets be used even though the units the units can be placed, the CAT MAX includes...
- Page 12 Connect to pilot Plug The CAT MAX HDT The CAT EXTENDER as well can be connected to unit can be connected to the the Pilot Plug. If using the CAT EXTENDER this way, pilot plug, if a suitable location for neither the Cat Max POS nor the HDT unit can be found.
-
Page 13: Operation Modes
Operation Modes The CAT MAX system has four different modes, which can be used depending on conditions and situations requiring its function. The different ways of usage will be rewiewed in the following: 1. Using CAT MAX as Pilot Plug Repeater In the simplest use case, the CAT MAX can act To use the device in mode 1, please follow the as a Pilot Plug Repeater. - Page 14 2. Using CAT MAX as Pilot Plug Repeater with external GNSS Receiver The CAT MAX units will, in this mode, function as Connect the HDT unit to the pilot plug using a pair. One will operate as the heading unit (HDT), the supplied cable.
- Page 15 3. Using CAT MAX as a stand-alone system In the 3rd mode, the CAT MAX functions as a have paired. Connect the iPad to the fully independent system, not dependent on the “CAT MAX (xxxxxxxx)” network using password ship’s instrumentation. “86912255”...
- Page 16 4. Using CAT MAX as a stand-alone system with HDT and extended Wi-Fi Range In Mode 4, the CAT EXTENDER will be used Connect the CAT EXTENDER to the Pilot Plug alongside the CAT MAX HDT and POS units. The using the supplied cable.
-
Page 17: Position And Heading Quality
Position and heading quality The Device Status window in the SafePilot software provides valuable information about the quality of position, speed, and heading computations. To access it, tap the quality indicator on the left side of the top bar. The information from the different units is shown in separate windows. To switch between these, tap either CAT MAX POSITION CAT MAX HEADING or CAT EXTENDER in the bottom bar of the Device Status window The values displayed in these windows indicate whether the units are placed appropriately or should be... - Page 18 General Guidelines for the CAT MAX No Solution: No heading is computed. HEADING Unit Most likely because the HDT unit does not receive any corrections from the position For the HDT unit to function optimally, unit it should have access to more than 15 satellites.
-
Page 19: Lights Guide
Lights Guide CAT MAX HEADING UNIT (HDT): Steady Blue HDT/AIS position OK Slow Flashing Blue No HDT/AIS position Steady Red Fully Charged Fast Flashing Red Low Battery Slow Flashing Red Charging Simultaneous Flashing Green CAT MAX HDT - CAT MAX POS Paired CAT MAX POSITION UNIT (POS): Steady Purple... -
Page 20: Charging And Auto Power Off
Firmware Update It is recommended that your CAT MAX units Tap on the new firmware version, and the always be updated with the latest firmware. When device will start updating an update is available, it will be displayed in the GPS Status view window, and the version currently installed will be marked with blue After the update is completed, the new... - Page 21 Charging and Auto Power off To offer high flexibility, the SafePilot CAT MAX features two charging options: via cable or with a wireless charge pad. The EXTENDER unit can only be charged using a cable. Wireless Charging Cable Charging When using wireless charging, the CAT MAX unit...
- Page 22 Auto power off It is possible to enable/disable the feature, as required, through SafePilot software. Either of the CAT MAX Units will turn off automatically under certain conditions. If the following conditions are met, the unit will turn off. This will also occur when the devices are connected to a Pilot Plug or charger.
-
Page 23: Maintenance
Maintenance To ensure the CAT MAX remains in great Ensure the safety strap is intact and not condition, please keep the following in mind: damaged. It should be replaced if it shows any signs of wear and tear. Always use the safety strap when fitting the CAT MAX on the Keep the CAT MAX clean and dry while stored. -
Page 24: Dynamic Under Keel Clearance - Dukc
Dynamic Under-Keel Clearance - DUKC If needed, the CAT MAX system can provide The IMU inside the CAT MAX HDT unit measures measurements for calculating the under-keel roll and pitch, while the CAT MAX POS unit clearance. The DUCK option in the SafePilot provides height information. -
Page 25: Common Errors And Trouble Shooting
CAT MAX units in the recording. This is valuable information that will ensure that proper support is given GET IN TOUCH LEARN MORE Technical support | support@safepilot.eu ABOUT Website | trelleborg.com/marineandinfrastructure SAFEPILOT Sales | toc.aar.sales@trelleborg.com... - Page 26 Trelleborg is a world leader in engineered polymer solutions that seal, damp and protect critical applications in demanding environments. Its innovative solutions accelerate performance for customers in a sustainable way. WWW.TRELLEBORG.COM/MARINEANDINFRASTRUCTURE LinkedIn: Linkedin.com/company/trelleborg-marine-and-infrastructure YouTube: Youtube.com/c/TrelleborgMarineInfrastructure Facebook: TrelleborgMarineandInfrastructure Twitter: @TrelleborgMI Trelleborg Marine and Infrastructure...
