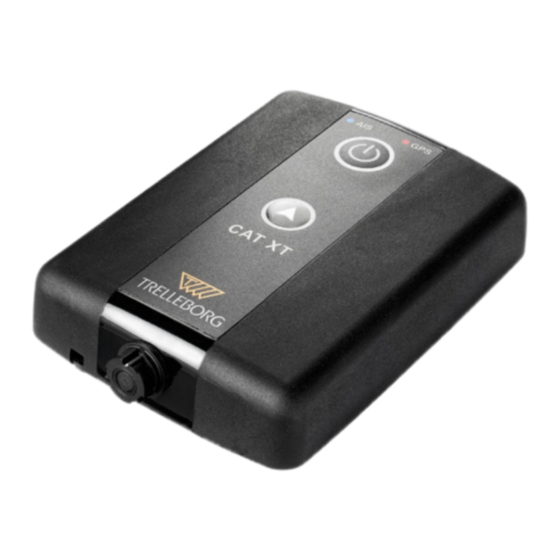

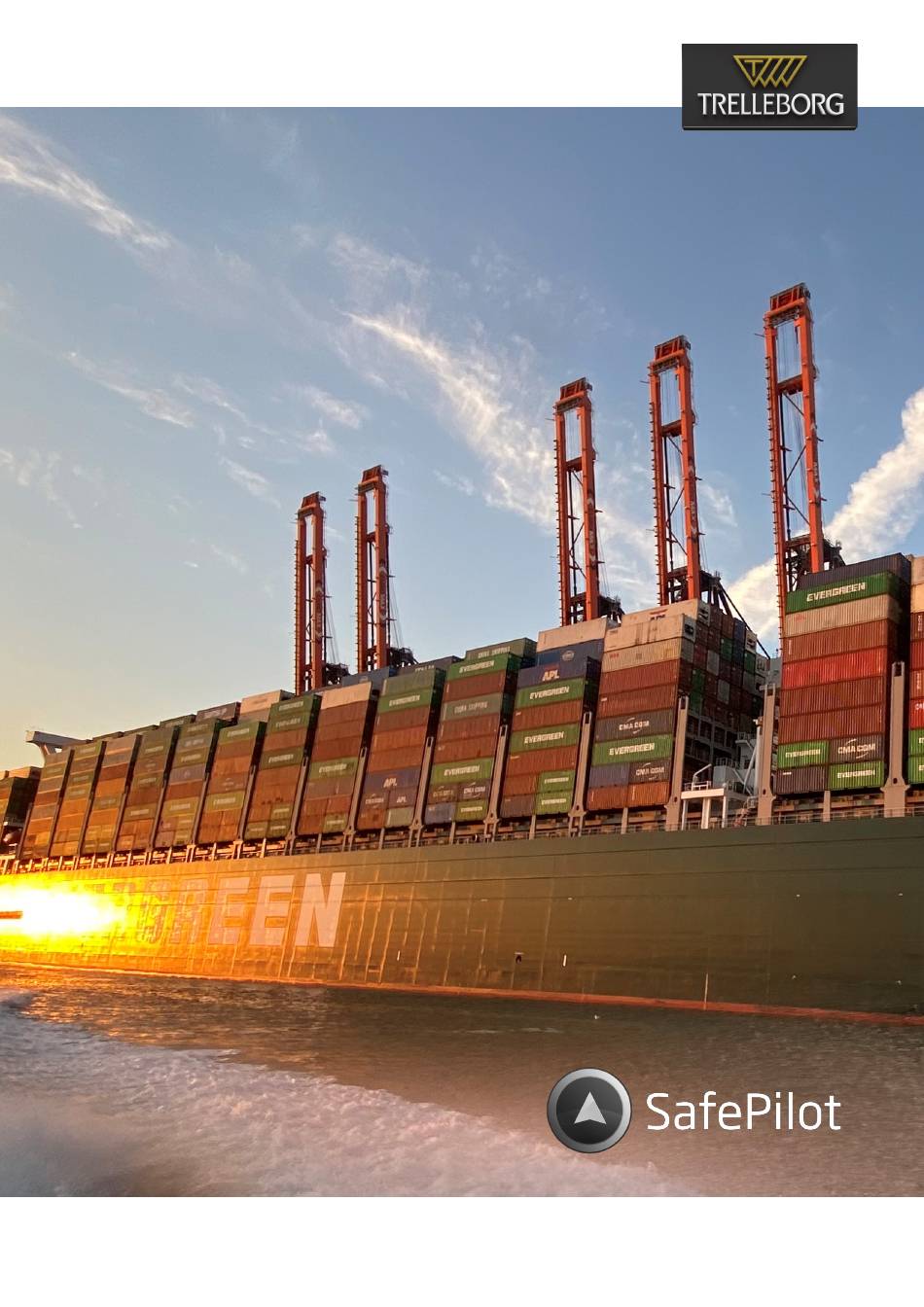

- Page 1 T R EL L E B O RG M A R I N E A N D I N F R A S T RU C T U R E SafePilot CAT XT MANUAL...
- Page 2 Introduction To fully utilize the CAT XT v5 navigation system and all its features safely and easily, please read this manual carefully. The CAT XT v5 facilitates a wireless connection utilizes a Satellite-Based Augmentation System between the AIS pilot plug and a portable (SBAS) used for Differential Global Positioning piloting display.
-
Page 3: Table Of Contents
Contents SafePilot CAT XT What’s in the box Technical specifications System overview Setup Operation Modes Position Quality Lights Guide Charging and Auto Power off Firmware Update Maintenance Common Errors and Trouble Shooting Assessories and dditional purchases... -
Page 4: What's In The Box
What’s in the box 1 pcs. CAT XT v5 ......A 1 pc. Y-cable with USB-C . -
Page 5: Technical Specifications
Technical specifications CAT XT v.5: Wi-Fi PILOT PLUG INTERFACE Client for CAT XT Access point: IEEE 802.11 b/g/n Automatically polarity correction with single band Automatically Rx/Tx correction Access Point: IEEE 802.11 b/g/n with single band Simultaneous pilot plug Connection/Charge Number of clients: 8 Heading Accuracy: 0.1 degrees Security: WPA2 Rate of Turn Accuracy: 0.1°/min. -
Page 6: System Overview
CAT XT GPS is possible due to the corrections The TRELLEBORG MARINE SYSTEMS SafePilot systems are designed as a secondary navigational aid and do not relieve the user (pilot, captain, navigator, etc.) of their professional responsibility and navigational skills. Correct use, knowledge, and understanding of the performance and limitations of the SafePilot systems are the sole and only responsibility of the user. -
Page 7: Setup
Setup To fully utilize the CAT XT navigation system and all its features, finding a proper location for the CAT XT GPS unit is of utmost importance. Due to the layout and the extensive amount of equipment found on many vessels, this can sometimes be challenging. To prevent inaccurate readings caused by poor signals, it is essential always to follow the guidelines listed below: The CAT XT GPS must have a clear view of the sky, Placing the CAT XT GPS directly on a metal floor... - Page 8 In the pictures above, a significant portion of the sky is obstructed by the vertical wall and the wheelhouse adjacent to the unit. Moreover, the wall and wheelhouse may cause multipath interference. Due to the proximity of numerous antennas, this location is not suitable for the CAT XT GPS.
- Page 9 CAT XT AIS, connected to the pilot plug and placed on a horizontal surface.
-
Page 10: Operation Modes
Operation Modes The CAT XT v5 have two different operational modes, which can be used depending on conditions and situations requiring their function. The different ways of usage will be rewiewed in the following section: 1. Using CAT XT as Pilot Plug Repeater To use the system in mode 1, please follow the steps below: In the simplest use case, the CAT XT will act... - Page 11 2. Using CAT XT as a stand-alone system Connect the CAT XT AIS to the pilot plug with the In this mode, two CAT XT devices will work as a pair, with the AIS unit as a Pilot plug repeater and the GPS supplied cable unit placed outside on the bridge wing.
-
Page 12: Position Quality
Position Quality The Device Status window in the SafePilot software provides valuable information about the quality of position, speed, and heading computations. To access it, tap the quality indicator on the left side of the top bar. The information from the different units is shown in separate windows. To switch between these, tap either CAT XT AIS or CAT XT GPS in the bottom bar of the Device Status window. -
Page 13: Lights Guide
Lights Guide CAT XT: Steady Purple Position OK Fast Flashing Purple Not Connected to XT access point Slow Flashing Purple No GPS position Steady Red Fully Charged Fast Flashing Red Low Battery Slow Flashing Red Charging Simultaneous Flashing Green Units Paired Steady Blue AIS data OK Slow Flashing Blue... -
Page 14: Charging And Auto Power Off
Charging and Auto Power off To offer high flexibility, the CAT XT features two charging options: via cable or with a wireless charge pad. Cable Charging Wireless Charging The CAT XT flashes red when the charging cable is Place the CAT XT centred on a wireless charge pad connected, indicating that charging is in progress. -
Page 15: Firmware Update
Firmware Update It is recommended that CAT XT devices always be Tap on the new firmware version, and the device updated to the latest firmware version will start updating When an update is available, it will be displayed in the GPS Status view window, and the version currently installed will be marked blue. -
Page 16: Maintenance
Maintenance To ensure the CAT XT remains in great condition, please keep the following in mind: Keep the CAT XT units clean and dry while stored. The battery level should be maintained at 50-60% if the device is not used for an extended period of time All cables need regular inspection, and the connectors must be checked to ensure they are clean... -
Page 17: Common Errors And Trouble Shooting
COMMON ERRORS & TROUBLESHOOTING No Wi-Fi connection to iPad: No position is shown: Do not place the iPad on a metal surface, as Confirm that the CAT XT GPS is connected to the this may affect its ability to connect to WiFi. CAT XT AIS. -
Page 18: Assessories And Dditional Purchases
Assessories and additional purchases SafePilot Software The SafePilot is a user-friendly software available as an app for iPad and Apple Watch. It handles key tasks such as navigation data, planning functions, route and arrival times, recording, chart handling, predictions, and history. Additionally, it offers specialized functions for docking and alignment, lock operations, weather data, and AUKC, among others. - Page 19 To learn more about our products and SafePilot, LEARN MORE or to purchase the software, please feel free to ABOUT contact Trelleborg Marine & Infrastructure or visit our website for additional information. SAFEPILOT GET IN TOUCH Technical support | support@safepilot.eu...
