Summary of Contents for Franke Atlas Neo TA9700

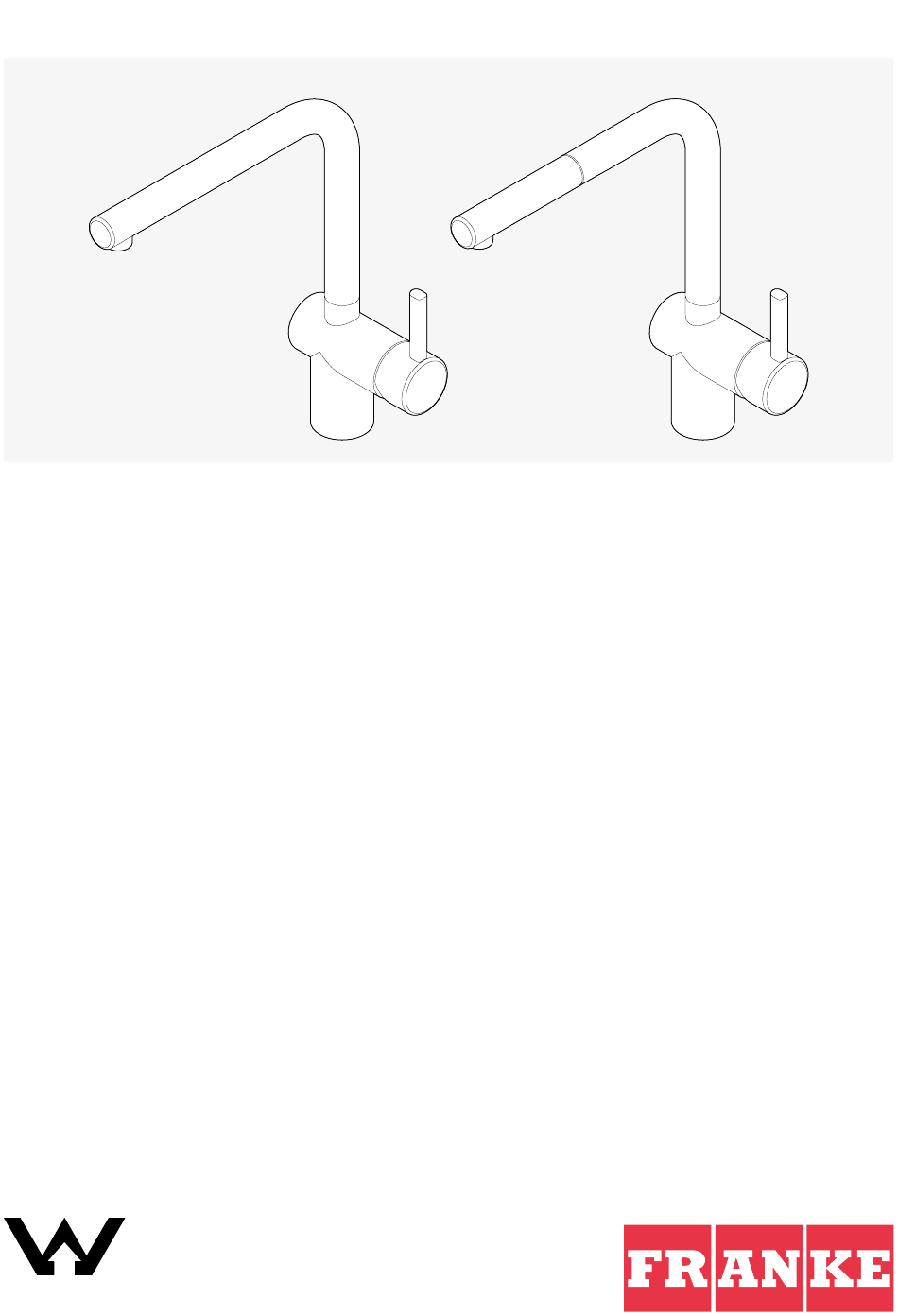

- Page 1 Atlas Neo TA9700 TA9700BS TA9700GM TA9701 TA9701BS TA9701GM Installation and service manual Kitchen Faucet AS/NZS 3718 WM-022184...
- Page 3 Tap Atlas Neo Swivel Side HP Tap Atlas Neo Nozzle Side HP 180˚...
- Page 4 ø25 ø45 50 max M34x1.5 ø25 ø45 50 max M34x1.5...
- Page 5 ø35 mm 7 Nm...
- Page 6 R max ≥ 50mm 23 mm...
- Page 7 400 g R max ≥ 50mm 23 mm 60-70 mm...
- Page 9 30 mm 2,5 mm franke.com...
- Page 10 Periodic checks X Check connection and shower hoses periodically for the following: – Watertightness – Corrosion – Mechanical damage X Use original spare parts only. X Replace damp or dripping hoses. X Replace hoses with rusty or oxidized surfaces. X Replace hoses that show signs of mechanical damage. X Flush all pipes thoroughly before installation.
- Page 11 Tap Atlas Neo Swivel Side HP...
- Page 12 Tap Atlas Neo Nozzle side HP...
-
Page 13: Express Warranty
10 years part only warranty on the cartridge (Warranty Period). Express Warranty Subject to the terms set out in this document, Franke Australia warrants to Customers that the Product will be free from defects in materials and workmanship during the Warranty Period. - Page 14 – abuse, misuse, negligence, willful damage neglect or vandalism; – corrosion from environmental conditions or chemical treatments; – fire, accident or theft; – damage caused while the Product is being transported (except by Franke Australia); – external sources, including but not limited to blown fuses, power failure, faulty installation;...
- Page 15 Subject to the following terms, Franke Australia will provide the Remedy to the Customer at its cost: X Franke Australia is not responsible for any associated or ancillary costs that you incur as a result of replacement or repair of your Product unless Franke Australia has given its prior written approval.
- Page 16 Australia Franke Australia Dandenong South VIC 3175 Phone: +61 3 9700 9100 New Zealand Franke Australia Dandenong South VIC 3175 Phone: +64 9 964 0400 franke.com...
