REVENTON HC3S User Manual

3 – step controller with room
thermostat HC3S
User guide
Welcome
Thank you for buying the product! Your new device will
provide years of reliable service. Using this 3 – step
controller with room thermostat HC3S will provide more
uniform comfort in your home through the seasons. Please
read this manual for complete instructions on installing
and operating your controller. If you require further
assistance, please feel free to contact directly with
Reventon Group Sp. z o.o.
In the box you will find
- 3 – step controller with room thermostat HC3S
- user guide
- jumper
- screws (4 pieces)
Service
We offer the warranty of 24 months from the sales day.
Please become acquainted with the Warranty Terms on the
website http://www.reventongroup.eu/en/complaints.
Technical data
Type of temperature sensor: gas membrane
Temperature range: 10 - 30°C
Accurany: ± 1°C
Power supply: 220 ~ 240 V / 50 ~ 60 Hz
Inductive current load: 3 A
Shell material: ABS (fireproof)
Dimensions: 130 x 85 x 40 mm
Ambient temperature: t = -10 - 60°C, ϕ < 85%
Degree of protection: IP 30
About device

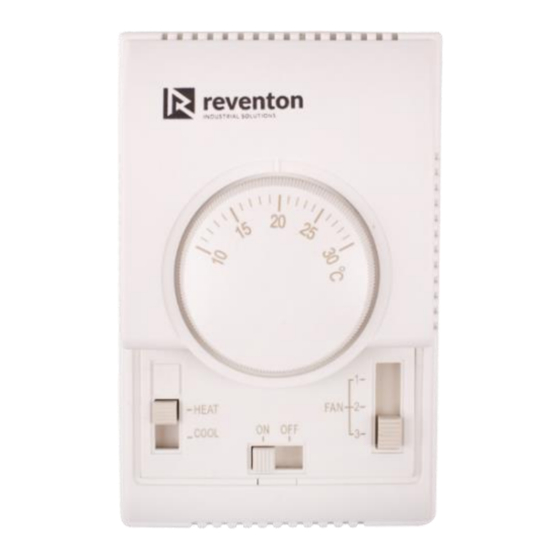

3 – step controller with room thermostat HC3S is used
to control operation of 3 – stage fan motor (i. e. changing
its rotation speed). Device has two operation mode.
In continuous mode controller turns on / off fan according
to the position ON / OFF switch. In thermostatic mode
device enables in easily and precise way to obtain and
sustain required temperature in the room. It turns on / off
controller, respectively, depending on the temperature
difference between real and set by knob temperature.
Simple design guarantees reliability of the device.
Features of the controller
•
Modern design
•
Simple operation
•
Precise comfort control keeps temperature within
± 1°C of the level you set
•
3-speed motor control
•
Cooperation with heating and cooling devices
•
Two operation mode – continuous and thermostatic
•
Reliability
•
Easy installation
Wiring diagram
Installing
It is recommended to install
to the following points:
device according
