REVENTON HC Quick Start Manual

Manual room thermostat HC
User Guide
Welcome
Thank you for buying the product! Your new thermostat
will provide years of reliable service. Using this manual
thermostat HC will provide more uniform comfort in your
home through the seasons. Please read this manual
for complete instructions on installing and operating your
thermostat. If you require further assistance, please feel
free to contact directly with Reventon Group Sp. z o.o.
In the box you will find
- manual thermostat HC
- user guide
Service
We offer the warranty of 24 months from the sales day.
Technical data
Type of temperature sensor: gas membrane
Temperature range: 10 - 30°C
Accuracy: ± 1°C
Power supply: 220 ~ 240 V / 50 ~ 60 Hz
Inductive current load: 3 A
Shell material: ABS (fireproof)
Dimensions: 83 x 83 x 38 mm
Ambient temperature: t = - 10 - 60°C, ϕ = 85%
Degree of protection: IP 30

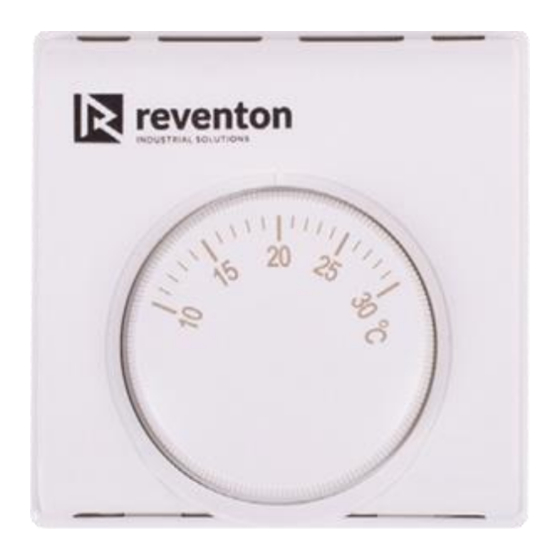

About device
Manual thermostat HC is easily and precise way to contain
required temperature in the room. It turns on / off device,
respectively, depending on the temperature difference
between real and set by knob temperature. Simple design
guarantees reliability of the device.
Features of the thermostat
•
Modern design
•
Simple operation and reliability
•
Precise comfort control keeps temperature within
± 1°C of the level you set
•
Cooperation with heating and cooling devices
•
Easy installation
Wiring diagram
Installing
It is recommended to install
to the following points:
device according
