REVENTON HC-3S Series Technical Documentation Manual

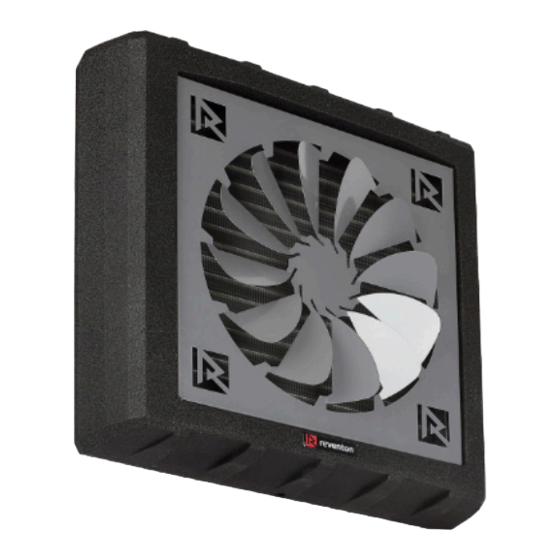

Air water heaters in epp casing
Hide thumbs
Also See for HC-3S Series:
- Technical documentation manual (7 pages) ,
- User manual (2 pages) ,
- Technical documentation manual (40 pages)
Subscribe to Our Youtube Channel
Related Manuals for REVENTON HC-3S Series
Summary of Contents for REVENTON HC-3S Series
- Page 1 Technical documentation AIR WATER HEATERS IN EPP CASING HC-3S SERIES MODELS: HC15-3S HC45-3S HC20-3S HC50-3S HC30-3S HC70-3S HC35-3S HC80-3S...
-
Page 2: Table Of Contents
HC15-3S This documentation was developed by the company Reventon Group Sp. z o. o. – all rights reserved. The company Reventon Group Sp. z o. o. reserves the rights to make changes in the technical documentation. 1.2 STORAGE AND TRANSPORT The product must be storaged and transported on an appropriate pallet, in ambient temperature ranging from -30°C to 60°C and relative humidity ≤... -
Page 3: Protection Degree Ip
2.4 TECHNICAL DATA HC 15-3S HC 20-3S HC 30-3S HC 35-3S HC 45-3S HC 50-3S HC 70-3S HC 80-3S TECHNICAL DATA WHHC15- WHHC20- WHHC30- WHHC35- WHHC45- WHHC50- WHHC70- WHHC80- Product code 3S-2402 3S-1759 3S-1760 3S-1761 3S-1762 3S-2006 3S-1764 3S-1956 49.8 III STAGE 17.2 21.4... - Page 4 HC 45-3S III stage 2500 [m³/h] Parameters Supply/return water 80/60 70/50 50/40 40/30 temperature [ºC] Dry bulb air inlet temperature [ºC] 36.2 33.0 29.9 26.9 24.0 30.3 27.2 24.2 21.2 18.3 23.1 20.1 17.2 14.3 11.5 17.4 14.4 11.6 Heating capacity [kW] Dry bulb air outlet 40.3 42.4...
- Page 5 COOLING PARAMETERS Condensation may appear on HC-3S series units used as cooling equipment. For this reason, we recommend using heaters with a drip tray (product code DTFHC15-2428/DTFWHHC2045/ DTFWHHC5080). Installation of HC-3S series unit together with the drip tray is only possible for wall mounting ( see section WALL MOUNTING).
-
Page 6: Assembly
3. ASSEMBLY 3.3 CELLING MOUNTING The example below shows the ceiling mounting with the Z-type suspension 3.1 GENERAL PRINCIPLES brackets (product code SB-2029). The heater should be assembled and disassembled by people experienced in mounting of such devices and - if local law requires it with appropriate qualifications. -
Page 7: Connection To Electrical Installation
(depending on the type of central heating installation and the type of heat source). Using of control dedicated to AIR WATER HEATER HC-3S SERIES gives vast possibilities of adjusting the efficiency of the unit in different degree of Before connecting the heater to an electrical installation, the leakage automation, depending on the needs. -
Page 8: Wiring Diagrams
7. WIRING DIAGRAMS LEGEND 1 – voltage supply 230 V/50 Hz* 2 – maintanance ON/OFF switch 3 – air water heater HC-3S 5 – valve with ON/OFF actuator 7 – manual room thermostat HC * the electrical circuit should include all safety element required by the law white white brown... - Page 9 LEGEND 1 – voltage supply 230 V/50 Hz* 2 – maintanance ON/OFF switch 3 – air water heater HC-3S 4 – 3-step controller with room thermostat HC3S 5 – valve with ON/OFF actuator * the electrical circuit should include all safety element required by the law white white brown...
- Page 10 LEGEND 1 – voltage supply 230 V/50 Hz* 2 – maintanance ON/OFF switch 3 – air water heater HC-3S 5 – valve with ON/OFF actuator – programmable controller HMI BMS – external temperature sensor * the electrical circuit should include all safety element required by the law white white brown...
-
Page 11: Warranty Terms
IX. The guarantor may decide to bring the defective device or its component to the as traces of self repairing (beyond the guarantor service) or alterations cause, service of Reventon Group Sp. z o. o. In such case the transport of the item is organised the warranty become invalid. - Page 12 ReventonGroup Sp. z o.o., 556 WyzwoleniaStreet, 43-340Kozy, Poland, www.reventongroup.eu...
