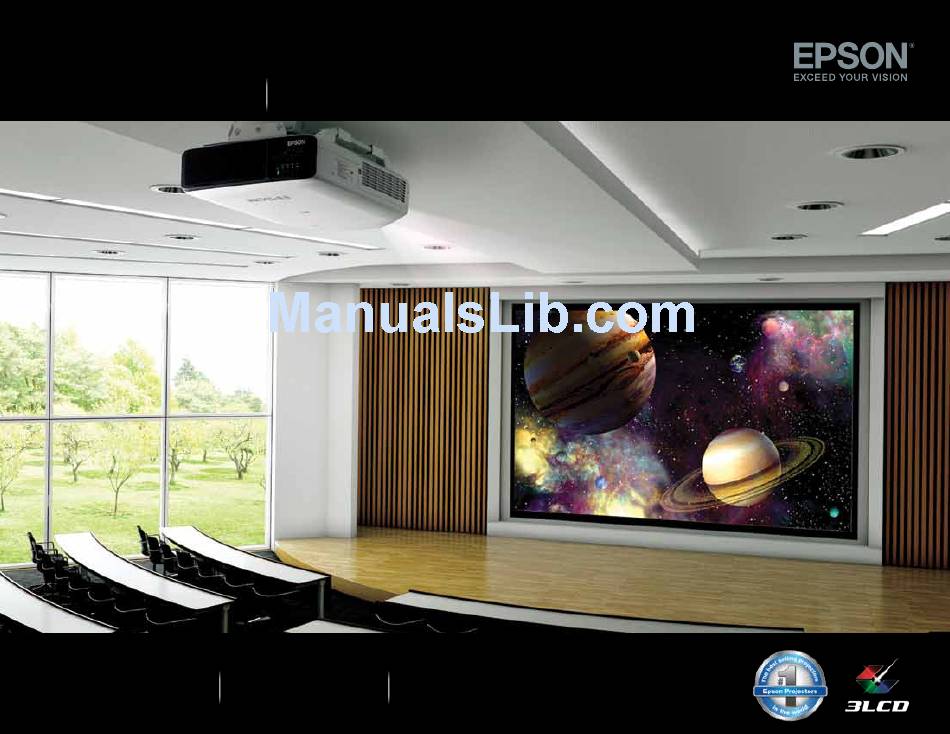

- Page 1 PowerLite Professional Series ® PowerLite Pro Z8000WUNL PowerLite Pro Z8050WNL Quality and Reliability Precision Control Low Cost of Ownership...
- Page 2 Epson QRCC Commitment www.epson.com...
- Page 3 With a wide array of innovative features, the Epson PowerLite Pro Z projectors ensure amazing presentations in virtually any setting. In fact, with the Epson PowerLite Pro Z Series, Epson takes technology one step further, offering an ultra-bright, WUXGA performer. This model, the PowerLite Pro Z8000WUNL, represents the perfect high-definition solution when presenting content from widescreen computers or high-definition devices.
- Page 4 Protect your investment — recommended 10,000-hour filter cleaning schedule and easy, side-access filter • Easy monitor and control capabilities — included Epson monitor software allows for remote monitor • and control of Epson networked projectors Value-added features — Quick Corner for independent image corner control;...
- Page 5 Protect your investment — recommended 10,000-hour filter cleaning schedule and easy, side-access filter • Easy monitor and control capabilities — included Epson monitor software allows for remote monitor and • control of Epson networked projectors Value-added features — Quick Corner for independent image corner control; built-in closed captioning •...
- Page 6 Quality and Reliability 3LCD, 3-chip technology • Ultra high brightness – white and color • Up to 5000:1 contrast ratio • WUXGA resolution (Z8000WUNL) • WXGA resolution (Z8050WNL) • High-grade video chip processor • Dual lamps • Quality and Reliability...
- Page 7 3LCD Technology — for Quality and Color that’s Beyond Amazing 3LCD technology delivers amazing color and detail. Whether it’s big-screen entertainment or a classroom demonstration, 3LCD technology takes video performance to the next level. Delivering legendary image quality, this innovative technology always ensures powerful visual presentations. 3 chips in every projector for full-time, true-to-life color •...
- Page 8 Beyond Hi-Def WUXGA resolution delivers high quality images and crisp, sharp text without any distortion or scaling. The Z8000WUNL can display two independent A4-sized windows side by side at the same time. You can also display HDTV content at its native resolution. WUXGA resolution is ideal for applications like Blu-Ray content, graphic intensive programs, and any application requiring exceptional detail.
-
Page 9: Three-Year Limited Warranty
Powerful and Bright Epson PowerLite Pro Z projectors are powerful and bright. And, they can be ceiling mounted in order to better reach large audiences. With a unique mix innovative features and a smart design, these projectors offer easy installation, operation and monitoring capabilities to dramatically enhance the visual experience of your audience. - Page 10 Dual Lamps With two lamps (330 W each), PowerLite Pro Z Series projectors boast a dual lamp system that eliminates the risk of interruption. If one lamp were to fail, operation would continue, using the other lamp. Each lamp has a long lamp life — up to 3500-hour lamp life in ECO Mode, up to 2500 hours in Normal Mode.
- Page 11 Ideal for Large Meeting Halls Quality and Reliability...
- Page 12 Precision Control Centered lens • Integrated design • Flexible lens choices • Quick Corner • Direct power on/off • Vertical/horizontal lens shift • Powered lens shift, zoom and focus • Innovative cooling system • Precision Control...
- Page 13 Centered Lens Design With its centered lens design, the PowerLite Pro Z Series makes installations easy to plan. Positioning the ceiling mount, screen, and projector can be performed individually and independent of one another. Integrated Design A new, innovative layout and cable cover design conceals the cabling for a pleasing, aesthetic look. Streamlined design with integrated handles simplifies installation Keeps cables neat The terminal inputs on the front have a cover that matches the case design to keep them tucked neatly...
-
Page 14: Standard Lens
Flexible Lens Choices Standard Lens There are six different lens options including a rear-projection lens. Works with both models This allows users to choose the most suitable lens for the environment. Changing the lens is easy with the bayonet style mount. Projection distance of standard WUXGA model 16:10 Screen Size Shortest (Wide) Longest (Tele) - Page 15 Six Optional Bayonet Lenses With a 1.6x standard lens, the PowerLite Pro Series offers increased placement flexibility. For even greater flexibility, Epson offers a total of six lenses with varying ranges including short, wide, and rear, along with mid- to long-throw lenses that allow users to choose the motorized lens most suited for their environment.
- Page 16 Brightness Excels in Large Classrooms Precision Control...
-
Page 17: Horizontal And Vertical Lens Shift
Horizontal and Vertical Lens Shift In addition to added reliability and amazing color performance, Epson’s industry-leading 3LCD technology enables the projector to achieve a wide range of lens shift capabilities. This lens shift technology enables outstanding installation flexibility with an incredible range of + or – 70% on the vertical axis and + or – 20% on the horizontal axis. - Page 18 Quiet, Reliable Liquid Cooling System The PowerLite Pro Z Series projectors can be rotated 90-degrees upward Epson’s innovative system uses liquid to cool the LCD chips directly. or downward with an additional 30-degree tilt operation for off-axis The liquid absorbs the heat and is then cooled by a peltier device, which is positioning flexibility.
- Page 19 Flexible Enough for Off-axis Signage Requirements Precision Control 19...
- Page 20 Precision Control...
-
Page 21: Direct Power On/Off
Epson understands that a presenter’s priority is the audience. A projector should be easy to use, install, configure and maintain. The Epson PowerLite Pro Z Series projectors were designed with that in mind. Direct Power On/Off Control the power to your projector with just the switch on a wall. - Page 22 Low Cost of Ownership Easy maintenance • One-touch filter replacement • One-touch lamp replacement • Monitor control • Content over IP (Z8050WNL only) • Low Cost of Ownership...
-
Page 23: Easy Maintenance
Protect Your Investment — Long-life Electrostatic Air Filter The lamp and filter are accessible from the rear, The PowerLite Pro Z8000WUNL and Z8050WNL filters are designed to protect the optical engine, lamp and electronics from small dust particles that can enter any projector. They have a without removing the main body from the mount. -
Page 24: Easymp Monitor
North Building East Building West Building EasyMP Monitor Monitor and control the status of all Epson networked projectors from a single computer. The included EasyMP Monitor software enables you to configure and operate projectors remotely over your network. You can even send automatic e-mail alerts on projector status, including lamp, temperature, and filter notifications. -
Page 25: Projector Control
ESCVP21 is a set of published and programmable serial codes that allow Use EasyMP Network Projection to send display users to control and monitor Epson projectors via a USB or RS-232 content to any Epson projector that features EasyMP. connection utilizing this ASCII-based protocol. - Page 26 21.0" DVI - D HDMI Component BNC Monitor Out Component Video (BNC) 8.9" Computer S-Video RS - 232c Remote AC Inlet Z8000WUNL Inputs Z8050WNL Front 28.9" DVI - D HDMI Component BNC Monitor Out 8.9" Component Video (BNC) Computer S-Video RS - 232c Remote AC Inlet...
-
Page 27: Compatible Video Formats
Z8000WUNL Signal Charts Z8050WNL Signal Charts Compatible Video Formats Compatible Video Formats Mode Refresh Rate (Hz) Resolution Mode Refresh Rate (Hz) Resolution Mode Refresh Rate (Hz) Resolution Mode Refresh Rate (Hz) Resolution VGA—60 640 × 480 iMAC VGA* 640 × 480 VGA—60 640 ×... -
Page 28: Other Features
Up to 3500 hours (ECO Mode) Three-year projector limited warranty, 90-day limited lamp Projection Method NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / warranty, Epson Road Service Program and Front/rear/ceiling mount PAL60 / SECAM Epson PrivateLine dedicated toll-free support ®... - Page 29 NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / Three-year projector limited warranty, 90-day limited lamp Projection Method PAL60 / SECAM warranty, Epson Road Service Program and Front/rear/ceiling mount SDTV: 480i / 576i / 480p / 576p Epson PrivateLine dedicated toll-free support...
- Page 30 Fine, Quick Corner and EasyMP are registered trademarks, Epson Exceed Your Vision is a registered logomark and Better Products for a Better Future is a trademark of Seiko Epson Corporation. PowerLite and PrivateLine are registered trademarks, and Epson Connection is a service mark of Epson America, Inc. All other product and brand names are trademarks and/or registered...
