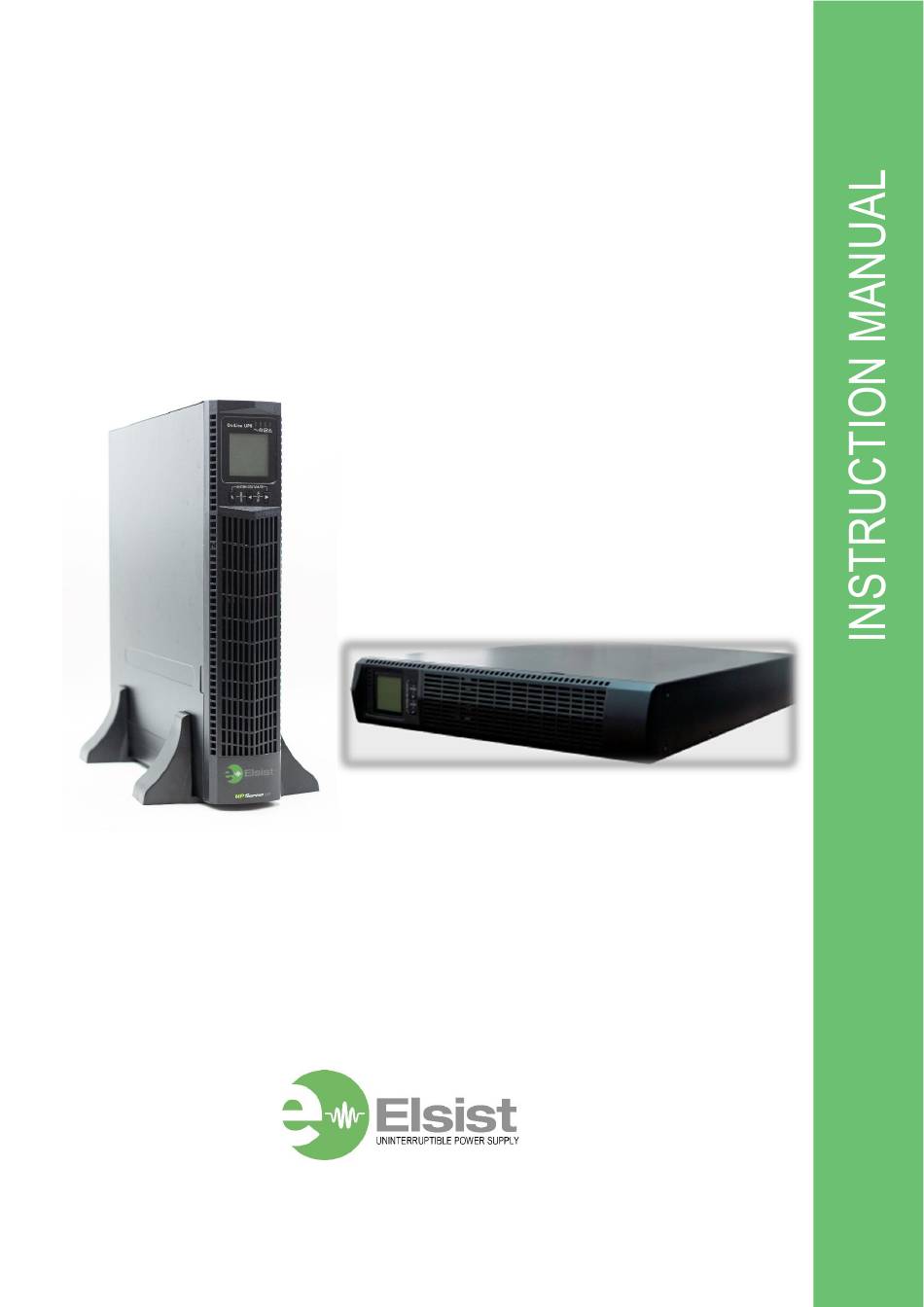

  • Page 1 UPSERVER 2.0 UPSERVER 4.0...
  • Page 2 Publish statement Thank you for purchasing this series UPS. This series UPS is an intelligent, single phase in single phase out, high frequency online UPS designed by our R&D team who is with years of designing experiences on UPS. With excellent electrical performance, perfect intelligent monitoring and network functions, smart appearance, complying with EMC and safety standards, The UPS meets the world’s advanced level.

  • Page 3: Table Of Contents

    UPServer 2.0●4.0 ONLINE DOUBLE CONVERSION SINGLE PHASE UPS Table of Contents Important Safety Warning ......................2 Transportation ........................2 Preparation ........................2 Installation ......................... 2 Operation ........................... 3 Maintenance, service and faults ..................3 Installation and setup ........................4 Unpack checking ....................... 4 Rear panel view .........................

  • Page 4: Important Safety Warning

    UPServer 2.0●4.0 ONLINE DOUBLE CONVERSION SINGLE PHASE UPS 1. Important Safety Warning Important safety instructions – Save these instructions Please comply with all warnings and operating instructions in this manual strictly. Save this manual properly and read carefully the following instructions before installing the unit. Do not operate this unit before reading through all safety information and operating instructions carefully There exists dangerous voltage and high temperature inside the UPS.

  • Page 5: Operation

    UPServer 2.0●4.0 ONLINE DOUBLE CONVERSION SINGLE PHASE UPS 1-4 Operation ⚫ Do not disconnect the mains cable on the UPS system or the building wiring outlet (shockproof socket outlet) during operations since this would cancel the protective earthing of the UPS system and of all connected loads. ⚫...

  • Page 6: Installation And Setup

    UPServer 2.0●4.0 ONLINE DOUBLE CONVERSION SINGLE PHASE UPS 2. Installation and setup NOTE: Before installation, please inspect the unit. Be sure that nothing inside the package is damaged. Please keep the original package in a safe place for future use. 2-1 Unpack checking ⚫...

  • Page 7: Installing The Ups

    UPServer 2.0●4.0 ONLINE DOUBLE CONVERSION SINGLE PHASE UPS 1. Output receptacles(10A) 2. Battery Terminal 3. SNMP intelligent slot (option) 4. Network /Fax/Modem Surge Protection(option) 5. RS-232 communication port 6. AC input receptacle 7. Input circuit breaker 8. EPO(option) 9. USB(option) 2-3 Installing the UPS ⚫...
  • Page 8 UPServer 2.0●4.0 ONLINE DOUBLE CONVERSION SINGLE PHASE UPS Connect red to red, Press the connector tightly together to ensure a proper connection. c) If you are installing EBPS, see the following section, “Connecting the EBP(s),” before continuing with the UPS installation. Figure 6 Connecting the UPS Internal Batteries d) Replace the UPS front cover.
  • Page 9 UPServer 2.0●4.0 ONLINE DOUBLE CONVERSION SINGLE PHASE UPS UPS. Continue to “UPS Start up” ⚫ Connecting the EBP(s) (1) To install the optional EBP(s) for a UPS a) Remove the front cover of each EBP and UPS (see Figure 8). It is the same with the installation of the front cover.

  • Page 10: Rackmount Converted To Tower Installation

    UPServer 2.0●4.0 ONLINE DOUBLE CONVERSION SINGLE PHASE UPS To connect a second EBP, unclip the EBP connector on the first EBP and pull gently to extend the wiring to the EBP connector on the second EBP. Repeat for any additional EBPs.
  • Page 11 UPServer 2.0●4.0 ONLINE DOUBLE CONVERSION SINGLE PHASE UPS ③ If an EBP is needed to be placed in the middle, the assembly of plastic base is similar (Figure 11 ).The difference is that two 1U plastic base extended boards are added in the middle.(as the following shows) （A）...
  • Page 12 UPServer 2.0●4.0 ONLINE DOUBLE CONVERSION SINGLE PHASE UPS ⚫ The installation between UPS and EBPS can be referred to Fig.13 Figure 13 The installation for UPS and battery box Figure 14 Long backup external battery connection a) Install the base, then place the RT UPS on the base one by one as Fig.13 shows. b) The cover installation and cable connection of the UPS and EBPS are the same as RT.

  • Page 13: Ups Start Up And Turn Off

    UPServer 2.0●4.0 ONLINE DOUBLE CONVERSION SINGLE PHASE UPS 2-4 UPS start up and turn off ⚫ Start up operation (1) Turn on the UPS in line mode NOTE Verify that the total equipment ratings do not exceed the UPS capacity to prevent an overload alarm.

  • Page 14: Configuring Battery Setings

    UPServer 2.0●4.0 ONLINE DOUBLE CONVERSION SINGLE PHASE UPS 2-5 Configuring Battery Setings ⚫ Set the UPS for the number of EBPs installed. To ensure maximum battery runtime, configure the UPS for the correct number of EBPs, refer to Table 8 for the appropriate setting of battery numbers and type. Use the up and down scroll keys to select the number of battery strings according to your UPS configuration: All UPS and EBP Cabinets...

  • Page 15: Setup The Ups

    UPServer 2.0●4.0 ONLINE DOUBLE CONVERSION SINGLE PHASE UPS Indicator Status Description The UPS has an active alarm or fault. The UPS is in Bypass mode. The UPS is operating normally on bypass during High Efficiency operation. Yellow The UPS is on Battery mode. Yellow The UPS inverter is operating normally on Oline mode &...

  • Page 16: Step 4: Turn On The Ups

    UPServer 2.0●4.0 ONLINE DOUBLE CONVERSION SINGLE PHASE UPS Step 3: Communication connection Communication port: To allow for unattended UPS shutdown/start-up and status monitoring, connect the communication cable one end to the USB/RS-232 port and the other to the communication port of your PC. With the monitoring software installed, you can schedule UPS shutdown/start-up and monitor UPS status through PC.

  • Page 17: Operations

    UPServer 2.0●4.0 ONLINE DOUBLE CONVERSION SINGLE PHASE UPS 3. Operations 3-1 Button operation Button Function ➢ Turn on the UPS: Press and hold ON button for at least 2 seconds to turn on the UPS. ➢ Choosing different value: When the UPS enters the setting mode, press this button to choose the ...

  • Page 18: Lcd Display

    UPServer 2.0●4.0 ONLINE DOUBLE CONVERSION SINGLE PHASE UPS 3-2 LCD display Part one: Rack display There are 8 interfaces available in the LCD display. Item Interface Description Content Displayed Input voltage Battery voltage Output voltage...
  • Page 19 UPServer 2.0●4.0 ONLINE DOUBLE CONVERSION SINGLE PHASE UPS Load Environment Temperature Firmware Version & UPS model CODE (Operational status and mode) Alarm Code (Warming Message) All alarm codes are present when abnormal behavior(s) occur(s)
  • Page 20 UPServer 2.0●4.0 ONLINE DOUBLE CONVERSION SINGLE PHASE UPS Part two: Tower display ● After the UPS turn ON, continue to press the function key for 10 seconds , the LCD screen begin to rotate. ● LCD display with rotation function and after rotating display information content is constant ,the LCD display information only display the direction and pattern of change.
  • Page 21 UPServer 2.0●4.0 ONLINE DOUBLE CONVERSION SINGLE PHASE UPS Load Environment Temperature Firmware Version & UPS model CODE (Operational status and mode) Alarm Code (Warming Message) All alarm codes are present when abnormal behavior(s) occur(s)

  • Page 22: Ups Setting

    UPServer 2.0●4.0 ONLINE DOUBLE CONVERSION SINGLE PHASE UPS 3-3 UPS setting The UPS has setting functions. This user settings can be done under any kind of UPS working mode. The setting will take effect under certain condition. Below table describes how to set the UPS.
  • Page 23 UPServer 2.0●4.0 ONLINE DOUBLE CONVERSION SINGLE PHASE UPS Frequency setting Press Enter button  to change the setting (50 or 60Hz). Press UP button ▲ to select the previous setting. Press DOWN button ▼ to select the next setting. EOD point voltage setting (one power-off set point) Press the selection button P to select different setting values...
  • Page 24 UPServer 2.0●4.0 ONLINE DOUBLE CONVERSION SINGLE PHASE UPS Bypass voltage lower limit setting Press Enter button  to change the setting(The bypass voltage lower limit range is 176-220Vac). Press UP button ▲ to select the previous setting. Press DOWN button ▼ to select the next setting.

  • Page 25: Operating Mode Description

    UPServer 2.0●4.0 ONLINE DOUBLE CONVERSION SINGLE PHASE UPS 3-4 Operating Mode Description Indicator Mode Description The inverter green LED is on. When input AC mains is in line with the working Line Mode conditions, UPS will work in line mode,charge the battery and protect the load.

  • Page 26: Operational Status And Mode(S)

    UPServer 2.0●4.0 ONLINE DOUBLE CONVERSION SINGLE PHASE UPS 3-5 Operational Status and Mode(s) item Content Displayed Standby Mode No Output Bypass Mode Utility Mode Battery Mode Battery Self-diagnostics Inverter is starting up ECO Mode EPO Mode Maintenance Bypass Mode Fault Mode Mode Generator 3-6 Alarm or Fault reference code...

  • Page 27: Troubleshooting

    UPServer 2.0●4.0 ONLINE DOUBLE CONVERSION SINGLE PHASE UPS Input current limit Once per second Fault LED blinking Bypass over current Once per second BPS LED blinking Overload Once per second INV or BPS LED blinking No battery Once per second Battery LED blinking Battery under voltage Once per second...

  • Page 28: Storage And Maintenance

    UPServer 2.0●4.0 ONLINE DOUBLE CONVERSION SINGLE PHASE UPS Alarm code is shown as “32” and UPS is overload Remove excess loads from INV or BYPASS led blinking. UPS output. shut down Check output wiring and if Alarm code is shown as “29” and automatically because short connected devices are in FAULT led light.

  • Page 29: Options

    UPServer 2.0●4.0 ONLINE DOUBLE CONVERSION SINGLE PHASE UPS 6. Options SNMP card: internal SNMP (options) ◆Loosen the 2 torquescrews (on each side of thecard). ◆Carefully insert the SNMP card and lock the screws The slot called SNMP supports the MEGAtec protocol.We advise that Net AgentII-3 port is also a tool to remotely monitorand manage any UPS system NetAgentII-3Ports supports the Modem Dial-in(PPP) function to enable the remote control via the internet when the network is unavailable.
  • Page 30 UPServer 2.0●4.0 ONLINE DOUBLE CONVERSION SINGLE PHASE UPS Relaycard electrical parameter Type AC:120V (Max Switched Voltage) AC:120V DC:5~12V DC:24V Relaycardcontact AC:1A (Max Switched Current) AC:1A DC:1A DC:1A Emergency Power-off (EPO) (options) EPO is used to shut down the UPS from a distance. This feature can be used for shutting down the load and the UPS by thermal relay, for instance in the event of room overtemperature.

  • Page 31: Specification

    UPServer 2.0●4.0 ONLINE DOUBLE CONVERSION SINGLE PHASE UPS 7. Specification MODEL UPServer2.0 UPServer4.0 PHASE Single phase with ground Capacity (VA/Watts) 2000VA /1350W 4000VA / 2700W INPUT Nominal voltage 208/220/230/240VAC 176Vac±5% @100%-50% load; Low line 110Vac±5% @50%-0% load; transfer 186Vac±5% @100%-50% load; Low line 120Vac±5% @50%-0% load;;...
  • Page 32 UPServer 2.0●4.0 ONLINE DOUBLE CONVERSION SINGLE PHASE UPS BATTERY Battery Type 12V/9Ah Numbers Backup time Long run unit depends on the capacity of external batteries Typical recharge time 4 hours recover to 90% capacity (Typical) (standard modle) Charging voltage 27.4V ±1% 54.8V ±1% 1/2A 1/2A...

  • Page 33: Warranty

    Before contacting your dealer or authorized service network, we recommend that you read the operating and maintenance manual carefully. With this warranty, NAICON warrants the product to be free from defective in materials or workmanship for 2 years, as of the original delivery date.
  • Page 34 Naicon srl Via il Caravaggio, 25 Trecella I 20060 Pozzuolo Martesana - Milano (Italy) Tel. +39 02 95.003.1 Fax +39 02 95.003.313 www.naicon.com e-mail: naicon@naicon.com...
