Summary of Contents for iTechworld PS800
- Page 1 USER GUIDE PS800 PORTABLE POWER STATION...
-
Page 2: Table Of Contents
CONTENTS Product Overview Button Functions LCD Features Fault Resolution UPS Mode UPS Connections Solar Panel Charging AC 240V/Wall Plug Charging Car/Vehicle Charging General Specifications Battery Specifications Safety Precautions Contact Us Back page... -
Page 3: Product Overview

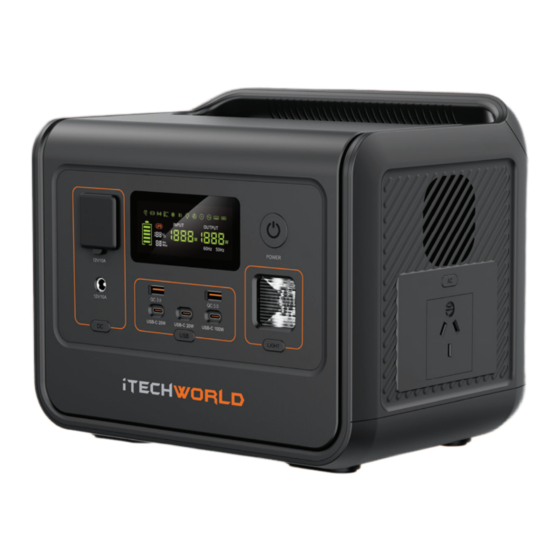

PRODUCT OVERVIEW XT60 to 50A Anderson AC Charger Car Charger User Manual Cable Storage MAIN POWER CONTROL AIR INTAKE/OUTLET LIGHT CONTROL AC 240V OUTPUT BUTTON USB CONTROL XT-60 INPUT PORT DC CONTROL AC 240V INPUT PORT LCD DISPLAY... -
Page 4: Button Functions
BUTTON FUNCTIONS POWER CONTROL BUTTON: This is the master power button, a long press to turn on and a long press to turn off the unit (hold the button until the screen turns on/off). When not in use, please turn the unit off. USB CONTROL BUTTON: Make sure the power station is on before pressing the USB control button. -
Page 5: Lcd Screen Display
AIR INTAKE/OUTLET (BUILT-IN COOLING FAN): The PS800 utilises an internal cooling fan to ensure it operates within the appropriate temperature range. When the PS800 experiences a high output/input load, it automatically turns on the fan. The fan may turn on intermittently to keep the internal temperatures within the operating range. -
Page 6: Overload Protection
Use the included wall socket to get 400W fast charging, which can fully charge the PS800 from 0 to 100% in 1.5 hours. The PS800 should be charged directly by the wall socket, please do not use extension cords. OVERLOAD PROTECTION:... -
Page 7: Lcd Features
LCD FEATURES: AC CHARGING STATUS USB OUTPUT STATUS XT60 INPUT STATUS USB-C OUTPUT STATUS HIGH/LOW TEMPERATURE BATTERY LEVEL INDICATOR FAN STATUS REMAINING DISCHARGE TIME LED LIGHT STATUS BATTERY PERCENTAGE INDICATOR CIGARETTE LIGHTER OUTPUT TOTAL INPUT POWER DC OUTPUT STATUS TOTAL OUTPUT POWER AC OUTPUT STATUS... -
Page 8: Fault Resolution
Charging unavailable UPS MODE The PS800 has a bypass function, which means power will not pass through the battery; it will be taken directly from the AC output. In this mode, the power source is the power grid, when there is an emergency power outage, the power source will switch to the battery within 1Oms and protect the connected appliance. -
Page 9: Ups Connections
UPS CONNECTIONS: As shown in the figure below, connect the PS800 between the wall socket and the electrical appliances, ensuring the power of the PS800 is ON. When you turn on the electrical appliances, power will be taken directly from the grid. -
Page 10: Solar Panel Charging
SOLAR PANEL CHARGING: Do not charge the PS800 via a solar panel that has a voltage exceeding 50V. Supports 200W max solar input (solar panels not included), the charging time depends on the solar panel input. To ensure proper operation, please verify that there is no regulator in the line. -
Page 11: General Specifications
GENERAL SPECIFICATIONS Model name PS800 Dimensions 276*209*230mm Weight 6.5Kg Capacity 512Wh XT60 Input 11.5V-50V 200W Max AC output 50/60Hz (frequency switch available), rated at 800W Pure Sine Wave. Built in overload and short circuit protection. USB output 2 x 5V/2.4A... -
Page 12: Safety Precautions
SAFETY PRECAUTIONS For safe operation and optimal performance, the PS800 Portable Power Station must be operated correctly. Please carefully read, under stand, and follow all instructions and guidelines in this user guide. Failure to follow these instructions may result in damage to the unit, property, death, or serious injury. -
Page 13: Limitations Of Use
WARNING: Do not drop the power station. WARNING: When not using the power station, turn off the power and unplug the power cord. WARNING: Do not use the power station and its accessories to connect equipment if there is a defect. DANGER: Never smoke or allow a spark or flame in the vicinity of the power station. -
Page 14: Contact Us
When it comes to energy storage and creation at iTechworld, we take pride in being one of the biggest names in the industry. Based in Australia, we are a family-owned and operated business. With many more innovative products on the horizon we are committed to constantly raising the bar to provide bigger and better benefi ts to all our customers Australia-wide.
