Summary of Contents for iTechworld AU4i
-
Page 2: Table Of Contents
USING AN EXTENSION CABLE ..................4 SAFETY WARNINGS ..................4 PREVENTION OF ELECTROCUTION AND FIRE ..............6 BEFORE USING YOUR AU4i ................. 9 CHECK THE OIL LEVEL ...................... 9 CHECK THE BATTERY CONNECTION ................10 CHECK THE FUEL LEVEL ....................11 STARTING YOUR AU4i ................ -
Page 3: Know Your Au4I

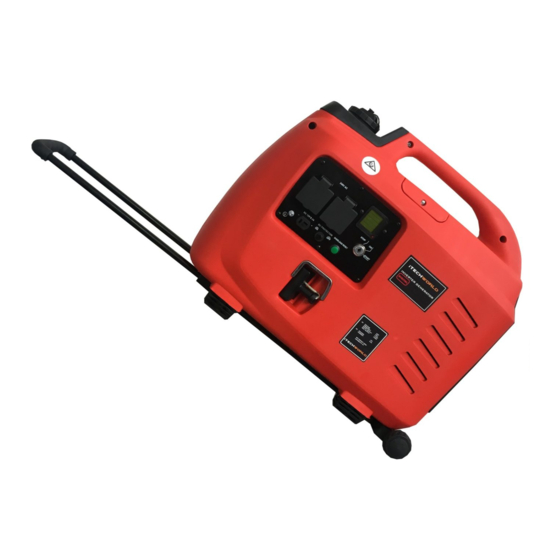

KNOW YOUR AU4i 1. Fuel Cap 6. Easy Roll Wheels 2. Spark Plug Access Panel 7. Oil/ Service/ Air Filter 3. Control Panel Access Panel 4. Fast Recoil Start Cable 8. Fuel Tap 5. Sturdy Rubber Feet 9. Battery Access Panel CONTROL PANEL 1. -
Page 4: Introduction
Please read and understand this manual prior to using your iTechworld AU4i Inverter Generator. Save these instructions and other documents provided for future reference. -
Page 5: Using An Extension Cable
AU4i Inverter Generator to any other person/s, ensure you give them this manual as well. We cannot accept any liability for injury or damage from using your iTechworld AU4i Inverter Generator incorrectly or from failing to follow these instructions. - Page 6 • Do not use in a dusty or sandy environment. Doing say can cause sand and dust to be sucked up into the iTechworld AU4i Inverter Generator • Keep away from rotating parts while the inverter generator is running.
-
Page 7: Prevention Of Electrocution And Fire
PREVENTION OF ELECTROCUTION AND FIRE HAZARD WHAT COULD HAPPEN PREVENTION Improper storage Extension cord can come Using damaged extension cord. into contact with hot engine extension cord can result parts resulting in damage. in electrocution or death. Remove extension cord from inverter generator... - Page 8 gases, or from an electrical fire extinguisher certified spark. to handle fuel fires. Sparks, fire or hot objects. Cigarettes, sparks, fires, or Add fuel to tank in well other hot objects can cause ventilated area. Make fuel or fuel vapors to ignite. sure there are no sources ignition near...
- Page 9 HAZARD WHAT COULD HAPPEN PREVENTION Operation of the inverter All sources of energy include Review and understand generator careless the potential for injury. operating manner. Unsafe operation instructions and warnings maintenance your in this manual. Become inverter generator could familiar with lead to serious injury or operation and controls of...
-
Page 10: Before Using Your Au4I
CAUTION! Ensure your iTechworld AU4i Inverter Generator is on a flat, solid surface and engine is turned off before using. DO NOT use on a sandy or dusty surface. BEFORE USING YOUR AU4i... -
Page 11: Check The Battery Connection
CAUTION! Operating your iTechworld AU4i Inverter Generator with low oil may cause damage. The oil alert system will shut down the iTechworld AU4i Inverter Generator automatically before the oil levels fall under the safety line. Ensuring oil is full will prevent unexpected stoppage. -
Page 12: Check The Fuel Level
CHECK THE FUEL LEVEL Fuel cap 1. Unscrew the fuel cap on the top of your iTechworld AU4i Inverter Generator. 2. Check the petrol level, if low, fill with 95 octane petrol. 3. Refit the fuel cap and tighten until finger tight. -
Page 13: Starting Your Au4I
2. Ensure the fuel tap is in the ‘on’ position. Fuel tap ‘off’ position Fuel tap ‘on’ position NOTE: Switch the fuel tap to the ‘off’ position when the iTechworld AU4i Inverter Generator is not in There are 3 ways to start your iTechworld AU4i Inverter Generator, key start, easy recoil pull start and remote start. - Page 14 CAUTION! Do not let the easy coil starter cable recoil freely. Recoil the cable slowly. Ensure you hold your iTechworld AU4i Inverter Generator tightly when pulling the easy coil starter cable to prevent your generator tilting over. Remote switch ‘off’ position Remote switch ‘on’...
-
Page 15: Using Your Au4I
Failure to do so my cause feedback to the power line and may cause injury to utility workers or other persons. Failure to do so may also cause the iTechworld AU4i Inverter Generator to explode, burn, cause a fire or cause injury. CAUTION! DO NOT overload your iTechworld AU4i Inverter Generator repeatedly, doing so may cause damage to the inverter board. -
Page 16: Using The Ac Power
14v you must immediately disconnect the battery. Failure to do so can result in overcharge and may cause fire or explosion. Connect the alligator clips first and then insert the ‘T’ plug into your ITechworld AU4i Inverter Generator. If charging a car battery, ensure the battery is disconnected from your car. DO NOT start your car while the charging cable is connected. -
Page 17: Digital Display
AU4i Inverter Generator. Once resolved, press the ‘OVERLOAD RESET’ button for 5 seconds and release. Once the button is released, your ITechworld AU4i Inverter Generator will start to produce power and the digital display will show 240v. -
Page 18: Switching Off Your Au4I
If there is an emergency, shut down your ITechworld AU4i Inverter Generator by turning the key to the ‘off’ position. If you started your iTechworld AU4i using the remote control, you CAN turn your generator off quickly by using the remote switch on the CONTROL PANEL. -
Page 19: Maintenance
Servicing your iTechworld AU4i Inverter Generator regularly will help ensure you get the longest life and best performance. WARNING! Ensure your iTechworld AU4i Inverter Generator is turned off before carrying out a service or any repairs. CAUTION! Ensure you use authorised parts. The use of inferior parts can cause... -
Page 20: Changing The Oil
To maintain your warranty, please ensure to follow the maintenance schedule above. This can be done by yourself, a mechanic or contact iTechworld on 1300 483 249. CHANGING THE OIL WARNING! If engine is hot, oil can discharge quickly. Ensure engine is switched off and the fuel tap is in the ‘off’ position. -
Page 21: Air Filter Maintenance
AIR FILTER MAINTENANCE A dirty air filter can block airflow. In order to prevent malfunction, ensure you carry out frequent maintenance. WARNING! DO NOT use petrol or low flash point solvents to clean the generator as they are flammable and explosive under certain conditions. Oil/ Service/ Air Filter access panel Air Filter Cartridge Using the screwdriver provided loosen the 2 screws and open the oil/... -
Page 22: Spark Plug Maintenance
SPARK PLUG MAINTENANCE Spark Plug Access Panel Ignition Lead Using the screwdriver provided, loosen the screw and open the spark plug assess panel. Remove the ignition lead. Using the spark plug socket, unscrew and remove the spark plug. Inspect the spark plug. If there is damage, replace with a new spark plug. -
Page 23: Transporting Your Au4I
Avoid rough roads. If transporting on rough roads is necessary, drain the generator before use. Before storing you iTechworld AU4i Inverter Generator for long periods: • Ensure the storage area is dry and clean. -
Page 24: Troubleshooting
Remove the spark plug, then pour a tablespoon of clean engine oil into the cylinder. Slowly pull the easy recoil pull start 5 times until you feel pressure and then refit the spark plug. This will raise the pistons and help with compression stroke and prevent the engine from rusting. - Page 25 Connected device doesn’t start Digital display shows Digital display shows 240v ‘over’ Return unit to dealer Check if device is faulty Shutdown after display shows ‘over’ or press the reset button to start the generator - Replace your device - Have your device repaired Return unit to dealer DC socket doesn’t work Return unit to dealer...
- Page 26 Power shortage Check the air filter Is there a power shortage? Dirty Clean or replace the air Check if petrol is filter deteriorated Return unit to dealer Change the petrol...
-
Page 27: Specifications
SPECIFICATIONS Dimensions 570 L x 280 W x 490 H Weight 33KG (dry weight) Rated Voltage 240V Rated Output 3300 Watts Maximum Output 3800 Watts AC Output 2 x 15 AMP 240V DC Output 1 x 8.3 AMP 12V... - Page 28 YOUR RECEIPT SHOULD BE RETAINED BY YOU AT ALL TIMES. IN ORDER TO CLAIM UNDER THIS WARRANTY, YOU MUST RETURN THE PRODUCT TO YOUR NEAREST ITECHWORLD (SEE WWW.ITECHWORLD FOR STORE LOCATION) WITH YOUR ITECHWORLD RECIEPT. PRIOR TO RETURNING YOUR PRODUCT FOR WARRANTY PLEASE TELEPHONE OUR CUSTOMER SERVICE HELPLINE Australia 1300 483 249 TO ENSURE A SPEEDY RESPONSE PLEASE HAVE THE RECEIPT NUMBER AND DATE OF PURCHASE AVAILABLE.
- Page 29 281 Great Eastern Highway BURSWOOD WA 6100 1300 483 249...
