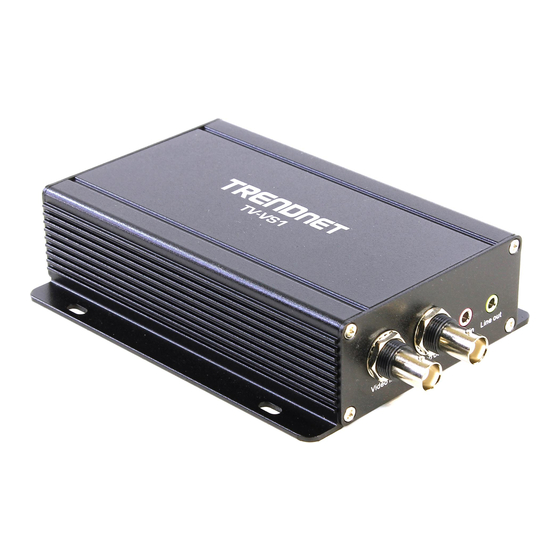

- Page 1 Quick Installation Guide TV-VS1 TV-VS1P 1.01...
-
Page 2: Table Of Contents
Table of Contents English 1. Before You Start 2. Hardware Installation 3. Configure the TV-VS1/TV-VS1P 4. Power over Ethernet (PoE) Installation Troubleshooting Version 05.13.2011... -
Page 3: English
1. Before You Start Package Contents Ÿ TV-VS1/TV-VS1P Ÿ Multi-Language Quick Installation Guide Ÿ CD-ROM (Utility & User's Guide) Ÿ Network Cable (1.5m / 5ft) Ÿ GPIO Connector Ÿ Audio Y Cable (3.5mm Jack) Ÿ Power Adapter (12V DC, 1.5A) Ÿ... -
Page 4: Hardware Installation
2. Hardware Installation 1. Connect the provided network cable from one of your Router's network ports to the Ethernet port on the TV-VS1/TV-VS1P. 2. Connect one end of a BNC cable to the Video IN (Input) connector on the TV-VS1/TV-VS1P. Connect the other end of a BNC cable to the Video OUT (Output) connector on your analog camera. -
Page 5: Configure The Tv-Vs1/Tv-Vs1P
3. Click IP Setup. 4. Follow the Installation Wizard instructions. 5. Once installation is complete click Close. 6. Click the Start (Windows XP) or Windows (Windows 7/Vista ) icon. 7. Go to Programs Ž TRENDnet Ž IPSetup and click IPSetup. - Page 6 Note: By default, the IP setting on the TV-VS1/TV-VS1P is set to DHCP. If you want to give the TV-VS1/TV-VS1P a static IP address, please refer to the User's Guide on the Utility CD-ROM. 8. Double click the Video Encoder to access the browser configuration.
- Page 7 For detailed information regarding the TV-VS1/TV-VS1P ’s configuration and advanced settings, please refer to the Troubleshooting section, User's Guide CD-ROM, or TRENDnet's website at http://www.trendnet.com. Register Your Product To ensure the highest level of customer service and support, please take a moment to www.trendnet.com/register...
-
Page 8: Power Over Ethernet (Poe) Installation
4. Power over Ethernet (PoE) Installation Note: This section is for the TV-VS1P only. Using the TV-VS1P with a PoE switch Power Internet Power Jack Power + Data (PoE) Data TV-VS1P TPE-80WS TEW-639GR Cable/DSL Modem 1. Connect a network cable from the Power over Ethernet switch (e.g. - Page 9 Using the TV-VS1P with a PoE Injector Power Power Internet Jack Power + Data (PoE) Data TV-VS1P TPE-111GI TEW-639GR Cable/DSL Modem 1. Connect one end of the Power Cord to the Injector. Then connect the other end of the Power Cord to an outlet. 2.
-
Page 10: Troubleshooting
10/20Mbps or 100/200Mbps (Half/Full Duplex) LAN port is disconnected/No Ethernet Link Reset Button Hold 15 seconds to reset device to factory defaults. If you still encounter problems or have any questions regarding the TV-VS1/TV-VS1P, please contact TRENDnet's Technical Support Department. - Page 12 Informations générales GPL/LGPL Ce produit TRENDnet comprend un logiciel libre écrit par des programmeurs tiers. Ces codes sont sujet à la GNU General Public License ("GPL" Licence publique générale GNU) ou à la GNU Lesser General Public License ("LGPL" Licence publique générale limitée GNU).
- Page 13 General Public License) ou ao LGPL (GNU Lesser General Public License). Estes códigos são distribuídos SEM GARANTIA e estão sujeitos aos direitos autorais dos desenvolvedores. TRENDnet não presta suporte técnico a estes códigos. Os detalhes do GNU GPL e do LGPL estão no CD-ROM do produto.
- Page 15 Copyright ©2011, All Rights Reserved. TRENDnet.
