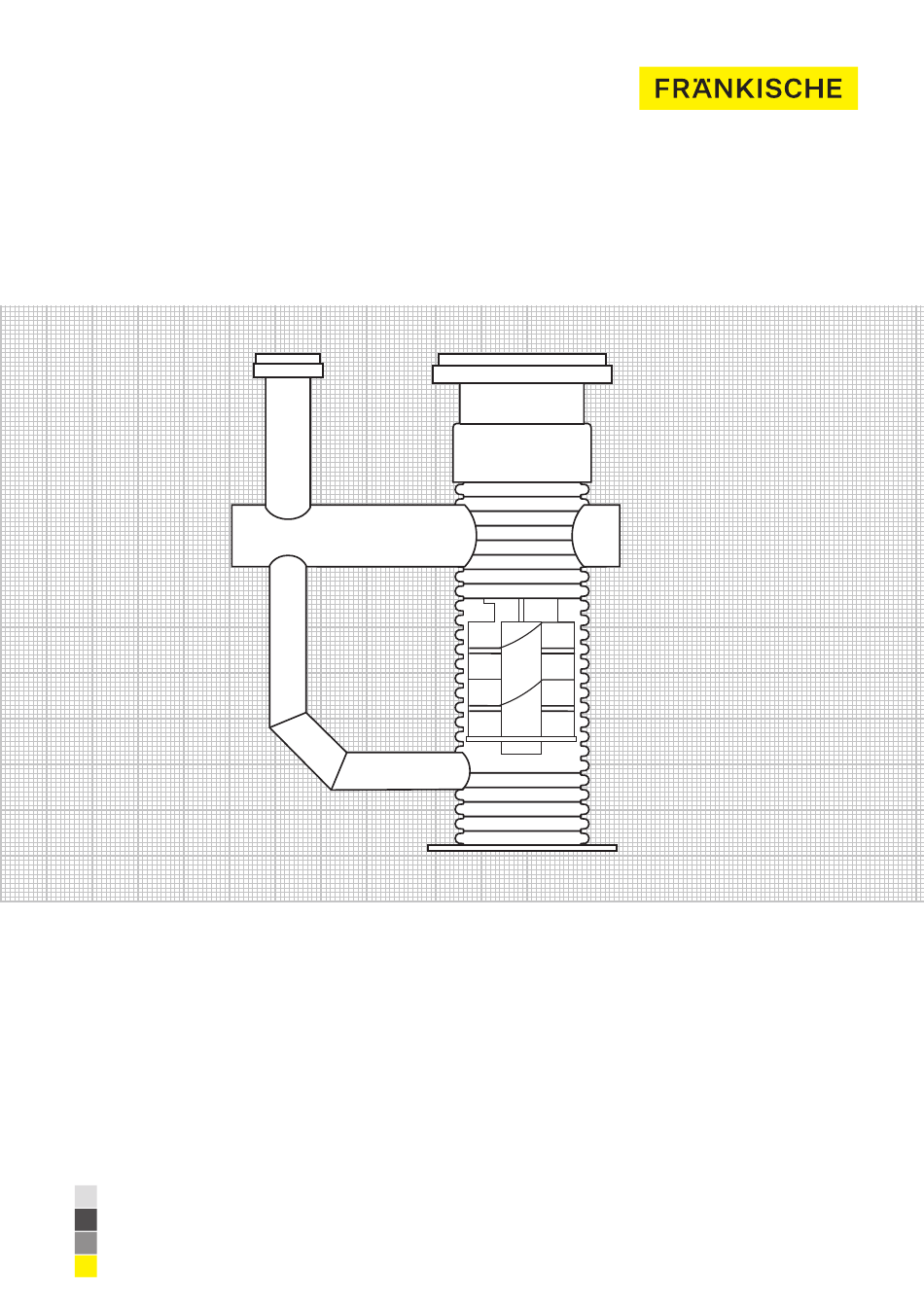

- Page 1 Installation and maintenance manual SediPoint® Stormwater treatment Drainage Systems www.fraenkische.com...
-
Page 2: Contact And Service
IMM SediPoint 1 Contact and service www.fraenkische.com/kontakt-drainage... -
Page 3: Table Of Contents
IMM SediPoint Table of contents 1 Contact and service 2 SediPoint® at a glance 3 System description 3.1 Application 3.2 Function description Please read this installation manual carefully and follow our instructions. 3.3 System description 3.4 Technical data 3.5 Scope of delivery... -
Page 4: Sedipoint® At A Glance
IMM SediPoint 2 SediPoint® at a glance SediPoint with optional connection set Optional: connection set Optional: connection set SediPoint Inlet Sediment collector with Outlet flow separator Mud chamber Immersion pipe Operating pipe with telescopic rod Integrated bypass incl. backwater threshold... -
Page 5: System Description
IMM SediPoint 3 System description 3.1 Application SediPoint is a shaft system for the treatment liquids (oil) from stormwater and reliably of polluted stormwater runoff from, e.g., retains these materials in the system, traffic areas. The sedimentation shaft even in case of spills in dry weather. -
Page 6: System Description
IMM SediPoint 3.3 System description SediPoint is a sedimentation shaft which takes place in the area of the circular event of spills, the immersion pipe also maintains a permanent water level. Coarse flow separators. The flow separator prevents retains floatables and light liquids. -
Page 7: Technical Data
SediPoint 0.15 0.45 * In case of spills in dry weather. 3.5 Scope of delivery Optional accessories BARD ring SediPoint standard design Shaft cover Cone with sealing ring Profile sealing ring SediPoint Optional accessories extension pipe Extension pipe incl. coupling... -
Page 8: Installation
D ≥ 95 % and a SediPoint. If the native soil is not made load-bearing capacity of E ≥ 45 MN/m². up of stoneless, compactable material... -
Page 9: Pre-Assembling The Base Shaft
IMM SediPoint 4.4 Pre-assembling the base shaft The base shaft is delivered as individual sediment collector and cone form a shaft body. Sealing ring, operating pipe, packaging unit and are separated at first. Sealing ring Sediment collector Operating pipe Cone... -
Page 10: Installing The Base Shaft
Ensure upright alignment. sure no backfill material enters the shaft Shaft design depending on the inlet pipe invert depth SediPoint can be adjusted to shallow by using equalisation rings. Extension connecting sewers by cutting the cone pipes are additionally used for connecting to length and to deep connecting sewers sewers with larger depths. - Page 11 Mount cone with sealing ring on base shaft into the second corrugation trough, use lubricant. 4.5.1.b SediPoint with extension pipe and class D cover min. inlet depth of pipe invert of 1.57 m below ground level max. inlet depth of pipe invert of 2.50 m below ground level...
- Page 12 IMM SediPoint 4.5.2 Cutting the extension pipe Cut the pipes to length in the middle of the corrugation trough and align upright to the pipe axis using a fine-toothed saw or other appropriate tools. Remove edges and irregularities on the cutting surfaces with a grater, file or another suitable tool.
-
Page 13: Embedding The Pipe
Class D shaft cover openings and dirt trap acc. to CW 300 DIN 1221 (to be supplied on site) Inlet Bypass DN/OD 315 DN/OD 315 2.00 SediPoint connection set (optional) Inlet DN/OD 200 Example SediPoint outlet height 1.02 – 1.57 m... -
Page 14: Tests Before Backfilling And Impermeability Test
IMM SediPoint 4.8 Tests before backfilling and impermeability test Before backfilling the excavation pit, check the system for proper installation and leak-tightness. The following tests must be performed in particular: Height of the shafts according to design specifications Exact adjustment of the shaft... -
Page 15: Filling The System
IMM SediPoint 4.10.2 Optional: connection set The optional connection set includes a class D shaft cover. free cover bearing. The free bearing material. The professional compaction Class D shaft cover transfers loads from the surface to with appropriate equipment is essential... -
Page 16: Cleaning
IMM SediPoint 5 Cleaning 5.1 General cleaning information In order to ensure long-term smooth In the case of a new system, we Alternatively, cleaning can be performed operation of the system, it is necessary recommend checking the degree of using a high-pressure cleaner and a to carry out cleaning at reasonable intervals. - Page 17 IMM SediPoint Vacuuming with a pump or High-pressure cleaning and vacuuming cleaning/vacuum truck Flush the sediment collector using a Empty the treatment shaft by removing high-pressure cleaner and at the same water and sediment. time drain the flushing water. To do so, direct the wastewater pump or...
-
Page 18: Special Case - Removing The Sediment Collector
ATTENTION the sediment collector when cleaning the sediment collector can be removed When re-inserting the sediment SediPoint. If, in exceptional cases, above using a winch or tripod. collector, the lock pins of the shaft bottom must snap into the recesses of the collector base. -
Page 19: Safety Instructions
IMM SediPoint 6 Safety instructions Staff responsible for installation, assembly, operation, maintenance and repair must have appropriate ATTENTION qualifications required for this kind of work. The builder is responsible for organising in detail authority, responsibility and supervision of staff. The operational safety of the system components supplied is only guaranteed in case of proper installation and correct use. - Page 20 © stock.adobe.com FRÄNKISCHE Rohrwerke Gebr. Kirchner GmbH & Co. KG | Hellinger Str. 1 | 97486 Königsberg / Germany Phone +49 9525 88-0 | Fax +49 9525 88-2413 | marketing@fraenkische.de | www.fraenkische.com EN.90301/1.06.24 | Subject to change without notice | Cat. no. 5000-0908-00 | 06/2024 [DE.90063/4]...
