Pyle PWPBT67 User Manual

Visit Our Website
PWPBT67
In-Wall Bluetooth Audio Receiver
SCAN ME
PyleUSA.com
Features:
•
In-Wall Audio Control Receiver
•
Wall Plate Style Music Control Design
•
Bluetooth for Wireless Audio Streaming Ability
•
Includes (2) Wall Plates (Bluetooth Audio Source & Audio Output)
•
U.S. Standard Electrical Single Gang Box Size
•
Direct Connect & Stream Audio from External Devices
•
Aux (3.5mm) Audio Input Connector Jack
•
RCA (L/R) Audio Output Connector Jacks
•
Dual USB Device Charge Ports
•
Adjustable Rotary Volume Knob
•
Convenient Front Panel Touch Button Controls
(Play/Pause, Previous/Next, BT Pairing)
•
Used for Home Theater, O ce & Business Audio Applications
•
Optional Speaker System Connection via RJ-45/Network Ethernet Jack
•
Requires Connection to External Ampli er / Receiver / Speaker System
•
Decorative Wall Plate Frame Cover Not Included
What's in the Box:
•
Source Control Wall Plate
Technical Specs:
•
Bluetooth Version 4.0, A2DP
•
Compatible with All of Today's Latest Devices (Smartphone, Tablet, Laptop, Computer, etc.)
•
Wireless Audio Range: Up to 50'+ ft.
•
Optional Audio Connection via RJ45 Cable
•
USB Power: (2) DC 5V Ports
•
Power Supply: 15V Power Adapter
WARNING:
Changes or modi cations not expressly approved by the party responsible for compliance could void the user's authority to
operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This unit generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined
by turning the equipment o and on, the user is encouraged to try and correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit di erent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.
www.PyleUSA.com
•

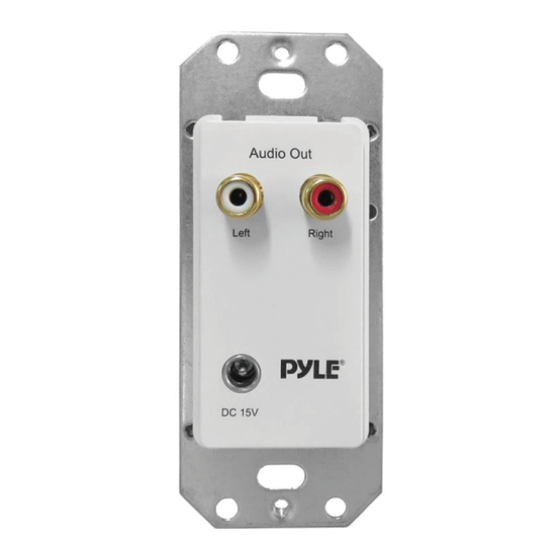

Audio Output Wall Plate
USER GUIDE
•
Wall Power Adapter
