Summary of Contents for Pyle PLTDAND72

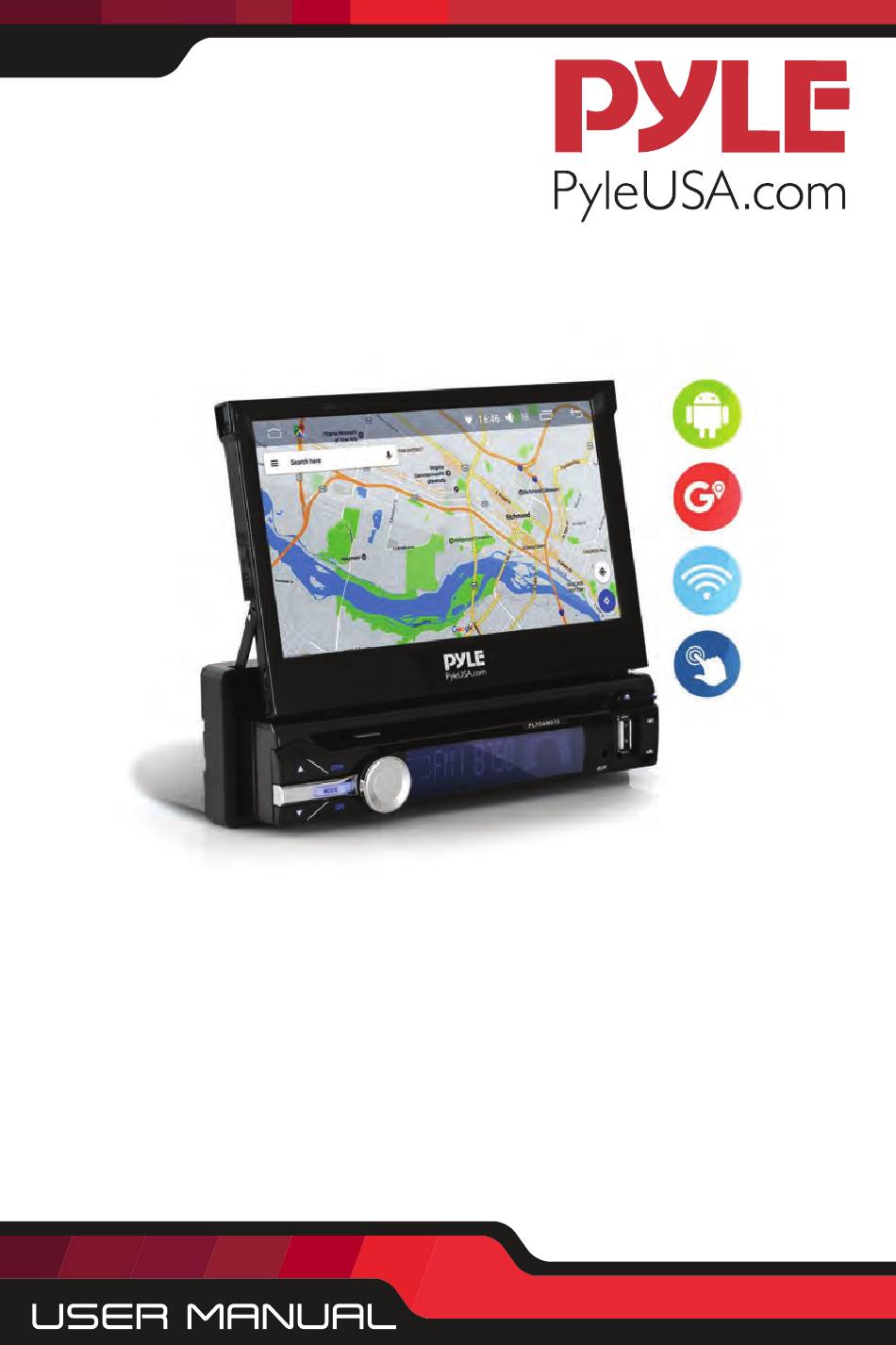

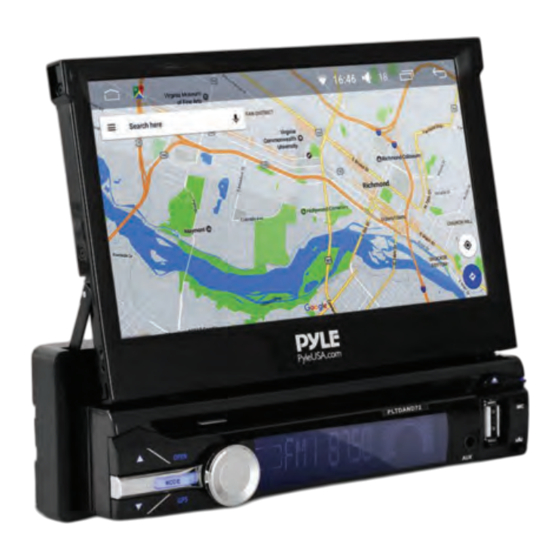

- Page 1 PLTDAND72 Single DIN Android Stereo Receiver System Pop-Out Touchscreen, GPS Navigation, Multimedia Disc Player, Bluetooth & Wi-Fi Streaming...
- Page 2 ANDROID STEREO RECEIVER Please read this manual carefully before you use the unit and save it for future reference. Installation Precaution: 1. This unit is designed for using a 12V negative ground system only. Make sure that your vehicle is NOT on positive ground system before installation.
- Page 3 Main interface – Main Menu After the default machine starts to jump to the main menu page. This page is part of the main display arrangement shortcuts to frequently used functions, and press the space button to pop up the wallpaper settings, the user can make adjustments to the layout of the page according to personal preference.
- Page 4 Radio – Radio Interface Radio broadcasts can accept di erent signal, the user can add your own favorite radio channel included to p1-p6, supports up to six radio stations included stored. This user-friendly than through search, you can quickly listen to their favorite programs. Radio –...
- Page 5 Radio – Add Stations Remark Click the radio edit button to bring up the edit box. Click the edit cursor station information; this cannot be empty, press the keyboard after you nish editing the done button. If you want to change the radio frequency into FM button when nished click the Save button.
- Page 6 Radio- Save Radio Radio Total points ve bands, each band can store 6 stations for information. Users simply press the p1-p6 either a button, you can save the current frequency band under the button. You can also click on the Save button, rst click on the address you want to save then FM, after that click the Save button.
- Page 7 Radio- Radio Search Click the search button automatic station to search operation. After the button is pressed, the radio station will search out all the bands. Press upward search, press frequency was reduced. Press downward search, press frequency was added. Radio - Radio settings Click the radio button set to enter the setting interface.
- Page 8 Radio -a key to restore After setting the radio interface to set up AM, FM sensitivity, or RDS switch or area change, if you nd it very messy and not conducive to our conditioning radio, we can click a Restore button to restore the default settings.
- Page 9 Car Settings- General Settings 1. Any key to booth: Click on any button to power on the touch screen 2. Brake Settings: Video displayed by the handbrake state control 3. Automatically enter the navigation: boot automatically into the navigation function 4.
- Page 10 Car Setting- GPS Information GPS positioning information display basic information about the machine also supports Beidou and GPS dual display module. Auto Sync switch can control the car engine positioning, machine time is synchronized with positioning of the satellite time. Car settings-Factory Settings (Password:3368) Factory settings can be con gured for machine functions into the need to enter the correct password pair, to ensure the normal...
- Page 11 Bluetooth- Bluetooth Button Control Bluetooth- Set interface (Bluetooth Name: Pyle USA Password:0000) Bluetooth settings page displays the name of the car as well as the local Bluetooth pairing password, the user can manually change the information, automatic answer function is when there is an incoming call, the car will automatically answer.
- Page 12 Bluetooth- Synchronize your phone contacts On synchronized phone contacts, rst ensure that the phone and the Bluetooth car machine is connected, the following is a method of synchronizing: 1. Click on the button to download the phone book, on the phone, allow pop-up prompt box and select to access the phone o the car contacts.
- Page 13 Call Log Delete All Records Outgoing Records Call Function Missed Calls Record Bluetooth- Bluetooth Music When the machine and the car phone Bluetooth connection is normal, you can play music through a car phone Bluetooth machine and control by switching songs. PREV function Playback Pause function NEXT function...
- Page 14 Settings – Wireless Network WI-FI: Click WI-FI control switch button to activate the WIFI function. It will appear to the right of the search to nearby resources available Wi-Fi point, click the selected name of the available Wi-Fi connection. Settings- Wireless Network In More options, there are VPN and Tethering and portable hot spot function.
- Page 15 Settings - Equipment Application: In Application option, users can view and manage the use of the vehicle computer memory and internal storage space. Users need to uninstall or stop the external program which has been installed, simply click on the downloaded list and nd the program icon, the pop-up interface will appear then click function button.
- Page 16 Settings – System Date and Time: To set the system time, under normal circumstances to provide time mode to automatically obtain network. About car machine: Mainly display basic information about the machine application, the system has additional software. Steering wheel – Learning Steering Wheel Buttons For the steering wheel with the car keys, if the keys can support learning through the steering wheel custom function, follow these steps: The rst step, hold the steering wheel buttons to learn.
- Page 17 Steering wheel – Learning Steering Wheel Buttons The third step, in the preceding two steps in sequence to learn other buttons, click the Save button after the completion of learning (the same key can only learn a function). Steering Wheel—Function Steering Wheel Buttons Decrease the volume function Power Switch Function Mute function...
- Page 18 Car Standard Setting Custom boot Logo, rst set a picture resolution requires greater than or equal 800x480, SD card or USB in the root directory of the new my car folder, the picture in a folder, inserted into the machines slipped into the car standard set last page to display to export.
- Page 19 Cut Files Delete Files Paste Files Renaming les View le properties Assistant touch – Display Button Assistant oating touch buttons with many shortcuts to the operations, it can be easily carried by a jump function. If you need to display a oating button, click on the touch screen assistant to enter the page, set display button options.
- Page 20 Assistant touch – Buttons to Adjust Transparency In the File Manager, you can view and operate the machine all the les, there is left of the page allows you to select the le directory. If you need to copy or move a le, simply select the le you want to operate, it will appear at the bottom of a row of buttons then select the desired le storage directory and click the corresponding button on the operation.
- Page 21 Singer List button, click this button if you want to know the singer of the song. The album list button Click this button to know song album information’s’ inside the vehicle classi ed display. Music Player - Music Player List Music player - Play Interface Features List interface selected songs you want to play, click to jump to the play- back interface.
- Page 22 Singer List button, click this button if you want to know the singer of the song. The album list button Click this button to know song album information’s’ inside the vehicle classi ed display. Through the main interface or application interface of an application icon, enter the music player interface.
- Page 23 Car Settings - Equalizer Settings Click the button to enter the sound adjust sound mode page, the user can set a preset sound e ect or by manually adjusting the slider to set the value of sound e ects. Click the button to enter the sound eld to adjust the sound eld mode page.
- Page 24 Gallery - The Main Interface Gallery Picture browsing can browse internal storage and external storage format for all pictures in the vehicle unit and can customize the wallpaper. shows that the current directory is in the external memory SD card shows that the current directory is stored internally shows that the current directory is in the external USB storage Gallery - Picture Operation...
- Page 25 Wallpaper function keys Previous image Play/Pause key Next image Rotation function keys www.PyleUSA.com...
- Page 26 Help - Frequency Asked Questions 1. Bluetooth and the Bluetooth car phone paired machine cannot connect? Bluetooth connection is not on, you can turn o the Bluetooth mobile phone, then open and search again before connecting again if not, you can click Rest Bluetooth settings, and after a few seconds, and then pairing connections.
- Page 27 Wiring - Back Panel: GPS ANT G P S 1412 RADIO ANT V ideo Input(Y E LLO W) R earview Input(B lack) AUX Left(R ed) AUX R ight(White) S UB WO O F E R O UT P UT (B lack) 14 12 R C A F ront Left (White) R C A F ront R ight(R ed)
